Siemens 6AG1800-4BA00-7AA0 için nasıl fiyat teklifi alabilirim?

Siemens 6AG1800-4BA00-7AA0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B0388E3F ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6AG1800-4BA00-7AA0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6AG1800-4BA00-7AA0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6AG1800-4BA00-7AA0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

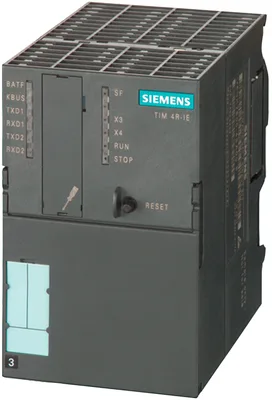

Siemens 6AG1800-4BA00-7AA0

yedek only, no repair. 4R-IE based on 6NH7800-4BA00 ile conformal coating, -25…+70 °C, communications modül için SIMATIC S7-300, S7-400, C7, PC ile two RS-232/RS-485 interfaces için SINAUT communication via classic wide area networks ve two RJ45 interfaces için SINAUT communication via IP-based networks (WAN veya LAN)

SiemensMFR # 6AG1800-4BA00-7AA0SKU # CEY-8EF3B0388E3F

product brand nameSIPLUS

for Industrial Ethernet10... 100 Mbit/s

according to RS 23250... 38400 bit/s

for power supply1

of Industrial Ethernet interfaceRJ45 port

for power supply2-pole plugable terminal block

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG1800-4BA00-7AA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIPLUS

transfer rate

for Industrial Ethernet10... 100 Mbit/s

according to RS 23250... 38400 bit/s

interfaces

number of interfaces / according to Industrial Ethernet2

for external data transmission / according to RS 2322

for power supply1

of Industrial Ethernet interfaceRJ45 port

at interface 1 / for external data transmission9 pin Sub-D-connector, RS232 switchable to RS485

at interface 2 / for external data transmission9-pole D-sub connector, RS232 can be switched to RS485

for power supply2-pole plugable terminal block

C-PLUGVar

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage24 V

supply voltage20,4... 28,8 V

supply voltage / external / at DC / rated value24 V

supply voltage / external / at DC / rated value20,4... 28,8 V

from backplane bus / at DC / at 24 V / maximum0,2 A

from external supply voltage / at DC / at 24 V / maximum0,17 A

power loss [W]4,6 W

product extension / optional / backup batteryVar

type of batteryLithium AA / 3,6 V / 2,3 Ah

typical100 µA

maximum160 µA

ambient conditions

during operation-25... +70 °C

during storage-40... +70 °C

during transport-40... +70 °C

installation altitude / at height above sea level / maximum5000 m

ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)

with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation

chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets

conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine

conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)

conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.

conformity according to EN 60721-3-6Var

conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability

type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1

type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible

product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-300 double width

width80 mm

height125 mm

depth120 mm

net weight0,4 kg

product features, product functions, product components / general

with RS 232 interface / maximum6 m

with RS 485 interface / maximum30 m

performance data / S7 communication

maximum64

with PG connections / maximum2

with OP connections / maximum62

SINAUT ST7 via S7 communicationVar

PG/OP communicationVar

performance data / multi-protocol mode

number of active connections / with multi-protocol mode128

performance data / telecontrol

node stationVar

substationVar

TIM control centerVar

SINAUT ST1 protocolVar

SINAUT ST7 protocolVar

noteTD7onCPU: least 20 KB, actual requirement determined by data volume ve functional scope TD7onTIM: 0 bytes in most favorable case

product feature / buffered message frame memoryVar

for SINAUT ST1 protocol with polling / 11 bitVar

for SINAUT ST1 protocol with spontaneous / 10-bit or 11-bitVar

for SINAUT ST7 protocol with multi-master polling / 10-bitVar

for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitVar

with dedicated line/radio link / with SINAUT ST1 protocolPolling, polling with time slot procedure

with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure, multi-master polling with time slot procedure

with dial-up network / with SINAUT ST1 protocolspontaneous

with dial-up network / with SINAUT ST7 protocolspontaneous

for SINAUT ST1 protocol4

for SINAUT ST7 protocol4

product functions / management, configuration, engineering

requiredSINAUT ST7 ES

for CPU configuring / required / SINAUT TD7 block library for CPUVar

for PG configuring / required / SINAUT ST7 configuration software for PGVar

storage location / of TIM configuration dataon internal TIM flash memory, veya on TIM in optional C‑PLUG, veya on MMC of the S7-300 CPU if TIM installed in S7-300 controller

product functions / security

operating mode / Virtual Private Network (VPN)Var

type of authentication / with Virtual Private Network / PSKVar

with Virtual Private Network MSC / is supportedTCP/IP

product functions / time

product component / hardware real time clockVar

product feature / hardware real time clock w. battery backupVar

accuracy / of the hardware real time clock / per day / maximum4 s
