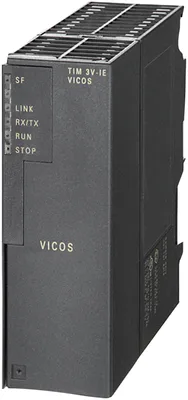

Siemens 6AG1800-3BA00-7AA0

***yedek parça*** SIPLUS NET TIM 3V-IE based on 6NH7800-3BA00 ile conformal coating, -25…+70 °C, communications modül için SIMATIC S7-300 ve C7; ile one RS-232 arayüz için SINAUT communication via a classic wide area network ve an RJ45 arayüz için SINAUT communication via an IP-based network (WAN veya LAN)

SiemensMFR # 6AG1800-3BA00-7AA0SKU # CEY-8EF3B0388E40

product brand nameSIPLUS

for Industrial Ethernet10... 100 Mbit/s

according to RS 23250... 38400 bit/s

for power supply1

of Industrial Ethernet interfaceRJ45 port

for power supply2-pole plugable terminal block

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG1800-3BA00-7AA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIPLUS

transfer rate

for Industrial Ethernet10... 100 Mbit/s

according to RS 23250... 38400 bit/s

interfaces

number of interfaces / according to Industrial Ethernet1

for external data transmission / according to RS 2321

for power supply1

of Industrial Ethernet interfaceRJ45 port

at interface 1 / for external data transmission9 pin Sub-D-connector (RS232)

for power supply2-pole plugable terminal block

C-PLUGYok

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage24 V

supply voltage20,4... 28,8 V

supply voltage / external / at DC / rated value24 V

supply voltage / external / at DC / rated value20,4... 28,8 V

at 5 V5 %

relative positive tolerance / at DC / at 24 V5 %

relative negative tolerance / at DC / at 24 V5 %

from backplane bus / at DC / at 24 V / maximum0,2 A

from external supply voltage / at DC / at 24 V / maximum0,2 A

power loss [W]5,8 W

product extension / optional / backup batteryYok

ambient conditions

during operation-25... +70 °C

during storage-40... +70 °C

during transport-40... +70 °C

installation altitude / at height above sea level / maximum5000 m

ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)

with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation

chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets

conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine

conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)

conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.

conformity according to EN 60721-3-6Var

conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability

type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1

type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible

product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-300 single width

width40 mm

height125 mm

depth120 mm

net weight0,2 kg

product features, product functions, product components / general

per CPU / maximum1

with RS 232 interface / maximum6 m

performance data / S7 communication

maximum12

with PG connections / maximum4

with OP connections / maximum8

SINAUT ST7 via S7 communicationVar

PG/OP communicationVar

performance data / multi-protocol mode

number of active connections / with multi-protocol mode12

performance data / telecontrol

node stationYok

substationVar

TIM control centerVar

SINAUT ST1 protocolVar

SINAUT ST7 protocolVar

noteTD7onCPU: least 20 KB, actual requirement determined by data volume ve functional scope TD7onTIM: 0 bytes in most favorable case

product feature / buffered message frame memoryYok

for SINAUT ST1 protocol with polling / 11 bitVar

for SINAUT ST1 protocol with spontaneous / 10-bit or 11-bitVar

for SINAUT ST7 protocol with multi-master polling / 10-bitVar

for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitVar

with dedicated line/radio link / with SINAUT ST1 protocolPolling, polling with time slot procedure

with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure, multi-master polling with time slot procedure

with dial-up network / with SINAUT ST1 protocolspontaneous

with dial-up network / with SINAUT ST7 protocolspontaneous

for SINAUT ST1 protocol4

for SINAUT ST7 protocol4

product functions / management, configuration, engineering

requiredSINAUT ST7 ES

for CPU configuring / required / SINAUT TD7 block library for CPUVar

for PG configuring / required / SINAUT ST7 configuration software for PGVar

storage location / of TIM configuration dataon the CPU

product functions / security

operating mode / Virtual Private Network (VPN)Var

type of authentication / with Virtual Private Network / PSKVar
