Siemens 6AG1688-3AF37-2AX0

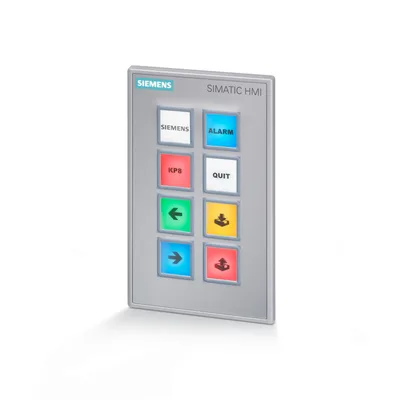

SIPLUS HMI KP8F PN based on 6AV3688-3AF37-0AX0 ile conformal coating, -20...+55 °C, tuş panel, 8 short-stroke switches ile multi-colored LEDs, PROFINET interfaces ile PROFIsafe, 8 DI/DO ve 2 safety DI pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5
Ürün tipi tanımıKP8F PN
based on6AV3688-3AF37-0AX0
With parameterizable keysVar
— user-definable label membrane keysVar
— Number of function keys8
— Number of short-stroke keys8
Ürün Hakkında
SIPLUS HMI KP8F PN based on 6AV3688-3AF37-0AX0 ile conformal coating, -20...+55 °C, tuş panel, 8 short-stroke switches ile multi-colored LEDs, PROFINET interfaces ile PROFIsafe, 8 DI/DO ve 2 safety DI pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5
Siemens 6AG1688-3AF37-2AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıKP8F PN
based on6AV3688-3AF37-0AX0
Control elements
With parameterizable keysVar
Keyboard
— user-definable label membrane keysVar
— Number of function keys8
— Number of short-stroke keys8
Expansions for operator control of the process
DP direct LEDs (LEDs as S7 output I/O)8; Adjustable brightness
Number of color modes for LED5; red, green, blue, yellow, white
Direct keys (keys as S7 input I/O)8
Installation type/mounting
Mounting typeMounting clip
Mounting positiondikey
Rack mountingYok
Front mountingVar; Compatible with Extension Units dimensions
Rail mountingYok
Wall mounting/direct mountingYok
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation30°; To the front/rear
Number of slots for command devices and signaling units0
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V; 24 V can be looped through connector, interrupted when pulled
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,3 A
Dijital girişler
Dijital giriş sayısı8; Total inputs ve outputs maks. 8 ve 1x SIL 2 veya 2x SIL 3
Giriş gerilimi
Nominal değer (DC)24 V
Dijital çıkışlar
Dijital çıkış sayısı8; Maks. 8 inputs ve outputs (toplam)
Short-circuit protectionVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.100 mA
Çıkış gerilimi
Nominal değer (DC)24 V; Non-isolated
Total current of the outputs
Current per channel, max.100 mA
Current per group, max.800 mA
Arayüzler
Number of industrial Ethernet interfaces2; For the construction of lines ve rings without external switch
PROFINET arayüz sayısı2; Incl. switch
Industrial Ethernet
Industrial Ethernet status LED2; Per port
Number of ports of the integrated switch2; Per port
Protokoller
PROFINETVar; also 3rd party PLC
PROFINET IO protokolünü desteklerVar
PROFINET CBAYok
IRTVar
PROFIsafeVar; 1x SIL 3 (two-channel) veya 2x SIL 2 (single-channel) emergency stop sensors
PROFIBUSYok
EtherNet/IPYok
MPIYok
AS-InterfaceYok
EIB/KNXYok
Protokoller (Ethernet)
TCP/IPYok
Ortam yedekliliği
— MRPVar
Diğer protokoller
AS-Interface Safety at WorkYok
CANYok
Data-HighwayYok
DeviceNetYok
DeviceNet SafetyYok
Foundation FieldbusYok
INTERBUSYok
INTERBUS-SafetyYok
Local Operating NetworkYok
MODBUSYok
SafetyBUS pYok
SERCOSYok
SUCOnetYok
other bus systemsYok
Test commissioning functions
Illuminant testVar; During switch on
Key and signal lamp testVar; automatically when switching on
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar; Group 1, measured a distance of 10 m
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontYok
Enclosure Type 4x at the frontVar; Incl. NEMA12
Standartlar, onaylar, sertifikalar
Suitable for safety functionsVar
Marine approval
Germanischer Lloyd (GL)Yok
American Bureau of Shipping (ABS)Yok
Bureau Veritas (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (Class NK)Yok
Polski Rejestr Statkow (PRS)Yok
Çalışma ortam sıcaklığı
min.-20 °C; = Tmin (incl. condensation/frost)
maks.55 °C; = Tmax
Operation (vertical installation)
— For vertical installation, min.-20 °C; = Tmin
— For vertical installation, max.55 °C; = Tmax
Operation (max. tilt angle)
— At maximum tilt angle, min.-20 °C; = Tmin
— At maximum tilt angle, max.45 °C; = Tmax
Operation (vertical installation, portrait format)
— For vertical installation, min.-20 °C; = Tmin
— For vertical installation, max.55 °C; = Tmax
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.-20 °C; = Tmin
— At maximum tilt angle, max.45 °C; = Tmax
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Configuration software
STEP 7 Basic (TIA Portal)Var
STEP 7 Professional (TIA Portal)Var
Process coupling
S7-1200Var; with ET 200pro CPU ve ET 200S CPU
S7-1500Var
S7-200Yok
S7-300/400Var; with F-CPU: STEP 7 V11 SP1 (veya üstü) ve Safety V11 (veya üstü) veya SIMATIC STEP 7 Basic V11 (veya üstü)
LOGO!Yok
WinACVar
SINUMERIKYok
SIMOTIONYok
Allen Bradley (EtherNet/IP)Yok
Allen Bradley (DF1)Yok
Mitsubishi (MC TCP/IP)Yok
Mitsubishi (FX)Yok
OMRON (FINS TCP)Yok
OMRON (Host Link)Yok
Modicon (Modbus TCP/IP)Yok
Modicon (Modbus RTU)Yok
Mechanics/material
PlasticVar
AluminumYok
Stainless steelYok
Service life
Short-stroke keys (in switching cycles)1.500.000
LEDs (ON period)100 %
Ölçüler
Width of the housing front98 mm
Height of housing front155 mm
Mounting cutout, width67,7 mm; Maks. thickness of mounting plate 2 - 6 mm
Mounting cutout, height129,7 mm
mounting depth49 mm; Incl. angled SIMATIC Ethernet connector
Ağırlık
Weight (without packaging)280 g
Aksesuarlar 2
Siemens 6AG1688-3AF37-2AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
