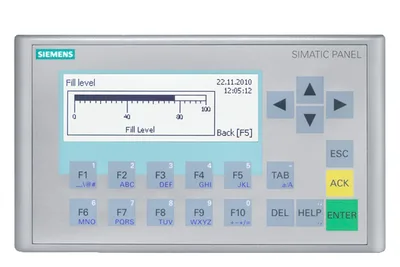

Siemens 6AG1647-0AH11-2AX1
SIPLUS HMI KP300 temel mono PN, based on 6AV6647-0AH11-3AX1 ile conformal coating, -25...+60 °C
Ürün tipi tanımıKP300 Basic mono PN
based on6AV6647-0AH11-3AX1
Design of displayFSTN
Screen diagonal3,6 in
Display width87 mm
Display height31 mm
Ürün Hakkında
SIPLUS HMI KP300 temel mono PN, based on 6AV6647-0AH11-3AX1 ile conformal coating, -25...+60 °C
Siemens 6AG1647-0AH11-2AX1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıKP300 Basic mono PN
based on6AV6647-0AH11-3AX1
Display
Design of displayFSTN
Screen diagonal3,6 in
Display width87 mm
Display height31 mm
Number of colors4; backlit display only (white, red, green, yellow)
Resolution (pixels)
Horizontal image resolution240 pixel
Vertical image resolution80 pixel
Backlighting
MTBF backlighting (at 25 °C)50.000 h
Backlight dimmableYok
Keyboard
— Number of function keys10
— Number of function keys with LEDs0
Keys with LEDYok
System keysVar
Numeric keyboardVar; Keyboard
alphanumeric keyboardVar; Keyboard
Touch operation
Design as touch screenYok; without
Installation type/mounting
Mounting positiondikey
Rack mountingYok
Wall mounting/direct mountingYok
Mounting in portrait format possibleYok
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,1 A
Starting current inrush I²t0,5 A²·s
Power
Active power input, typ.3 W
Processor
Processor typeRISC 32 bit
Storage
FlashVar
RAMVar
Memory available for user data1 MB
Type of output
BuzzerYok
SpeakerYok
Saat
Donanım saati (gerçek zamanlı)Yok
Software clockVar
retentiveYok
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces1
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of RS 232 interfaces0
Number of USB interfaces0
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesYok
Industrial Ethernet
Industrial Ethernet status LED2
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerYok
IRTYok
PROFIBUSYok
EtherNet/IPVar
MPIYok
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPYok
HTMLYok
Ortam yedekliliği
— MRPYok
Diğer protokoller
CANYok
MODBUSVar; Modicon (MODBUS TCP/IP)
Diagnoses
Diagnostic information readableYok
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Operation (vertical installation)
— For vertical installation, min.-25 °C; = Tmin
— For vertical installation, max.60 °C; = Tmax
Operation (max. tilt angle)
— At maximum tilt angle, min.-25 °C; = Tmin
— At maximum tilt angle, max.40 °C; = Tmax
Depolama/taşıma ortam sıcaklığı
min.-25 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning when condensation present), yatay dikey mounting position
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Operating systems
proprietaryVar
pre-installed operating system
Windows CEYok
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Var; via dahili WinCC Basic (TIA Portal)
STEP 7 Professional (TIA Portal)Var; via dahili WinCC Basic (TIA Portal)
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Var
WinCC Comfort (TIA Portal)Var
WinCC Advanced (TIA Portal)Var
WinCC Professional (TIA Portal)Var
Online languages
Number of online/runtime languages5
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Applications/optionsyok
Web browserYok
SIMATIC WinCC Sm@rtServerYok
time-controlledYok
task-controlledVar
Help systemVar
Number of characters per info text320
Message system
Number of alarm classes32
Bit messagesVar
— Number of bit messages200
Analog messagesVar
— Number of analog messages15
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yok
Number of characters per message80
Number of process values per message8
Message indicatorVar
— Number of entries256
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes5
Data records per recipe20
Entries per data record20
Size of internal recipe memory40 kB
Recipe memory expandableYok
Variables
Number of variables per device250
Number of variables per screen30
Limit valuesVar
MultiplexingVar
StructuresYok
ArraysVar
Images
Number of configurable images50
Permanent window/defaultVar
Global imageVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Number of objects per image30
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen5
Alarm viewVar
Trend viewVar
User viewVar
Status/controlYok
Sm@rtClient viewYok
Recipe viewVar
f(x) trend viewYok
System diagnostics viewYok
Media PlayerYok
Bar graphsVar
SlidersYok
Pointer instrumentsYok
Analog/digital clockYok
Lists
Number of text lists per project150
Number of entries per text list30
Number of graphics lists per project100
Number of entries per graphics list30
Archiving
Number of archives per device0
Security
Number of user groups50
Number of user rights32
Kullanıcı sayısı50
Password export/importYok
SIMATIC LogonYok
Character sets
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPYok
USBYok
EthernetVar
using external storage mediumYok
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar
SINUMERIKYok
SIMOTIONYok
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Yok
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Yok
OMRON (FINS TCP)Yok
OMRON (Host Link)Yok
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Yok
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyYok
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterYok
SIMATIC HMI MM memory card: Multi Media CardYok
SIMATIC HMI SD memory card: Secure Digital memory cardYok
USB memoryYok
Mechanics/material
PlasticVar
AluminumYok
Stainless steelYok
Ölçüler
Width of the housing front165 mm
Height of housing front97 mm
Mounting cutout, width149 mm
Mounting cutout, height82 mm
mounting depth30 mm
Ağırlık
Weight (without packaging)0,25 kg
Weight (with packaging)0,38 kg
