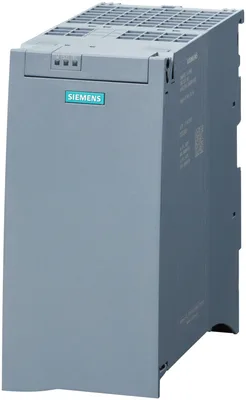

Siemens 6AG1543-1MX00-7XE0
SIPLUS TIM 1531 IRC based on 6GK7543-1MX00-0XE0 ile conformal coating, -40…+70 °C, communications modül için SIMATIC S7-1500, S7-400, S7-300 ile SINAUT ST7 ile three RJ45 interfaces için communication via IP-based networks (WAN / LAN) ve an RS-232/RS-485 arayüz için Communications via classic wide area networks
product brand nameSIPLUS
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 100 Mbit/s
at the 3rd interface10... 100 Mbit/s
according to RS 232300... 115200 bit/s
for power supply1
Ürün Hakkında
SIPLUS TIM 1531 IRC based on 6GK7543-1MX00-0XE0 ile conformal coating, -40…+70 °C, communications modül için SIMATIC S7-1500, S7-400, S7-300 ile SINAUT ST7 ile three RJ45 interfaces için communication via IP-based networks (WAN / LAN) ve an RS-232/RS-485 arayüz için Communications via classic wide area networks
Siemens 6AG1543-1MX00-7XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
transfer rate
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 100 Mbit/s
at the 3rd interface10... 100 Mbit/s
according to RS 232300... 115200 bit/s
interfaces
number of interfaces / according to Industrial Ethernet3
for external data transmission / according to RS 2321
for power supply1
for memory cards1
of Industrial Ethernet interfaceRJ45 port
at interface 1 / for external data transmission9 pin Sub-D-connector, RS232 switchable to RS485
for power supply2-pole plugable terminal block
of the memory cardSD 1,0, SD 1,1, SDHC, Siemens SMC
storage capacity / of the memory card / maximum32 Gibyte
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage20,4... 28,8 V
supply voltage / external / at DC / rated value24 V
supply voltage / external / at DC / rated value20,4... 28,8 V
from external supply voltage / at DC / at 24 V / typical0,15 A
from external supply voltage / at DC / at 24 V / maximum0,3 A
in update mode / typical3,9 W
in communication mode / typical3,9 W
product extension / optional / backup batteryYok
ambient conditions
for vertical installation / during operation-40... +50 °C
for horizontally arranged busbars / during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1500 double-wide
width70 mm
height147 mm
depth129 mm
net weight0,525 kg
35 mm DIN-rail mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingVar
product features, product functions, product components / general
DynDNS clientYok
noteNumber of TIM per S7-1500: 1
with RS 232 interface / maximum6 m
with RS 485 interface / maximum30 m
performance data / S7 communication
maximum132; only via LAN
with PG connections / maximum4
with PG/OP connections / maximum4
with OP connections / maximum4
of SIMATIC communication / as serverVar
SINAUT ST7 via S7 communicationVar
PG/OP communicationVar
performance data / IT functions
as server / by means of HTTP / maximum2
as server / by means of HTTPS / maximum2; 2 per Ethernet interface
as email client / maximum1
performance data / telecontrol
node stationVar
substationVar
TIM control centerVar
control center connectionSystems with ST7, DNP3 ve IEC 60870-5-101/104 protocol
by means of a permanent connectionSystems with ST7, DNP3 ve IEC 60870-5-101/104 protocol
DNP3Var
IEC 60870-5Var
SINAUT ST1 protocolYok
SINAUT ST7 protocolVar
Modbus RTUYok
product function / data buffering if connection is abortedVar; 100000 data telegrams (ST7) veya 250000 events (IEC 60870-5 / DNP3)
number of data points per device / maximum3000
for Ethernet / maximum4
with RS 232 interface / maximum4
product feature / buffered message frame memoryVar
for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitVar
with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure
with dial-up network / with SINAUT ST7 protocolspontaneous
for SINAUT ST7 protocol4
performance data / teleservice
diagnostics function / online diagnostics with SIMATIC STEP 7Var
program download with SIMATIC STEP 7Var
remote firmware updateVar
remote configurationVar
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
SNMP v3Var
DCPVar
LLDPVar
requiredSTEP 7 Professional V14 SP1 (TIA Portal) veya üstü
for CPU configuring / required / SINAUT TD7 block library for CPUYok
for PG configuring / required / SINAUT ST7 configuration software for PGYok
storage location / of TIM configuration dataFlash veya SD card of the TIM 1531 IRC
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
I&M2 - installation dateVar
I&M3 - commentVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / routing
service / routing / noteIP routing up to 1 Mbps
static IP routingVar
static IP routing IPv6Var
dynamic IP routingYok
dynamic IP routing IPv6Yok
RIP v1Yok
RIPv2Yok
RIPnG for IPv6Yok
OSPFv2Yok
OSPFv3 for IPv6Yok
VRRPYok
VRRP for IPv6Yok
BGPYok
PPPYok
PPoE via DSLYok
product functions / security
MSC client via GPRS modem with MSC capabilityVar
is supported / MSC protocolVar
with Virtual Private Network MSC / is supportedTCP/IP
key length / for MSC / with Virtual Private Network128 bit
as MSC client / with VPN connection1
as MSC server / with VPN connection127
product functions / time
product function / SICLOCK supportYok
product function / pass on time synchronizationVar
NTPVar
NTP (secure)Var
product component / hardware real time clockYok
product feature / hardware real time clock w. battery backupYok
from NTP-serverVar
from GPS-signalYok
from control centerVar
from mobile network providerYok
PCYok
manual settingYok
product functions / position detection
position detection with GPSYok
pass on position dataYok
