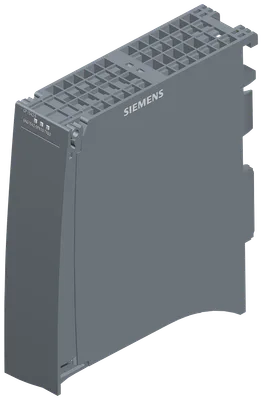

Siemens 6AG1542-5FX10-7XE0
SIPLUS S7-1500 CP 1542-5 based on 6GK7542-5FX10-0XE0 ile conformal coating, -40...+70 °C, startup -25 °C communications processor için için bağlantı of S7-1500 to PROFIBUS DP, DP-V1 master veya DP slave, S7- ve PG/OP communication, time synchronization, diagnostics, reduced quantity structure
product brand nameSIPLUS
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
power loss [W]3 W
during storage-40... +70 °C
Ürün Hakkında
SIPLUS S7-1500 CP 1542-5 based on 6GK7542-5FX10-0XE0 ile conformal coating, -40...+70 °C, startup -25 °C communications processor için için bağlantı of S7-1500 to PROFIBUS DP, DP-V1 master veya DP slave, S7- ve PG/OP communication, time synchronization, diagnostics, reduced quantity structure
Siemens 6AG1542-5FX10-7XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
transfer rate
at the 1st interface / according to PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet0
at the 1st interface / according to PROFIBUS1
at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
at 15 V3 %
from backplane bus / at DC / at 15 V / typical0,2 A
power loss [W]3 W
ambient conditions
for vertical installation / during operation-40... +40 °C
for horizontally arranged busbars / during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1500 single width
width35 mm
height142 mm
depth129 mm
net weight0,4 kg
S7-1500 rail mountingVar
product features, product functions, product components / general
per CPU / maximum8
notedepending on CPU type
performance data / PROFIBUS DP
DPV1Var
on DP master / operable32
of the address range of the inputs / as DP master / total2048 bayt
of the address range of the outputs / as DP master / total2048 bayt
of the address range of the inputs / per DP device244 bayt
of the address range of the outputs / per DP device244 bayt
DPV0Var
DPV1Var
of the address range of the inputs / as DP device / total240 bayt
of the address range of the outputs / as DP device / total240 bayt
performance data / S7 communication
maximum16; depending on the system upper limit
performance data / multi-protocol mode
number of active connections / with multi-protocol mode16
performance data / telecontrol
TCP/IPYok
product functions / management, configuration, engineering
requiredSTEP 7 Professional V18 (TIA Portal) veya üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
product function / web-based diagnosticsVar; via S7-1500 CPU
product functions / time
product function / pass on time synchronizationVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total115,52 kg
during manufacturing21,24 kg
during operation93,93 kg
after end of life0,35 kg
