Siemens 6AG1542-5DX10-7XE0 için nasıl fiyat teklifi alabilirim?

Siemens 6AG1542-5DX10-7XE0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSLGYFMC3EQ5V ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6AG1542-5DX10-7XE0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6AG1542-5DX10-7XE0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6AG1542-5DX10-7XE0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

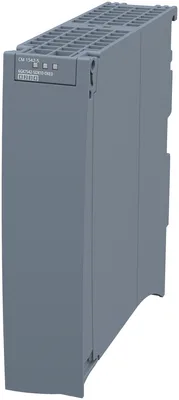

Siemens 6AG1542-5DX10-7XE0

SIPLUS S7-1500 CM 1542-5 based on 6GK7542-5DX10-0XE0 ile conformal coating, -40…+70 °C, başlatma up -25 °C, communications modül için bağlantı of S7-1500 to PROFIBUS DP as DP master ve DP cihaz: S7 ve PG/OP communication, time-of-day synchronization, diagnostics

SiemensMFR # 6AG1542-5DX10-7XE0SKU # YLSLGYFMC3EQ5V

product brand nameSIPLUS

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus15 V

at 15 V3 %

power loss [W]3 W

during storage-40... +70 °C

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG1542-5DX10-7XE0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIPLUS

transfer rate

at the 1st interface / according to PROFIBUS9,6 kbit/s... 12 Mbit/s

interfaces

number of interfaces / according to Industrial Ethernet0

at the 1st interface / according to PROFIBUS1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus15 V

at 15 V3 %

from backplane bus / at DC / at 15 V / typical0,2 A

power loss [W]3 W

ambient conditions

for vertical installation / during operation-40... +40 °C

for horizontally arranged busbars / during operation-40... +70 °C

during storage-40... +70 °C

during transport-40... +70 °C

noteStartup @ -25 °C

installation altitude / at height above sea level / maximum5000 m

ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)

with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation

chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets

conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine

conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)

conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.

conformity according to EN 60721-3-6Var

conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability

type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1

type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible

product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-1500 single width

width35 mm

height142 mm

depth129 mm

net weight0,4 kg

S7-1500 rail mountingVar

product features, product functions, product components / general

per CPU / maximum8

notedepending on CPU type

performance data / open communication

number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum30

as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum240 bayt

performance data / PROFIBUS DP

DPV1Var

on DP master / operable125

of the address range of the inputs / as DP master / total8192 bayt

of the address range of the outputs / as DP master / total8192 bayt

of the address range of the inputs / per DP device244 bayt

of the address range of the outputs / per DP device244 bayt

DPV0Var

DPV1Var

of the address range of the inputs / as DP device / total240 bayt

of the address range of the outputs / as DP device / total240 bayt

performance data / S7 communication

maximum48; depending on the system upper limit

performance data / multi-protocol mode

number of active connections / with multi-protocol mode48

performance data / telecontrol

TCP/IPYok

product functions / management, configuration, engineering

requiredSTEP 7 Professional V18 (TIA Portal) veya üstü

I&M0 - device-specific informationVar

I&M1 - higher level designation/location designationVar

product functions / diagnostics

product function / web-based diagnosticsVar; via S7-1500 CPU

product functions / time

product function / pass on time synchronizationVar

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationVar

total115,54 kg

during manufacturing21,26 kg

during operation93,93 kg

after end of life0,35 kg

Aksesuarlar 13

Siemens 6AG1542-5DX10-7XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7902-1AB00-0AA0	Aksesuar · Cable
6ES7902-1AC00-0AA0	Aksesuar · Cable
6ES7902-1AD00-0AA0	Aksesuar · Cable
6ES7592-2AX00-0AA0	Aksesuar · label
6AG1590-0BL00-7AA0	Aksesuar · Rack
6AG1590-0AA00-7AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
