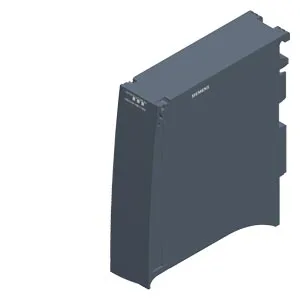

Siemens 6AG1540-1AB01-7AA0
SIPLUS S7-1500 CM PTP RS422/485 BA based on 6ES7540-1AB01-0AA0 ile conformal coating, -40...+70 °C RS422/485 BA communications modül için serial bağlantı RS-422 ve RS-485 freeport, 3964(R), USS, 19200 bit/s, 15-pin D-sub socket 15-pin D-sub socket
Ürün tipi tanımıCM PtP RS 422 / 485 BA
based on6ES7540-1AB01-0AA0
I&M dataVar; I&M 0
Fast startupVar
Rail mountingVar; S7-1500 mounting rail
Akım tüketimi (nominal değer)43 mA; From the backplane bus
Ürün Hakkında
SIPLUS S7-1500 CM PTP RS422/485 BA based on 6ES7540-1AB01-0AA0 ile conformal coating, -40...+70 °C RS422/485 BA communications modül için serial bağlantı RS-422 ve RS-485 freeport, 3964(R), USS, 19200 bit/s, 15-pin D-sub socket 15-pin D-sub socket
Siemens 6AG1540-1AB01-7AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCM PtP RS 422 / 485 BA
based on6ES7540-1AB01-0AA0
Product function
I&M dataVar; I&M 0
Fast startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Installation type/mounting
Rail mountingVar; S7-1500 mounting rail
Giriş akımı
Akım tüketimi (nominal değer)43 mA; From the backplane bus
Power
Power consumption from the backplane bus0,65 W
Güç kaybı
Güç kaybı, tipik0,6 W
Address space per module
Inputs8 bayt; performance mode: 32 bayt
Outputs0 bayt; performance mode: 32 bayt
RS 485
İletim hızı, maks.19,2 kbit/s
Cable length, max.1.200 m
RS 422
İletim hızı, maks.19,2 kbit/s
Cable length, max.1.200 m
4-wire full duplex connectionVar
4-wire multipoint connectionYok
Freeport
— Telegram length, max.1 kB
— Bits per character7 veya 8
— Number of stop bits1 veya 2 bit
— ParityYok, even, odd, always 1, always 0, any
3964 (R)
— Telegram length, max.1 kB
— Bits per character7 veya 8
— Number of stop bits1 veya 2 bit
— ParityYok, even, odd, always 1, always 0, any
Telegram buffer
Buffer memory for telegrams2 kB
Number of telegrams which can be buffered255
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Hardware interruptYok
Diagnoses
Wire breakVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Receive RxDVar; Yellow LED
Transmit TxDVar; Yellow LED
Potential separation
between backplane bus and interfaceVar
Isolation
Isolation tested with707 V DC (type test)
Security
signed firmware updateVar
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.40 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Decentralized operation
to SIMATIC S7-300Var
to SIMATIC S7-400Var
to SIMATIC S7-1500Var
to standard PROFINET controllerVar
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik127 mm
Ağırlık
Ağırlık, yaklaşık0,22 kg
