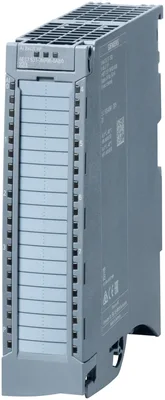

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6AG1531-7NF00-7AB0

SIPLUS S7-1500 AI 8xU/I HF based on 6ES7531-7NF00-0AB0 ile conformal coating, -40…+70 °C, başlatma up -25 °C, analog giriş modül 16-bit resolution, accuracy 0,1%, 8 channels in groups of 1, common mode gerilim: 30 V AC/60 V DC, diagnostics; hardware interrupts; dahil infeed element, shielding braket ve shield klemens

SiemensMFR # 6AG1531-7NF00-7AB0SKU # YLS3GXJ8GCXVGPK

Ürün tipi tanımıAI 8xU/I HF

FW update possibleVar

based on6ES7531-7NF00-0AB0

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Prioritized startupVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG1531-7NF00-7AB0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

Ürün tipi tanımıAI 8xU/I HF

FW update possibleVar

based on6ES7531-7NF00-0AB0

Product function

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Prioritized startupVar

Measuring range scalableYok

Scalable measured valuesVar

Adjustment of measuring rangeVar

Mühendislik aracı

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Operating mode

OversamplingYok

MSIVar

CiR - Configuration in RUN

Reparameterization possible in RUNVar

Calibration possible in RUNVar

Besleme gerilimi

Nominal değer (DC)24 V

İzin verilen aralık, alt sınır (DC)19,2 V

İzin verilen aralık, üst sınır (DC)28,8 V

Ters polarite korumasıVar

Giriş akımı

Akım tüketimi, maks.50 mA; with 24 V DC supply

Power

Power consumption from the backplane bus0,85 W

Güç kaybı

Güç kaybı, tipik1,9 W

Analog girişler

Analog giriş sayısı8

For current measurement8

For voltage measurement8

permissible input voltage for voltage input (destruction limit), max.28,8 V

permissible input current for current input (destruction limit), max.40 mA

Giriş aralıkları (nominal değerler), gerilim

0 to +5 VYok

0 … +10 VYok

1 V to 5 VVar

— Input resistance (1 V to 5 V)100 kΩ

-10 V to +10 VVar

— Input resistance (-10 V to +10 V)100 kΩ

-2.5 V to +2.5 VVar

— Input resistance (-2.5 V to +2.5 V)100 kΩ

-25 mV to +25 mVYok

-250 mV to +250 mVYok

-5 V to +5 VVar

— Input resistance (-5 V to +5 V)100 kΩ

-50 mV to +50 mVYok

-500 mV to +500 mVYok

-80 mV to +80 mVYok

Input ranges (rated values), currents

0 … 20 mAVar

— Input resistance (0 to 20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC

-20 mA to +20 mAVar

— Input resistance (-20 mA to +20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC

4 mA to 20 mAVar

— Input resistance (4 mA to 20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC

Input ranges (rated values), thermocouples

Type BYok

Type CYok

Type EYok

Type JYok

Type KYok

Type LYok

Type NYok

Type RYok

Type SYok

Type TYok

Type TXK/TXK(L) to GOSTYok

Input ranges (rated values), resistance thermometer

Cu 10Yok

Cu 10 according to GOSTYok

Cu 50Yok

Cu 50 according to GOSTYok

Cu 100Yok

Cu 100 according to GOSTYok

Ni 10Yok

Ni 10 according to GOSTYok

Ni 100Yok

Ni 100 according to GOSTYok

Ni 1000Yok

Ni 1000 according to GOSTYok

LG-Ni 1000Yok

Ni 120Yok

Ni 120 according to GOSTYok

Ni 200Yok

Ni 200 according to GOSTYok

Ni 500Yok

Ni 500 according to GOSTYok

Pt 10Yok

Pt 10 according to GOSTYok

Pt 50Yok

Pt 50 according to GOSTYok

Pt 100Yok

Pt 100 according to GOSTYok

Pt 1000Yok

Pt 1000 according to GOSTYok

Pt 200Yok

Pt 200 according to GOSTYok

Pt 500Yok

Pt 500 according to GOSTYok

Input ranges (rated values), resistors

0 to 150 ohmsYok

0 to 300 ohmsYok

0 to 600 ohmsYok

0 to 3000 ohmsYok

0 to 6000 ohmsYok

PTCYok

Kablo uzunluğu

Ekranlı, maks.800 m

Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük

Aşım dahil çözünürlük (işaret biti dahil), maks.24 bit; When using the function "Scaling of the measured values" veya "Measuring range adaptation" (32 bit REAL format); 16 bit when using the S7 format (16 bit INTEGER)

Entegrasyon süresi, parametrelenebilirVar

Integration time (ms)Fast mode: 2,5 / 16,67 / 20 / 100 ms, standard mode: 7,5 / 50 / 60 / 300 ms

Basic conversion time, including integration time (ms)Fast mode: 4 / 18 / 22 / 102 ms; Standard mode: 9 / 52 / 62 / 302 ms

Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 / 10 Hz

Basic execution time of the module (all channels released)Corresponds to the channel with the highest basic conversion time

Smoothing of measured values

parameterizableVar

Step: NoneVar

Step: lowVar

Step: MediumVar

Step: HighVar

Connection of signal encoders

for voltage measurementVar

for current measurement as 2-wire transducerVar; with external transmitter supply

for current measurement as 4-wire transducerVar

for resistance measurement with two-wire connectionYok

for resistance measurement with three-wire connectionYok

for resistance measurement with four-wire connectionYok

Errors/accuracies

Linearity error (relative to input range), (+/-)0,04 %

Temperature error (relative to input range), (+/-)0,01 %/K

Crosstalk between the inputs, max.-80 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,02 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0,2 %

Current, relative to input range, (+/-)0,2 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0,05 %

Current, relative to input range, (+/-)0,05 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.80 dB; in the Standard operating mode, 40 dB in the Fast operating mode

Common mode voltage, max.60 V DC/30 V AC

Common mode interference, min.80 dB

Interrupts/diagnostics/status information

Diagnostics functionVar

Alarms

Diagnostic alarmVar

Limit value alarmVar; two upper ve two lower limit values in her biri case

Diagnoses

Monitoring the supply voltageVar

Wire breakVar; only for 1... 5 V ve 4... 20 mA

Overflow/UnderflowVar

Tanılama gösterge LED’i

RUN LEDVar; green LED

ERROR LED’iVar; red LED

Monitoring of the supply voltage (PWR-LED)Var; green LED

Channel status displayVar; green LED

for channel diagnosticsVar; red LED

for module diagnosticsVar; red LED

Potential separation channels

Kanallar arasıVar

Kanallar arası, grup başına1

between the channels and backplane busVar

between the channels and the power supply of the electronicsVar

Permissible potential difference

between different circuits60 V DC/30 V AC; insulation rated for 120 V AC basic insulation: between the channels ve the supply voltage L+; between the channels ve the backplane bus; between the channels

Isolation

Isolation tested with2.000 V DC between the channels ve the supply voltage L+; 2.000 V DC between the channels ve the backplane bus; 2.000 V DC between the channels; 707 V DC (type test) between the supply voltage L+ ve the backplane bus

Ekolojik ayak izi

Çevresel ürün beyanıVar

Küresel ısınma potansiyeli

— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]38,6 kg

— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]14,4 kg

— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]24,6 kg

— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.44 kg

Security

signed firmware updateYok

data integrityYok

Çalışma ortam sıcaklığı

Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)

Yatay montaj, maks.70 °C; = Tmax

Dikey montaj, min.-40 °C; = Tmin

Dikey montaj, maks.40 °C; = Tmax

Deniz seviyesine göre çalışma yüksekliği

Installation altitude above sea level, max.5.000 m

Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)

Bağıl nem

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine

— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine

— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Var; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A

Ölçüler

Genişlik35 mm

Yükseklik147 mm

Derinlik129 mm

Ağırlık

Ağırlık, yaklaşık280 g

Aksesuarlar 12

Siemens 6AG1531-7NF00-7AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7592-2AX00-0AA0	Aksesuar · label
6AG1590-0BL00-7AA0	Aksesuar · Rack
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7592-1BM00-0XB0	Aksesuar · Connection plug
6AG1590-0AA00-7AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
