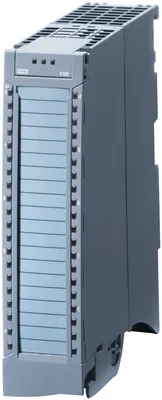

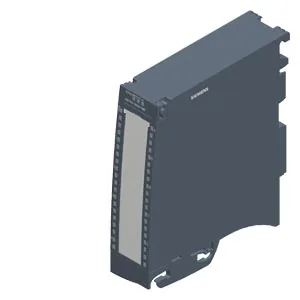

Siemens 6AG1531-7KF00-7AB0
SIPLUS S7-1500 AI 8xU/I/RTD/TC based on 6ES7531-7KF00-0AB0 ile conformal coating, -40…+70 °C, analog giriş modül 16-bit resolution, accuracy 0,3%, 8 channels in groups of 8, 4 channels için RTD measurement, common mode gerilim 10 V; diagnostics; hardware interrupts dahil infeed element, shielding braket ve shield klemens
Ürün tipi tanımıAI 8xU/I/RTD/TC ST
FW update possibleVar
based on6ES7531-7KF00-0AB0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Prioritized startupYok
Ürün Hakkında
SIPLUS S7-1500 AI 8xU/I/RTD/TC based on 6ES7531-7KF00-0AB0 ile conformal coating, -40…+70 °C, analog giriş modül 16-bit resolution, accuracy 0,3%, 8 channels in groups of 8, 4 channels için RTD measurement, common mode gerilim 10 V; diagnostics; hardware interrupts dahil infeed element, shielding braket ve shield klemens
Siemens 6AG1531-7KF00-7AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıAI 8xU/I/RTD/TC ST
FW update possibleVar
based on6ES7531-7KF00-0AB0
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Prioritized startupYok
Measuring range scalableYok
Scalable measured valuesYok
Adjustment of measuring rangeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
OversamplingYok
MSIVar
CiR - Configuration in RUN
Reparameterization possible in RUNVar
Calibration possible in RUNVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.255 mA; with 19,2 V supply
24 V enkoder beslemesi
Short-circuit protectionVar
Output current, max.20 mA; Maks. 47 mA per channel for a duration < 10 s
Power
Power consumption from the backplane bus0,7 W
Güç kaybı
Güç kaybı, tipik2,7 W
Analog girişler
Analog giriş sayısı8; > +60 °C maks. 2x ±20 mA veya 4x ±10 V veya 4x RTD permissible
For current measurement8
For voltage measurement8
For resistance/resistance thermometer measurement4
For thermocouple measurement8
permissible input voltage for voltage input (destruction limit), max.28,8 V
permissible input current for current input (destruction limit), max.40 mA
Constant measurement current for resistance-type transmitter, typ.150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1,25 mA; 6.000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000: 0,625 mA; PTC: 0,472 mA
Technical unit for temperature measurement adjustableVar; °C/°F/K
Giriş aralıkları (nominal değerler), gerilim
0 to +5 VYok
0 … +10 VYok
1 V to 5 VVar
— Input resistance (1 V to 5 V)100 kΩ
-1 V to +1 VVar
— Input resistance (-1 V to +1 V)10 MΩ
-10 V to +10 VVar
— Input resistance (-10 V to +10 V)100 kΩ
-2.5 V to +2.5 VVar
— Input resistance (-2.5 V to +2.5 V)10 MΩ
-25 mV to +25 mVYok
-250 mV to +250 mVVar
— Input resistance (-250 mV to +250 mV)10 MΩ
-5 V to +5 VVar
— Input resistance (-5 V to +5 V)100 kΩ
-50 mV to +50 mVVar
— Input resistance (-50 mV to +50 mV)10 MΩ
-500 mV to +500 mVVar
— Input resistance (-500 mV to +500 mV)10 MΩ
-80 mV to +80 mVVar
— Input resistance (-80 mV to +80 mV)10 MΩ
Input ranges (rated values), currents
0 … 20 mAVar
— Input resistance (0 to 20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC
-20 mA to +20 mAVar
— Input resistance (-20 mA to +20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC
4 mA to 20 mAVar
— Input resistance (4 mA to 20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC
Input ranges (rated values), thermocouples
type BVar
— Input resistance (Type B)10 MΩ
type CYok
Type EVar
— Input resistance (Type E)10 MΩ
Type JVar
— Input resistance (type J)10 MΩ
Type KVar
— Input resistance (Type K)10 MΩ
Type LYok
Type NVar
— Input resistance (Type N)10 MΩ
Type RVar
— Input resistance (Type R)10 MΩ
Type SVar
— Input resistance (Type S)10 MΩ
Type TVar
— Input resistance (Type T)10 MΩ
Type TXK/TXK(L) to GOSTYok
Input ranges (rated values), resistance thermometer
Cu 10Yok
Cu 10 according to GOSTYok
Cu 50Yok
Cu 50 according to GOSTYok
Cu 100Yok
Cu 100 according to GOSTYok
Ni 10Yok
Ni 10 according to GOSTYok
Ni 100Var; Standard/climate
— Input resistance (Ni 100)10 MΩ
Ni 100 according to GOSTYok
Ni 1000Var; Standard/climate
— Input resistance (Ni 1000)10 MΩ
Ni 1000 according to GOSTYok
LG-Ni 1000Var; Standard/climate
— Input resistance (LG-Ni 1000)10 MΩ
Ni 120Yok
Ni 120 according to GOSTYok
Ni 200 according to GOSTYok
Ni 500Yok
Ni 500 according to GOSTYok
Pt 10Yok
Pt 10 according to GOSTYok
Pt 50Yok
Pt 50 according to GOSTYok
Pt 100Var; Standard/climate
— Input resistance (Pt 100)10 MΩ
Pt 100 according to GOSTYok
Pt 1000Var; Standard/climate
— Input resistance (Pt 1000)10 MΩ
Pt 1000 according to GOSTYok
Pt 200Var; Standard/climate
— Input resistance (Pt 200)10 MΩ
Pt 200 according to GOSTYok
Pt 500Var; Standard/climate
— Input resistance (Pt 500)10 MΩ
Pt 500 according to GOSTYok
Input ranges (rated values), resistors
0 to 150 ohmsVar
— Input resistance (0 to 150 ohms)10 MΩ
0 to 300 ohmsVar
— Input resistance (0 to 300 ohms)10 MΩ
0 to 600 ohmsVar
— Input resistance (0 to 600 ohms)10 MΩ
0 to 3000 ohmsYok
0 to 6000 ohmsVar
— Input resistance (0 to 6000 ohms)10 MΩ
PTCVar
— Input resistance (PTC)10 MΩ
Temperature compensation
— ParametrelenebilirVar
— internal temperature compensationVar
— external temperature compensation via RTDVar
— Compensation for 0 °C reference point temperatureVar; fixed value can be set
— Reference channel of the moduleVar
Kablo uzunluğu
Ekranlı, maks.800 m; for U/I, 200 m for R/RTD, 50 m for TC
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar
Integration time (ms)2,5 / 16,67 / 20 / 100 ms
Basic conversion time, including integration time (ms)9 / 23 / 27 / 107 ms
— additional conversion time for wire-break monitoring9 ms (to be considered in R/RTD/TC measurement)
— additional conversion time for resistance measurement150 ohm, 300 ohm, 600 ohm, Pt100, Pt200, Ni100: 2 ms, 6000 ohm, Pt500, Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms
Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 / 10 Hz
Time for offset calibration (per module)Basic conversion time of the slowest channel
Smoothing of measured values
ParameterizableVar
Step: NoneVar
Step: lowVar
Step: MediumVar
Step: HighVar
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar
— Burden of 2-wire transmitter, max.820 Ω
for current measurement as 4-wire transducerVar
for resistance measurement with two-wire connectionVar; Only for PTC
for resistance measurement with three-wire connectionVar; All measuring ranges except PTC; internal compensation of the cable resistances
for resistance measurement with four-wire connectionVar; All measuring ranges except PTC
Errors/accuracies
Linearity error (relative to input range), (+/-)0,02 %
Temperature error (relative to input range), (+/-)0,005 %/K; With TC type T 0,02 ± % / K
Crosstalk between the inputs, max.-80 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,02 %
Temperature error of internal compensation±6 °C
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,4 %
Current, relative to input range, (+/-)0,4 %
Resistance, relative to input range, (+/-)0,4 %
Resistance thermometer, relative to input range, (+/-)Ptxxx standard: ±1,5 K, Ptxxx climate: ±0,5 K, Nixxx standard: ±0,5 K, Nixxx climate: ±0,3 K
Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±4,6 K, type E: > -200 °C ±1,5 K, type J: > -210 °C ±1,9 K, type K: > -200 °C ±2,4 K, type N: > -200 °C ±2,9 K, type R: > 0 °C ±4,7 K, type S: > 0 °C ±4,6 K, type T: > -200 °C ±2,4 K
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,1 %
Current, relative to input range, (+/-)0,1 %
Resistance, relative to input range, (+/-)0,1 %
Resistance thermometer, relative to input range, (+/-)Ptxxx standard: ±0,7 K, Ptxxx climate: ±0,2 K, Nixxx standard: ±0,3 K, Nixxx climate: ±0,15 K
Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±1,7 K, type E: > -200 °C ±0,7 K, type J: > -210 °C ±0,8 K, type K: > -200 °C ±1,2 K, type N: > -200 °C ±1,2 K, type R: > 0 °C ±1,9 K, type S: > 0 °C ±1,9 K, type T: > -200 °C ±0,8 K
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.40 dB
Common mode voltage, max.10 V
Common mode interference, min.60 dB
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Limit value alarmVar; two upper ve two lower limit values in her biri case
Diagnoses
Monitoring the supply voltageVar
Wire breakVar; Only for 1 to 5 V, 4 to 20 mA, TC, R, ve RTD
Overflow/UnderflowVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Monitoring of the supply voltage (PWR-LED)Var; green LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; red LED
Potential separation channels
Kanallar arasıYok
Kanallar arası, grup başına8
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Permissible potential difference
between the inputs (UCM)20 V DC
Between the inputs and MANA (UCM)10 V DC
Isolation
Isolation tested with707 V DC (type test)
Standartlar, onaylar, sertifikalar
Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9Var; Based on AMS 2750 E
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]38,6 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]14,4 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]24,6 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.44 kg
Security
signed firmware updateYok
data integrityYok
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.40 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik129 mm
Ağırlık
Ağırlık, yaklaşık310 g
Other
Note:Additional basic error ve noise for integration time = 2,5 ms: Voltage: ±250 mV (±0,02%), ±80 mV (±0,05%), ±50 mV (±0,05%); resistance: 150 ohms ±0,02%; resistance thermometer: Pt100 climate: ±0,08 K, Ni100 climate: ±0,08 K; thermocouple: Type B, R, S: ±3 K, type E, J, K, N, T: ±1 K
Aksesuarlar 12
Siemens 6AG1531-7KF00-7AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7590-1AB60-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AC40-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AF30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AJ30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1BC00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7592-2AX00-0AA0 | Aksesuar · label | |
| 6AG1590-0BL00-7AA0 | Aksesuar · Rack | |
| 6ES7592-1AM00-0XB0 | Aksesuar · Connection plug | |
| 6ES7592-1BM00-0XB0 | Aksesuar · Connection plug | |
| 6AG1590-0AA00-7AA0 | Yedek parça · spare part | |
| 6ES7528-0AA00-7AA0 | Yedek parça · spare part | |
| 6ES7590-1AE80-0AA0 | Zorunlu ek ürün · Mounting rail |
İlgili Ürünler
Detayları Gör
Siemens
1FN3050-8SA00-0AA0
MFR #1FN3050-8SA00-0AA0
SKU #YLSPEYTCHSLPEPH
Detayları Gör
Siemens
1FN3100-8SA00-0AA0
MFR #1FN3100-8SA00-0AA0
SKU #YLSJZNRPZ4VXXL
Detayları Gör
Siemens
1FN3150-8SA00-0AA0
MFR #1FN3150-8SA00-0AA0
SKU #YLSZOWEGFUAGXOH
Detayları Gör
Siemens
1FN3300-8SA00-0AA0
MFR #1FN3300-8SA00-0AA0
SKU #YLSZMAEBPCROKIZ
Detayları Gör
Siemens
1FN3450-8SA00-0AA0
MFR #1FN3450-8SA00-0AA0
SKU #YLSNONBMS6EF28
Detayları Gör
Siemens
1FN3600-8SA00-0AA0
MFR #1FN3600-8SA00-0AA0
SKU #YLS8CPR47M6DMNJ
Detayları Gör
Siemens
1FN3900-8SA00-0AA0
MFR #1FN3900-8SA00-0AA0
SKU #YLSQEN1CGSWWALU
Detayları Gör
Siemens
1FY2105-0AA00
MFR #1FY2105-0AA00
SKU #YLSGTZWOTRQID
Detayları Gör
Siemens
1FY2105-4AA00
MFR #1FY2105-4AA00
SKU #YLSDLAYIMNHTZJE
Öne Çıkan Ürünler
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
İlgili Aramalar
Siemens 6AG1531-7KF00-7AB0 fiyatSiemens 6AG1531-7KF00-7AB0 teklif alSiemens 6AG1531-7KF00-7AB0 satın al6AG1531-7KF00-7AB0 fiyat6AG1531-7KF00-7AB0 stok durumuSiemens yedek parçaSiemens 6AG1531-7KF00-7AB0 muadilSiemens 6AG1531-7KF00-7AB0 teknik özellikler
