Siemens 6AG1503-3CC00-4AA0 için nasıl fiyat teklifi alabilirim?

Siemens 6AG1503-3CC00-4AA0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B038869D ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6AG1503-3CC00-4AA0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6AG1503-3CC00-4AA0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6AG1503-3CC00-4AA0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

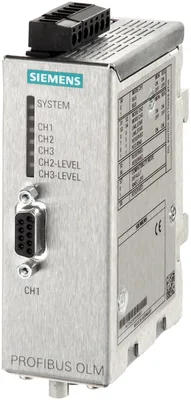

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6AG1503-3CC00-4AA0

SIPLUS NET OLM/G12-1300 V4.0 based on 6GK1503-3CC00 ile conformal coating, 0…+60 °C,

SiemensMFR # 6AG1503-3CC00-4AA0SKU # CEY-8EF3B038869D

product brand nameSIPLUS

transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s

transfer rate / with PROFIBUS PA45,45 kbit/s

for measuring device1

for signaling contact1

for redundant voltage supply1

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIPLUS NET OLM/G12-1300 V4.0 based on 6GK1503-3CC00 ile conformal coating, 0…+60 °C,

Siemens 6AG1503-3CC00-4AA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIPLUS

transfer rate

transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s

transfer rate / with PROFIBUS PA45,45 kbit/s

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum3

for network components or terminal equipment1

for measuring device1

for signaling contact1

for redundant voltage supply1

for network components or terminal equipment9-pin Sub-D socket

for measuring device2-pole terminal block

for power supply-

for power supply and signaling contact5-pole terminal block

number of optical interfaces / for fiber optic cable2

design of the optical interface / for fiber optic cableBFOC port

optical data

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum8 dB

for glass FOC with 62.5/125 µm / at 1 dB/km / maximum10 dB

propagation delay [bit]6,5 bit

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-19 dB

for glass FOC with 62.5/125 µm / at 1 dB/km-17 dB

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-29 dB

for glass FOC with 62.5/125 µm / at 1 dB/km-29 dB

wavelength / of the optical interface / note1310 nm, single-mode

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum15 km

for glass FOC with 62.5/125 µm / at 1 dB/km / maximum10 km

signal inputs/outputs

operating voltage / of the signaling contacts / at DC / rated value24 V

operational current / of the signaling contacts / at DC / maximum0,1 A

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / at DC / rated value24 V

supply voltage / at DC18,8... 28,8 V

product component / fusing at power supply inputVar

consumed current / at DC / at 24 V / maximum0,2 A

ambient conditions

in horizontal mounting position / during operation60... 0 °C

during storage and transport70... -40 °C

installation altitude / at height above sea level / maximum5000 m

ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)

with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation

chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets

conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna); class 3B3 talep üzerine

conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)

conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (Severity degree 3); *

conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust; *

conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *

environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place on the unused interfaces during operation!

coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability

protection against pollution according to EN 60664-3Var; protection of the type 1

type of test / of the coating / according to MIL-I-46058CVar; coating discoloration during service life possible

product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; conformal coating, class A

protection class IPIP40

design, dimensions and weights

designcompact

width39,5 mm

height112 mm

depth74,5 mm

net weight340 g

35 mm DIN-rail mountingVar

wall mountingVar

standards, specifications, approvals

for emitted interferenceEN 61000-6-4 (Class A)

for interference immunityEN 61000-6-7

certificate of suitabilityEN 61000-6-2, EN 61000-6-9

CE markingVar
