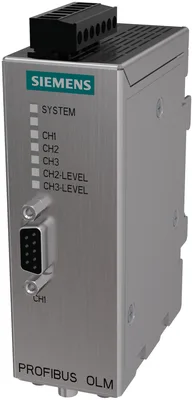

Siemens 6AG1503-3CC00-2AA0
SIPLUS NET OLM G12-1300 V4.0 based on 6GK1503-3CC00 ile conformal coating, -25…+60 °C, PROFIBUS OLM/G12-1300 V4.0 optical link modül ile 1 RS-485 ve 2 glass fiber optic kablo interfaces (4 BFOC sockets), 1300 Nm mil uzunluk için büyük distances ile sinyalizasyon kontak ve test port
product brand nameSIPLUS
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
transfer rate / with PROFIBUS PA45,45 kbit/s
for measuring device1
for signaling contact1
for power supply1
Ürün Hakkında
SIPLUS NET OLM G12-1300 V4.0 based on 6GK1503-3CC00 ile conformal coating, -25…+60 °C, PROFIBUS OLM/G12-1300 V4.0 optical link modül ile 1 RS-485 ve 2 glass fiber optic kablo interfaces (4 BFOC sockets), 1300 Nm mil uzunluk için büyük distances ile sinyalizasyon kontak ve test port
Siemens 6AG1503-3CC00-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
transfer rate
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
transfer rate / with PROFIBUS PA45,45 kbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum3
for network components or terminal equipment1
for measuring device1
for signaling contact1
for power supply1
for redundant voltage supply1
for network components or terminal equipment9-pin Sub-D socket
for measuring device2-pole terminal block
for power supply and signaling contact5-pole terminal block
number of optical interfaces / for fiber optic cable2
design of the optical interface / for fiber optic cableBFOC port
optical data
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum8 dB
propagation delay [bit]6,5 bit
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-19 dB
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-29 dB
wavelength / of the optical interface / note1310 nm, single-mode
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum15 km
signal inputs/outputs
operating voltage / of the signaling contacts / at DC / rated value24 V
operational current / of the signaling contacts / at DC / maximum0,1 A
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / at DC / rated value24 V
supply voltage / at DC18,8... 28,8 V
product component / fusing at power supply inputVar
consumed current / at DC / at 24 V / maximum0,2 A
ambient conditions
during operation-25... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
ambient condition / relating to ambient temperature - air pressure - installation altitude-25... +60°C 1080 hPa... 795 hPa (-1000 m... +2000 m) // -25... +50°C 795 hPa... 658 hPa (+2000 m... +3500 m) // -25... +40°C 658 hPa... 540 hPa (+3500 m... +5000 m)
with condensation / maximum100 %; RH, incl. condensation/frost permitted (no commissioning when condensation is present)
conformity according to EN 60721-3-3Var; Compliant with EN 60721-3-3, Class 3B2 mold ve fungal spores (except fauna). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-3Var; Compliant with EN 60721-3-3, Class 3C4 incl. salt spray in accordance with EN 60068-2-52 (severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-3Var; Compliant with EN 60721-3-3, Class 3S4 incl. sand, dust. The supplied plug covers must remain in place on the unused interfaces during operation.
protection class IPIP40
design, dimensions and weights
designcompact
width39,5 mm
height112 mm
depth74,5 mm
net weight340 g
35 mm DIN-rail mountingVar
wall mountingVar
standards, specifications, approvals
for emitted interferenceEN 61000-6-4 (Class A)
for interference immunityEN 61000-6-2
certificate of suitabilityEN 61000-6-2, EN 61000-6-4
CE markingVar
