Siemens 6AG1434-2BA20-7AA0 için nasıl fiyat teklifi alabilirim?

Siemens 6AG1434-2BA20-7AA0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSHGRBGJQTZ94 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6AG1434-2BA20-7AA0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6AG1434-2BA20-7AA0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6AG1434-2BA20-7AA0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

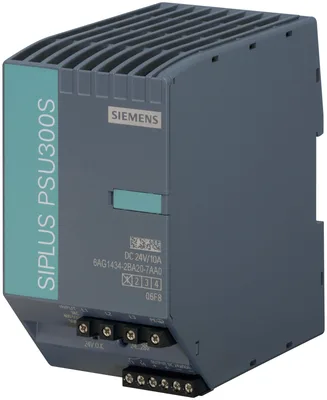

Siemens 6AG1434-2BA20-7AA0

SIPLUS PS PSU300S 10A based on 6EP1434-2BA20 ile conformal coating, -40…+70 °C, başlatma up -25 °C, stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/ 10 A

SiemensMFR # 6AG1434-2BA20-7AA0SKU # YLSHGRBGJQTZ94

product brand nameSIPLUS

product type designationPSU300S

product designationPower supply SITOP smart

type of current supply24 V/10 A

type of the power supply network3-phase AC

phase number3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIPLUS PS PSU300S 10A based on 6EP1434-2BA20 ile conformal coating, -40…+70 °C, başlatma up -25 °C, stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/ 10 A

Siemens 6AG1434-2BA20-7AA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSIPLUS

product type designationPSU300S

product designationPower supply SITOP smart

type of current supply24 V/10 A

manufacturer's article number of the basic version used for SIPLUS product versions6EP1434-2BA20

input

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

minimum rated value400 V

maximum rated value500 V

initial value340 V

full-scale value550 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

buffering time for rated value of the output current in the event of power failure minimum7 ms

operating condition of the mains bufferingVin = 400 V

at rated input voltage 400 V0,7 A

at rated input voltage 500 V0,6 A

current limitation of inrush current at 25 °C maximum20 A

I2t value maximum0,5 A²·s

fuse protection typeyok

fuse protection type in the feederRequired: 3-pole connected miniature circuit breaker 3... 16 A characteristic C veya circuit breaker 3RV2011-1DA10 (setting 3 A) veya 3RV2711-1DD10 (UL 489-listed, DIVQ)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage24... 28 V; maks. 240 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading0,15 %

maximum200 mV

maximum240 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0,3 A) for "24 V OK"

behavior of the output voltage when switching onOvershoot of Vout < 5 %

response delay maximum1,5 s

typical50 ms

maximum500 ms

rated value10 A

rated range0... 10 A; 12 A up to +45°C; +60... +70 °C: Derating 5%/K

supplied active power typical240 W

bridging of equipmentVar

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent91 %

at rated output voltage for rated value of the output current typical23 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical1 %

load step 50 to 100% typical3 ms

load step 100 to 50% typical3 ms

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3 %

load step 10 to 90% typical4 ms

load step 90 to 10% typical4 ms

maximum10 ms

protection and monitoring

design of the overvoltage protectionprotection against overvoltage in case of internal fault Vout < 35 V

property of the output short-circuit proofVar

design of short-circuit protectionConstant current characteristic

typical13 A

in normal operationoverload capability 150 % Iout rated up to 5 s/min

maximum16 A

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UKCA markingVar

Regulatory Compliance Mark (RCM)Var

MTBF at 40 °C500.000 h

ambient conditions

in horizontal mounting position during operation-40; Startup @ -25 °C... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

installation altitude at height above sea level maximum6.000 m

ambient condition relating to ambient temperature - air pressure - installation altitudeIn case of operation altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m veya reduction of the ambient temperature by 5 K/1000 m

relative humidity with condensation according to IEC 60068-2-38 maximum100 %; RH incl. condensation/frost (no commissioning if condensation is present), yatay installation

chemical resistance to commercially available cooling lubricantsVar; incl. diesel ve oil droplets in the air

resistance to biologically active substances conformity according to EN 60721-3-3Var; Class 3B2 mold, fungal, sponge spores (except fauna); class 3B3 upon request

resistance to chemically active substances conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust

resistance to biologically active substances conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal, sponge spores (except fauna)

resistance to chemically active substances conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust

coating for equipped printed circuit board according to EN 61086Var; Class 2 for high availability

type of coating protection against pollution according to EN 60664-3Var; Type 1 protection

type of test of the coating according to MIL-I-46058CVar; Discoloration of the coating during service life possible

product conformity of the coating Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal Coating, Class A

connection method

type of electrical connectionscrew terminal

at inputL1, L2, L3, PE: 1 screw terminal her biri for 0,05... 2,5 mm² single-core/finely stranded

at output+, -: 2 screw terminals her biri for 0,2... 2,5 mm²

for auxiliary contacts13, 14 (alarm signal): 1 screw terminal her biri for 0,2... 2,5 mm²

mechanical data

width × height × depth of the enclosure70 × 125 × 120 mm

installation width × mounting height70 mm × 225 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight0,7 kg

accessories

electrical accessoriesRedundancy module, buffer module, selectivity module, DC UPS

mechanical accessoriesDevice identification label 20 mm × 7 mm, pale turquoise 3RT1900-1SB20

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
