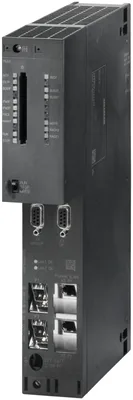

Siemens 6AG1412-5HK06-7AB0
SIPLUS S7-400 CPU 412-5H based on 6ES7412-5HK06-0AB0 ile conformal coating, -25…+70 °C, central processing ünite için S7-400H ve S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN ve 2 için SYNC modülleri, 1 MB memory (512 KB data/512 KB program)
Ürün tipi tanımıCPU 412-5H PN/DP
HW functional status1
Firmware sürümüV6.0
based on6ES7412-5HK06-0AB0
Isochronous modeYok
Programlama paketiAs of STEP 7 V5.5 SP2 with HF1
Ürün Hakkında
SIPLUS S7-400 CPU 412-5H based on 6ES7412-5HK06-0AB0 ile conformal coating, -25…+70 °C, central processing ünite için S7-400H ve S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN ve 2 için SYNC modülleri, 1 MB memory (512 KB data/512 KB program)
Siemens 6AG1412-5HK06-7AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 412-5H PN/DP
HW functional status1
Firmware sürümüV6.0
based on6ES7412-5HK06-0AB0
Product function
Isochronous modeYok
Mühendislik aracı
Programlama paketiAs of STEP 7 V5.5 SP2 with HF1
CiR - Configuration in RUN
CiR synchronization time, basic load100 ms
CiR synchronization time, time per I/O byte0 µs
Besleme gerilimi
Nominal değer (DC)Power supply via system power supply
Giriş akımı
from backplane bus 5 V DC, typ.1,6 A
from backplane bus 5 V DC, max.1,9 A
from backplane bus 24 V DC, max.150 mA; 150 mA per DP interface
from interface 5 V DC, max.90 mA; At her biri DP interface
Güç kaybı
Güç kaybı, tipik7,5 W
Storage
Type of memoryRAM
Çalışma belleği
Dahili1 MB
integrated (for program)512 kB
integrated (for data)512 kB
expandableYok
Yükleme belleği
expandable FEPROMVar; with Memory Card (FLASH)
expandable FEPROM, max.64 MB
integrated RAM, max.512 kB
expandable RAMVar
expandable RAM, max.64 MB
Yedekleme
MevcutVar
with batteryVar; all data
PilsizYok
Backup battery
Backup current, typ.180 µA; Valid up to 40°C
Backup current, max.1.000 µA
Backup time, max.Dealt with in the module data manual with the secondary conditions ve the factors of influence
Feeding of external backup voltage to CPU5 V DC to 15 V DC
CPU işlem süreleri
Bit işlemleri için, tipik31,25 ns
Word işlemleri için, tipik31,25 ns
for fixed point arithmetic, typ.31,25 ns
Kayan nokta aritmetiği için, tipik62,5 ns
DB
Sayı, maks.6.000; Number range: 1 to 16000
Boyut, maks.64 kB
FB
Sayı, maks.3.000; Number range: 0 to 7999
Boyut, maks.64 kB
FC
Sayı, maks.3.000; Number range: 0 to 7999
Boyut, maks.64 kB
Organizasyon blokları (OB)
Sayı, maks.see instruction list
Boyut, maks.64 kB
Number of free cycle OBs1; OB 1
Number of time alarm OBs4; OB 10-13
Number of delay alarm OBs4; OB 20-23
Number of cyclic interrupt OBs4; OB 32-35
Number of process alarm OBs4; OB 40-43
Number of DPV1 alarm OBs3; OB 55-57
Number of startup OBs2; OB 100, 102
Number of asynchronous error OBs9; OB 80-88
Number of synchronous error OBs2; OB 121, 122
Nesting depth
per priority class24
additional within an error OB1
S7 counter
Number2.048
Retentivity
— adjustableVar
— presetZ 0 to Z 7
Counting range
— lower limit0
— upper limit999
IEC counter
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
S7 timer
Number2.048
Retentivity
— adjustableVar
— presetYok times retentive
Time range
— lower limit10 ms
— upper limit9.990 s
IEC timer
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.Total working ve load memory (with backup battery)
Merker (bayrak)
Boyut, maks.8.192 bayt
Retentivity availableVar
Retentivity presetMB 0 to MB 15
Number of clock memories8; in 1 memory bayt
Yerel veri
adjustable, max.16 kB
preset8 kB
I/O address area
Inputs8 kB
Outputs8 kB
Proses görüntüsü
Girişler, ayarlanabilir8 kB
Çıkışlar, ayarlanabilir8 kB
Inputs, default256 bayt
Outputs, default256 bayt
consistent data, max.244 bayt
Access to consistent data in process imageVar
Subprocess images
Number of subprocess images, max.15
Digital channels
Inputs65.536
— of which central65.536
Outputs65.536
— of which central65.536
Analog channels
Inputs4.096
— of which central4.096
Outputs4.096
— of which central4.096
Donanım yapılandırması
Number of expansion units, max.21
connectable OPs47
MulticomputingYok
Interface modules
Number of connectable IMs (total), max.6
Number of connectable IM 460s, max.6
Number of connectable IM 463s, max.4; Single mode only
Number of DP masters
Dahili2
via CP10; CP 443-5 Extended
Mixed mode IM + CP permittedYok
via interface module0
Number of IO Controllers
Dahili1
Via CP0
Number of operable FMs and CPs (recommended)
FMSee manual Automation System S7-400H fault-tolerant systems. Limited by number of slots ve number of connections
CP, PtPSee manual Automation System S7-400H fault-tolerant systems. Limited by number of slots ve number of connections
PROFIBUS and Ethernet CPs14; Of which maks. 10 CP as DP master
Slots
required slots2
Saat
Donanım saati (gerçek zamanlı)Var
retentive and synchronizableVar
Resolution1 ms
Deviation per day (buffered), max.1,7 s; Power off
Deviation per day (unbuffered), max.8,6 s; Power on
Operating hours counter
Number16
Number/Number range0 to 15
Range of valuesSFCs 2, 3 ve 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Granularity1 h
retentiveVar
Clock synchronization
DestekleniyorVar
to MPI, masterVar
on MPI, deviceVar
to DP, masterVar
on DP, deviceVar
in AS, masterVar
in AS, deviceVar
on Ethernet via NTPVar; As client
Time difference in system when synchronizing via
Ethernet, max.10 ms; Via NTP
MPI, max.200 ms
Arayüzler
Number of RS 485 interfaces2
Number of other interfaces2; Fiber-optic interface
Optical interfaceYok
1. Arayüz
Arayüz tipiMPI/PROFIBUS DP
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
MPIVar
PROFIBUS DP masterVar
PROFIBUS DP deviceYok
MPI
Number of connections32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
PROFIBUS DP master
Number of connections, max.16; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
max. number of DP devices32
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceYok
— Eşzamanlı (isochronous) modYok
— SYNC/FREEZEYok
— activation/deactivation of DP devicesYok
— Direct data exchange (slave-to-slave communication)Yok
— DPV1Var
Address area
— Inputs, max.2 kB
— Outputs, max.2 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
PROFIBUS DP device
Number of connectionsYok configuration of CPU as DP slave
2. Interface
Arayüz tipiPROFINET
İzoleliVar
İletim hızının otomatik algılanmasıVar; Autosensing
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Change of IP address at runtime, supportedYok
Arayüz tipleri
RJ 45 (Ethernet)Var
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO kontrolcüsüVar
PROFINET IO DeviceYok
PROFINET CBAYok
PROFIBUS DP masterYok
PROFIBUS DP deviceYok
Açık IE haberleşmesiVar
Web sunucusuYok
Point-to-point connectionYok
Ortam yedekliliğiVar
PROFINET IO kontrolcüsü
İletim hızı, maks.100 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— S7 communicationVar
— Eşzamanlı (isochronous) modYok
— Paylaşımlı cihazVar; Single mode only
— Önceliklendirilmiş başlatmaYok
— Bağlanabilir IO cihazı sayısı, maks.256; In redundant mode via both interfaces
— RT için bağlanabilir IO cihazı sayısı, maks.256
— Bunlardan hat üzerinde, maks.256
— Activation/deactivation of IO DevicesYok
— IO Devices changing during operation (partner ports), supportedYok
— Device replacement without swap mediumVar
— Send cycles250 µs, 500 µs, 1 ms, 2 ms, 4 ms
— Güncelleme süresi250 µs to 512 ms, minimum value depends on the number of configured user data ve the configured single veya redundant mode
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
— User data consistency, max.1.024 bayt
Açık IE haberleşmesi
Number of connections, max.46
Local port numbers used at the system end0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Keep-alive function, supportedVar
3. Interface
Arayüz tipiPROFIBUS DP
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
PROFIBUS DP masterVar
PROFIBUS DP deviceYok
PROFIBUS DP master
Number of connections, max.16
İletim hızı, maks.12 Mbit/s
max. number of DP devices64
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceYok
— Eşzamanlı (isochronous) modYok
— SYNC/FREEZEYok
— activation/deactivation of DP devicesYok
— Direct data exchange (slave-to-slave communication)Yok
— DPV0Var
— DPV1Var
Address area
— Inputs, max.4 kB
— Outputs, max.4 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
4. Interface
Arayüz tipiPluggable synchronization submodule (FO)
Plug-in interface modulesSynchronization modules 6AG1960-1AA06-7XA0 veya 6AG1960-1AB06-7XA0
5. Interface
Arayüz tipiPluggable synchronization submodule (FO)
Plug-in interface modulesSynchronization modules 6AG1960-1AA06-7XA0 veya 6AG1960-1AB06-7XA0
Ortam yedekliliği
— Switchover time on line break, typ.200 ms
— Number of stations in the ring, max.50
SIMATIC haberleşmesi
S7 yönlendirmeVar
Açık IE haberleşmesi
TCP/IPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.46
— Veri uzunluğu, maks.32 kB
— several passive connections per port, supportedVar
ISO-on-TCP (RFC1006)Var; Via dahili PROFINET interface veya CP 443-1 ve loadable FBs
— Number of connections, max.46
— Veri uzunluğu, maks.32 kB; 1.452 bytes via CP 443-1 Adv.
UDPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.46
— Veri uzunluğu, maks.1.472 bayt
Web sunucusu
DestekleniyorYok
Isochronous mode
EquidistanceYok
Communication functions
PG/OP communicationVar
Number of connectable OPs with message processing47; When using Alarm_S/SQ ve Alarm_D/DQ
Number of connectable OPs without message processing47
Data record routingVar
Global data communication
DestekleniyorYok
S7 basic communication
DestekleniyorYok
S7 haberleşmesi
DestekleniyorVar
Sunucu olarakVar
İstemci olarakVar
İş başına kullanıcı verisi, maks.64 kB
User data per job (of which consistent), max.462 bayt; 1 variable
S5 compatible communication
DestekleniyorVar; (via CP maks. 10 ve FC AG_SEND ve FC AG_RECV)
İş başına kullanıcı verisi, maks.8 kB
User data per job (of which consistent), max.240 bayt
Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.64/64
Standard communication (FMS)
DestekleniyorVar; Via CP ve loadable FB
Bağlantı sayısı
Toplam48
— reserved for PG communication1
— adjustable for PG communication, max.0
— reserved for OP communication1
— adjustable for OP communication, max.0
— reserved for S7 basic communication0
— adjustable for S7 basic communication, max.0
— reserved for S7 communication0
— adjustable for S7 communication, max.0
— reserved for routing0
— adjustable for routing, max.0
S7 message functions
Number of login stations for message functions, max.47; Maks. 47 with Alarm_S/SQ ve Alarm_D/DQ (OPs); maks. 8 with Alarm, Alarm_8, Alarm_8P, Notify ve Notify_8 (e.g. WinCC)
Symbol-related messagesYok
SCAN procedureYok
Program alarmsVar
Process diagnostic messagesVar
simultaneously active Alarm_S blocks, max.250; Simultaneously active alarm_S/SQ blocks veya alarm_D/DQ blocks
Alarm 8-blocksVar
Number of instances for alarm 8 and S7 communication blocks, max.600
preset, max.300
Process control messagesVar
Number of archives that can log on simultaneously (SFB 37 AR_SEND)16
Test commissioning functions
Status blockVar
Single stepVar
Number of breakpoints16
Durum/kontrol
Durum/kontrol değişkeniVar; Up to 16 variable tables
DeğişkenlerInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Number of variables, max.70
Zorlama (force)
Zorlama (force)Var
Forcing, variablesInputs/outputs, bit memories, distributed I/Os
Number of variables, max.256
Tanılama arabelleği
MevcutVar
Number of entries, max.3.200
— adjustableVar
— preset120
Service data
Can be read outVar
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Çalışma ortam sıcaklığı
min.-25 °C; = Tmin
maks.70 °C; = Tmax; @ 60°C for UL/ATEX/FM ve safety-related application
Depolama/taşıma ortam sıcaklığı
min.-40 °C
maks.70 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m); with "F-System" applications maks. +2.000 m above sea level permissible
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Configuration software
STEP 7Var
Programming
Command setsee instruction list
Nesting levels7
Access to consistent data in process imageVar
System functions (SFC)see instruction list
System function blocks (SFB)see instruction list
Programlama dili
— LADVar
— FBDVar
— STLVar
— SCLVar
— CFCVar
— GRAPHVar
— HiGraph®Var
Number of simultaneously active SFCs
— RD_REC8
— WR_REC8
— WR_PARM8
— PARM_MOD1
— WR_DPARM2
— DPNRM_DG8
— RDSYSST8
— DP_TOPOL1
Number of simultaneously active SFBs
— RDREC8
— WRREC8
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Block encryptionVar; With S7 block Privacy
Ölçüler
Genişlik50 mm
Yükseklik290 mm
Derinlik219 mm
Ağırlık
Ağırlık, yaklaşık995 g
Aksesuarlar 2
Siemens 6AG1412-5HK06-7AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
İlgili Ürünler
Detayları Gör
Siemens
1FN3050-8SA00-0AA0
MFR #1FN3050-8SA00-0AA0
SKU #YLSPEYTCHSLPEPH
Detayları Gör
Siemens
1FN3100-8SA00-0AA0
MFR #1FN3100-8SA00-0AA0
SKU #YLSJZNRPZ4VXXL
Detayları Gör
Siemens
1FN3150-8SA00-0AA0
MFR #1FN3150-8SA00-0AA0
SKU #YLSZOWEGFUAGXOH
Detayları Gör
Siemens
1FN3300-8SA00-0AA0
MFR #1FN3300-8SA00-0AA0
SKU #YLSZMAEBPCROKIZ
Detayları Gör
Siemens
1FN3450-8SA00-0AA0
MFR #1FN3450-8SA00-0AA0
SKU #YLSNONBMS6EF28
Detayları Gör
Siemens
1FN3600-8SA00-0AA0
MFR #1FN3600-8SA00-0AA0
SKU #YLS8CPR47M6DMNJ
Detayları Gör
Siemens
1FN3900-8SA00-0AA0
MFR #1FN3900-8SA00-0AA0
SKU #YLSQEN1CGSWWALU
Detayları Gör
Siemens
1FY2105-0AA00
MFR #1FY2105-0AA00
SKU #YLSGTZWOTRQID
Detayları Gör
Siemens
1FY2105-4AA00
MFR #1FY2105-4AA00
SKU #YLSDLAYIMNHTZJE
Öne Çıkan Ürünler
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
İlgili Aramalar
Siemens 6AG1412-5HK06-7AB0 fiyatSiemens 6AG1412-5HK06-7AB0 teklif alSiemens 6AG1412-5HK06-7AB0 satın al6AG1412-5HK06-7AB0 fiyat6AG1412-5HK06-7AB0 stok durumuSiemens yedek parçaSiemens 6AG1412-5HK06-7AB0 muadilSiemens 6AG1412-5HK06-7AB0 teknik özellikler
