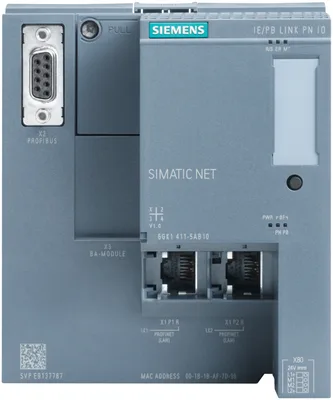

Siemens 6AG1411-5AB10-2AA0
SIPLUS NET IE/PB Link PN IO based on 6GK1411-5AB10 ile conformal coating, -40…+60 °C, IE/PB Link PN IO gateway between Industrial Ethernet ve PROFIBUS ile PROFINET IO functionality S7 routing ve data record routing, 10/100 Mbps Fast Ethernet, MRP, 9,6 Kbit/s en çok 12 Mbps PROFIBUS, NTP
product brand nameSIPLUS
at the 1st interface10... 100 Mbit/s
at the 2nd interface0,0096... 12 Mbit/s
for power supply2
for power supply4-pole terminal block
C-PLUGVar
Ürün Hakkında
SIPLUS NET IE/PB Link PN IO based on 6GK1411-5AB10 ile conformal coating, -40…+60 °C, IE/PB Link PN IO gateway between Industrial Ethernet ve PROFIBUS ile PROFINET IO functionality S7 routing ve data record routing, 10/100 Mbps Fast Ethernet, MRP, 9,6 Kbit/s en çok 12 Mbps PROFIBUS, NTP
Siemens 6AG1411-5AB10-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
suitability for operationGateway between Industrial Ethernet ve PROFIBUS
transfer rate
at the 1st interface10... 100 Mbit/s
at the 2nd interface0,0096... 12 Mbit/s
interfaces
at the 1st interface / according to Industrial Ethernet2
at the 2nd interface / according to PROFIBUS1
for power supply2
at the 1st interface / according to Industrial EthernetRJ45 port onboard veya bus adapter
at the 2nd interface / according to PROFIBUS9-pin Sub-D socket (RS 485)
for power supply4-pole terminal block
C-PLUGVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / external / at DC / rated value24 V
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
from external supply voltage / at DC / at 24 V / typical0,2 A
from external supply voltage / at DC / at 24 V / maximum0,3 A
power loss [W]4,8 W; tipik
ambient conditions
for vertical installation / during operation-40... +40 °C
for horizontally arranged busbars / during operation-40... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
module formatET 200SP design
width100 mm
height117 mm
depth74 mm
net weight0,6 kg
35 mm DIN-rail mountingVar
performance data / PROFIBUS DP
DPV0Var
DPV1Var
at the 2nd interface / as DP master / maximum64
of the address range of the inputs / as DP master / total2048 bayt
of the address range of the outputs / as DP master / total2048 bayt
of the address range of the inputs / per DP device244 bayt
of the address range of the outputs / per DP device244 bayt
performance data / S7 communication
maximum32
performance data / multi-protocol mode
number of active connections / with multi-protocol mode48
performance data / PROFINET communication / as PN IO device
product function / PROFINET IO deviceVar
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
I&M2 - installation dateVar
I&M3 - commentVar
product functions / routing
service / as PROFIBUS / dataset routingVar
number of possible connections / with dataset routing / maximum32
product functions / redundancy
ring redundancyVar
PROFINET system redundancyYok
protocol / is supported / Media Redundancy Protocol (MRP)Var
product functions / time
product function / pass on time synchronizationVar
NTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals / hazardous environments / header
certificate of suitability / CCC / for hazardous zone according to GB standardVar
accessories
accessoriesOptional: C-PLUG, BusAdapter of the ET 200SP system
