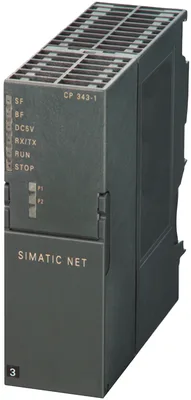

Siemens 6AG1343-1EX30-7XE0
yedek only, no repair. 343-1 based on 6GK7343-1EX30-0XE0 ile conformal coating, -25…+70 °C, communications processor için bağlantı of SIMATIC S7-300 to Industrial Ethernet via ISO ve TCP/IP, PROFINET IO kontrolcü veya PROFINET IO cihaz, dahili 2-port anahtar ERTEC 200 S7 communication, fetch/write, send/receive ile ve olmadan RFC1006, multicast DHCP, NTC-CPU sync, diagnostics, initialization via LAN,
product brand nameSIPLUS
at the 1st interface10... 100 Mbit/s
for power supply1
of Industrial Ethernet interfaceRJ45 port
for power supply2-pole plugable terminal block
type of voltage / of the supply voltageDC
Ürün Hakkında
yedek only, no repair. 343-1 based on 6GK7343-1EX30-0XE0 ile conformal coating, -25…+70 °C, communications processor için bağlantı of SIMATIC S7-300 to Industrial Ethernet via ISO ve TCP/IP, PROFINET IO kontrolcü veya PROFINET IO cihaz, dahili 2-port anahtar ERTEC 200 S7 communication, fetch/write, send/receive ile ve olmadan RFC1006, multicast DHCP, NTC-CPU sync, diagnostics, initialization via LAN,
Siemens 6AG1343-1EX30-7XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
transfer rate
at the 1st interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet2
at the 1st interface / according to Industrial Ethernet2
for power supply1
of Industrial Ethernet interfaceRJ45 port
at the 1st interface / according to Industrial EthernetRJ45 port
for power supply2-pole plugable terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
supply voltage24 V
supply voltage / external24 V
supply voltage / external / at DC / rated value24 V
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
from backplane bus / at DC / at 5 V / typical0,2 A
from external supply voltage / at DC / at 24 V / typical0,16 A
from external supply voltage / at DC / at 24 V / maximum0,2 A
power loss [W]5,8 W
ambient conditions
during operation-25... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 single width
width40 mm
height125 mm
depth120 mm
net weight0,22 kg
performance data / open communication
number of Multicast stations16
performance data / S7 communication
maximum16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode32
performance data / PROFINET communication / as PN IO controller
number of external PN IO lines / with PROFINET / per rack1
as user data for input variables / as PROFINET IO controller / maximum1 Kibyte
as user data for output variables / as PROFINET IO controller / maximum1 Kibyte
as user data for input variables per PN IO device / as PROFINET IO controller / maximum240 bayt
as user data for output variables per PN IO device / as PROFINET IO controller / maximum240 bayt
performance data / PROFINET communication / as PN IO device
as user data for input variables / as PROFINET IO device / maximum512 bayt
as user data for output variables / as PROFINET IO device / maximum512 bayt
as user data for input variables / for each sub-module as PROFINET IO device240 bayt
as user data for output variables / for each sub-module as PROFINET IO device240 bayt
as user data for the consistency area for each sub-module240 bayt
number of submodules / per PROFINET IO-Device32
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
LLDPVar
requiredSTEP 7 V5.4 SP2 veya üstü
product functions / switch
product feature / switchVar
with IRT / PROFINET IO switchVar
configuration with STEP 7Var
product functions / redundancy
ring redundancyVar
redundancy managerYok
protocol / is supported / Media Redundancy Protocol (MRP)Var
product functions / security
ACL - IP-basedVar
ACL - IP-based for PLC/routingYok
switch-off of non-required servicesVar
product functions / time
product function / SICLOCK supportVar
NTPVar
