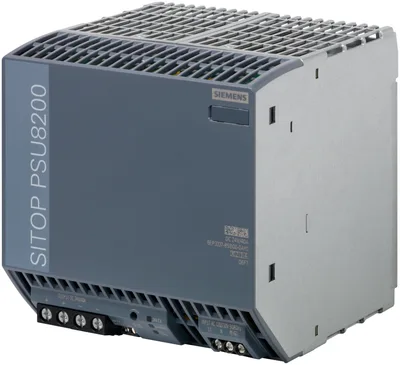

Siemens 6AG1337-8SB00-7AY0

SIPLUS PS PSU8200 40A based on 6EP3337-8SB00-0AY0 ile conformal coating, -40…+70 °C, stabilized güç kaynağı giriş: 120/230 V AC çıkış: 24 V DC/40 A

SiemensMFR # 6AG1337-8SB00-7AY0SKU # YLSAWOFGRJNMEJU

product brand nameSIPLUS

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/40 A

type of the power supply network1-phase ve 2-phase AC

phase number1

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIPLUS PS PSU8200 40A based on 6EP3337-8SB00-0AY0 ile conformal coating, -40…+70 °C, stabilized güç kaynağı giriş: 120/230 V AC çıkış: 24 V DC/40 A

Siemens 6AG1337-8SB00-7AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSIPLUS

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/40 A

manufacturer's article number of the basic version used for SIPLUS product versions6EP3337-8SB00-0AY0

input

type of the power supply network1-phase ve 2-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACAutomatic selection; startup starting from Ue ≥ 90/180 V

supply voltage120 V/230 V

input voltage 1 at AC85... 132 V

input voltage 2 at AC170... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency45... 65 Hz

wide range inputYok

buffering time for rated value of the output current in the event of power failure minimum25 ms

operating condition of the mains bufferingVin = 230 V

at rated input voltage 120 V15 A

at rated input voltage 230 V9 A

current limitation of inrush current at 25 °C maximum50 A

I2t value maximum8 A²·s

fuse protection typeVar

fuse protection type in the feederRecommended miniature circuit breaker 1-phase operation: 16 A characteristic C; required 2-phase operation: circuit breaker 2-pole connected veya circuit breaker 3RV2421-4BA10 (120 V) veya 3RV2411-1JA10 (230 V)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage24... 28 V; maks. 960 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading0,1 %

maximum100 mV

typical50 mV

maximum240 mV

typical220 mV

display version for normal operationGreen LED for 24 V OK; LED yellow for overload; LED red for short-circuit veya latching shutdown

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0,3 A) for "24 V OK"

behavior of the output voltage when switching onOvershoot of Vout yaklaşık 3 %

response delay maximum1,5 s

typical30 ms

rated value40 A

rated range0... 40 A; +60... +70 °C: Derating 3%/K

supplied active power typical960 W

on short-circuiting during the start-up typical120 A

at short-circuit during operation typical120 A

on short-circuiting during the start-up25 ms

at short-circuit during operation25 ms

on short-circuiting during the start-up typical60 A

bridging of equipmentVar; switchable characteristic

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent92 %

at rated output voltage for rated value of the output current typical82 W

during no-load operation maximum6,8 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical1,9 %

load step 50 to 100% typical2 ms

load step 100 to 50% typical2 ms

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3,8 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

maximum1 ms

protection and monitoring

design of the overvoltage protection< 32 V

property of the output short-circuit proofVar

design of short-circuit protectionAlternatively, constant current characteristic yaklaşık 41 A veya latching shutdown

typical41 A

in normal operation250% Iout rated up to 25 ms, 150% Iout rated up to 5 s/min

typical41 A

display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown" veya "short-circuit"

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum0,1 mA

typical0,1 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitation-

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UKCA markingVar

Regulatory Compliance Mark (RCM)Var

MTBF at 40 °C838.156 h

ambient conditions

in horizontal mounting position during operation-40... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

installation altitude at height above sea level maximum6.000 m

ambient condition relating to ambient temperature - air pressure - installation altitudeIn case of operation altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m veya reduction of the ambient temperature by 5 K/1000 m

relative humidity with condensation according to IEC 60068-2-38 maximum100 %; RH incl. condensation/frost (no commissioning if condensation is present), yatay installation

chemical resistance to commercially available cooling lubricantsVar; incl. diesel ve oil droplets in the air

resistance to biologically active substances conformity according to EN 60721-3-3Var; Class 3B2 mold, fungal, sponge spores (except fauna); class 3B3 upon request

resistance to chemically active substances conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust

resistance to biologically active substances conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal, sponge spores (except fauna)

resistance to chemically active substances conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust

coating for equipped printed circuit board according to EN 61086Var; Class 2 for high availability

type of coating protection against pollution according to EN 60664-3Var; Type 1 protection

type of test of the coating according to MIL-I-46058CVar; Discoloration of the coating during service life possible

product conformity of the coating Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal Coating, Class A

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal her biri for 0,2... 4 mm² single-core/finely stranded

at output+, -: 2 screw terminals her biri for 0,5... 10 mm²

for auxiliary contacts13, 14 (alarm signal): 1 screw terminal her biri for 0,14... 1,5 mm²

mechanical data

width × height × depth of the enclosure145 × 145 × 150 mm

installation width × mounting height150 mm × 225 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight3,1 kg

accessories

electrical accessoriesBuffer module, redundancy module

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
