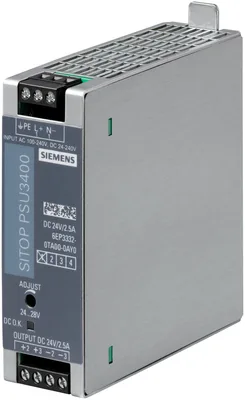

Siemens 6AG1332-0TA00-7AY0

SIPLUS PS PSU3400 1ACDC DC 24V 2.5A based on 6EP3332-0TA00-0AY0 ile conformal coating, -40…+70 °C, başlatma up -25 °C, stabilized güç kaynağı giriş: 230 V AC (88…264 V) giriş: 24 V DC (18…264 V) çıkış: 24 V DC/2,5 A

SiemensMFR # 6AG1332-0TA00-7AY0SKU # YLSPOR6UDIT7XH

product brand nameSIPLUS

product type designationPSU3400

product designationPower supply SITOP DC-DC converter

type of current supply24 V/2,5 A

type of the power supply network1-phase AC veya DC

phase number1

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG1332-0TA00-7AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSIPLUS

product type designationPSU3400

product designationPower supply SITOP DC-DC converter

type of current supply24 V/2,5 A

manufacturer's article number of the basic version used for SIPLUS product versions6EP3332-0TA00-0AY0

input

type of the power supply network1-phase AC veya DC

phase number1

voltage curve at inputAC/DC

minimum rated value120 V

maximum rated value240 V

initial value88 V

full-scale value264 V

supply voltage at ACStartup as of 18 V

supply voltage at DC24 V

input voltage at DC18... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

overvoltage overload capability-

buffering time for rated value of the output current in the event of power failure minimum5 ms

operating condition of the mains bufferingVin rated

at rated input voltage 24 V1,9 A

current limitation of inrush current at 25 °C maximum15 A

I2t value maximum0,09 A²·s

fuse protection type15 A (not accessible), breaking capacity 100 A

fuse protection type in the feederRecommended miniature circuit breaker: 16 A characteristic B veya C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage24... 28 V

relative overall tolerance of the voltage1 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading0,2 %

maximum150 mV

typical30 mV

maximum250 mV

typical70 mV

display version for normal operationGreen LED for 24 V OK

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum0,5 s

typical10 ms

maximum20 ms

rated value2,5 A

rated range0... 3,5 A; +60 to +70 °C: without derating

supplied active power typical85 W

bridging of equipmentVar

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent85 %

at rated output voltage for rated value of the output current typical7 W

during no-load operation maximum1,5 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,3 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical2 %

load step 50 to 100% typical1 ms

load step 100 to 50% typical1 ms

protection and monitoring

design of the overvoltage protectionUa < 35 V

property of the output short-circuit proofVar

design of short-circuit protectionElectronic shutdown, automatic restart

typical3,8 A

display version for overload and short circuitLED yellow for "overload"

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass III

protection class IPIP20

EMC

for emitted interferenceEN 61000-6-3

for mains harmonics limitationnot applicable

for interference immunityEN 61000-6-2

standards, specifications, approvals

UKCA markingVar

MTBF at 40 °C1.934.648 h

ambient conditions

in horizontal mounting position during operation-40; Startup @ -25 °C... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

installation altitude at height above sea level maximum6.000 m

ambient condition relating to ambient temperature - air pressure - installation altitudeIn case of operation altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m veya reduction of the ambient temperature by 5 K/1000 m

relative humidity with condensation according to IEC 60068-2-38 maximum100 %; RH incl. condensation/frost (no commissioning if condensation is present), yatay installation

chemical resistance to commercially available cooling lubricantsVar; incl. diesel ve oil droplets in the air

resistance to biologically active substances conformity according to EN 60721-3-3Var; Class 3B2 mold, fungal, sponge spores (except fauna); class 3B3 upon request

resistance to chemically active substances conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust

resistance to biologically active substances conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal, sponge spores (except fauna)

resistance to chemically active substances conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust

coating for equipped printed circuit board according to EN 61086Var; Class 2 for high availability

type of coating protection against pollution according to EN 60664-3Var; Type 1 protection

type of test of the coating according to MIL-I-46058CVar; Discoloration of the coating during service life possible

product conformity of the coating Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal Coating, Class A

connection method

type of electrical connectionscrew terminal

at inputL, N, FE: 1 screw terminal her biri for 0,5... 2,5 mm² single-core/finely stranded

at output+, -: 2 screw terminals her biri for 0,5... 2,5 mm²

mechanical data

width × height × depth of the enclosure32 × 100 × 100 mm

installation width × mounting height32 mm × 200 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight0,32 kg

accessories

electrical accessoriesBuffer module

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
