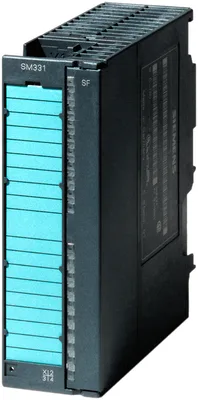

Siemens 6AG1331-1KF02-7AB0
Replacement only, no repair. For new rail projects possibly migration to S7-1200, S7-1500, ET200SP SM 331 8 AI based on 6ES7331-1KF02-0AB0 with conformal coating, -25…+70 °C, isolated 8 AI, resolution 13 bit U/I/resistance/Pt100, NI100, NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole
based on6ES7331-1KF02-0AB0
Isochronous modeYok
from backplane bus 5 V DC, max.90 mA
Güç kaybı, tipik0,4 W
Analog giriş sayısı8
For resistance measurement8
Ürün Hakkında
Replacement only, no repair. For new rail projects possibly migration to S7-1200, S7-1500, ET200SP SM 331 8 AI based on 6ES7331-1KF02-0AB0 with conformal coating, -25…+70 °C, isolated 8 AI, resolution 13 bit U/I/resistance/Pt100, NI100, NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole
Siemens 6AG1331-1KF02-7AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
based on6ES7331-1KF02-0AB0
Product function
Isochronous modeYok
Giriş akımı
from backplane bus 5 V DC, max.90 mA
Güç kaybı
Güç kaybı, tipik0,4 W
Analog girişler
Analog giriş sayısı8
For resistance measurement8
permissible input voltage for voltage input (destruction limit), max.30 V; 12 V continuous, 30 V for maks. 1 s
permissible input current for current input (destruction limit), max.40 mA
Giriş aralıkları
GerilimVar
CurrentVar
ThermocoupleYok
Resistance thermometerVar
ResistanceVar
Giriş aralıkları (nominal değerler), gerilim
0 … +10 VVar
— Giriş direnci (0 … 10 V)100 kΩ
1 V to 5 VVar
— Input resistance (1 V to 5 V)100 kΩ
1 V to 10 VYok
-1 V to +1 VVar
— Input resistance (-1 V to +1 V)100 kΩ
-10 V to +10 VVar
— Input resistance (-10 V to +10 V)100 kΩ
-2.5 V to +2.5 VYok
-250 mV to +250 mVYok
-5 V to +5 VVar
— Input resistance (-5 V to +5 V)100 kΩ
-50 mV to +50 mVVar
— Input resistance (-50 mV to +50 mV)100 kΩ
-500 mV to +500 mVVar
— Input resistance (-500 mV to +500 mV)100 kΩ
-80 mV to +80 mVYok
Input ranges (rated values), currents
0 … 20 mAVar
— Input resistance (0 to 20 mA)100 Ω
-10 mA to +10 mAYok
-20 mA to +20 mAVar
— Input resistance (-20 mA to +20 mA)100 Ω
-3.2 mA to +3.2 mAYok
4 mA to 20 mAVar
— Input resistance (4 mA to 20 mA)100 Ω
Input ranges (rated values), thermocouples
Type BYok
Type CYok
Type EYok
Type JYok
Type KYok
Type LYok
Type NYok
Type RYok
Type SYok
Type TYok
Type UYok
Type TXK/TXK(L) to GOSTYok
Input ranges (rated values), resistance thermometer
Cu 10Yok
Ni 100Var; Standard/climate
— Input resistance (Ni 100)100 MΩ
Ni 1000Var
— Input resistance (Ni 1000)100 MΩ
LG-Ni 1000Var; Standard/climate
— Input resistance (LG-Ni 1000)100 MΩ
Ni 120Yok
Ni 200Yok
Ni 500Yok
Pt 100Var; Standard/climate
— Input resistance (Pt 100)100 MΩ
Pt 1000Yok
Pt 200Yok
Pt 500Yok
Input ranges (rated values), resistors
0 to 150 ohmsYok
0 to 300 ohmsYok
0 to 600 ohmsVar
— Input resistance (0 to 600 ohms)100 MΩ
0 to 6000 ohmsVar
— Input resistance (0 to 6000 ohms)100 MΩ
Characteristic linearization
ParameterizableVar
— for resistance thermometeryes; Pt100 standard/air con.; Ni100 standard/air con.; Ni1000 standard/air con.; LG-Ni1000 standard/air con.
Kablo uzunluğu
Ekranlı, maks.200 m; maks. 50 m 50 mV
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.13 bit
Entegrasyon süresi, parametrelenebilirVar; 60 / 50 ms
Basic conversion time (ms)66 / 55 ms
Interference voltage suppression for interference frequency f1 in Hz50 / 60 Hz
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar; with external supply
for current measurement as 4-wire transducerVar
for resistance measurement with two-wire connectionVar
for resistance measurement with three-wire connectionVar
for resistance measurement with four-wire connectionVar
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,6 %; ±0,6 % (±5 V, 10 V, 1 to 5 V, 0 to 10 V); ±0,5 % (±50 mV, 500 mV, 1 V) @ 0... +60 °C; ±0,7 % (±5 V, 10 V, 1 to 5 V, 0 to 10 V); ±0,6 % (±50 mV, 500 mV, 1 V) @ -25... +70 °C
Current, relative to input range, (+/-)0,5 %; @ 0... +60 °C; ±0,6% @ -25... +70 °C; ±20 mA, 0 to 20 mA, 4 to 20 mA
Resistance, relative to input range, (+/-)0,5 %; @ 0... +60 °C; 0,6% @ -25... +70 °C; 0 to 6 kohm, 0 to 600 kohm
Resistance thermometer, relative to input range, (+/-)1 Kelvin (Pt100, Ni100, climate; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climate); 1,2 Kelvin (Pt100, Ni100, standard) @ 0... +60 °C; 1,2 Kelvin (Pt100, Ni100, climate; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climate); 1,4 Kelvin (Pt100, Ni100, standard) @ -25... +70 °C
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,4 %; 0,4% (±5 V, 10 V, 1 to 5 V, 0 to 10 V); 0,3% (±50 mV, 500 mV, 1 V)
Current, relative to input range, (+/-)0,3 %; ±20 mA, 0 to 20 mA, 4 to 20 mA
Resistance, relative to input range, (+/-)0,3 %; 0 to 6 kohms, 0 to 600 kohms
Resistance thermometer, relative to input range, (+/-)1 Kelvin (Pt100, Ni100, standard); 0,8 Kelvin (Pt100, Ni100, climatic; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic)
Interrupts/diagnostics/status information
Diagnostics functionYok
Alarms
Diagnostic alarmYok
Limit value alarmYok
Diagnoses
Diagnostic information readableYok
Tanılama gösterge LED’i
Group error SF (red)Yok
Potential separation analog inputs
Kanallar arasıYok
between the channels and backplane busVar
Isolation
Isolation tested with500 V DC
Standartlar, onaylar, sertifikalar
CE işaretiVar
UL onayıVar; File E239877
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Var
Railway application
EN 50121-4Yok
EN 50155Yok
Çalışma ortam sıcaklığı
min.-25 °C
maks.70 °C; = Tmax; 60 °C @ UL/cUL, ATEX ve FM use
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Connection method
required front connector40-pin
Ölçüler
Genişlik40 mm
Yükseklik125 mm
Derinlik117 mm
Ağırlık
Ağırlık, yaklaşık250 g
Aksesuarlar 2
Siemens 6AG1331-1KF02-7AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7392-1AM00-0AA0 | Aksesuar · Connection plug | |
| 6ES7392-1BM01-0AA0 | Aksesuar · Connection plug |
