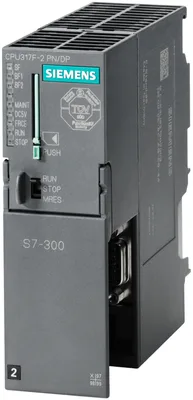

Siemens 6AG1317-2FK14-2AB0

yedek only, no repair. No direct halefi,possibly migration to SIPLUS Extreme Rail CPU 317F-2PN/DP based on 6ES7317-2FK14-0AB0 ile conformal coating, -25…+60 °C, central processing ünite ile 1,5 MB work memory, 1st arayüz MPI/DP 12 Mbps, 2nd arayüz Ethernet PROFINET, ile 2-port anahtar, Micro bellek kartı required

SiemensMFR # 6AG1317-2FK14-2AB0SKU # CEY-8EF3B038872A

Ürün tipi tanımıCPU 317F-2 PN/DP

based on6ES7317-2FK14-0AB0

Nominal değer (DC)24 V

İzin verilen aralık, alt sınır (DC)20,4 V

İzin verilen aralık, üst sınır (DC)28,8 V

Mains/voltage failure stored energy time5 ms

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG1317-2FK14-2AB0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

Ürün tipi tanımıCPU 317F-2 PN/DP

based on6ES7317-2FK14-0AB0

Product function

Isochronous modeVar; Via PROFIBUS DP veya PROFINET interface

Mühendislik aracı

Programlama paketiSTEP 7 V5.5 veya üstü, Distributed Safety V5.4 SP4

Besleme gerilimi

Nominal değer (DC)24 V

İzin verilen aralık, alt sınır (DC)20,4 V

İzin verilen aralık, üst sınır (DC)28,8 V

external protection for power supply lines (recommendation)2 A min.

Mains buffering

Mains/voltage failure stored energy time5 ms

Repeat rate, min.1 s

Giriş akımı

Akım tüketimi (nominal değer)750 mA

Current consumption (in no-load operation), typ.150 mA

Inrush current, typ.4 A

I²t1 A²·s

Güç kaybı

Güç kaybı, tipik4,65 W

Çalışma belleği

Dahili1.536 kB

expandableYok

Yükleme belleği

Plug-in (MMC)Var

Plug-in (MMC), max.8 MB

Data management on MMC (after last programming), min.10 a

Yedekleme

MevcutVar; Guaranteed by MMC (bakım gerektirmez)

PilsizVar; Program ve data

CPU işlem süreleri

Bit işlemleri için, tipik0,025 µs

Word işlemleri için, tipik0,03 µs

for fixed point arithmetic, typ.0,04 µs

Kayan nokta aritmetiği için, tipik0,16 µs

CPU blokları

Eleman sayısı (toplam)2.048; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.

Sayı, maks.2.048; Number range: 1 to 16000

Boyut, maks.64 kB

Sayı, maks.2.048; Number range: 0 to 7999

Boyut, maks.64 kB

Sayı, maks.2.048; Number range: 0 to 7999

Boyut, maks.64 kB

Organizasyon blokları (OB)

Boyut, maks.64 kB

Number of free cycle OBs1; OB 1

Number of time alarm OBs1; OB 10

Number of delay alarm OBs2; OB 20, 21

Number of cyclic interrupt OBs4; OB 32, 33, 34, 35

Number of process alarm OBs1; OB 40

Number of DPV1 alarm OBs3; OB 55, 56, 57

Number of isochronous mode OBs1; OB 61 - isochronous mode is possible either on DP veya PROFINET IO (not simultaneously)

Number of startup OBs1; OB 100

Number of asynchronous error OBs6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO)

Number of synchronous error OBs2; OB 121, 122

Nesting depth

per priority class16

additional within an error OB4

S7 counter

Number512

Retentivity

— adjustableVar

— presetZ 0 to Z 7

Counting range

— can be setVar

— lower limit0

— upper limit999

IEC counter

MevcutVar

TypeSFB

NumberUnlimited (limited only by RAM capacity)

S7 timer

Number512

Retentivity

— adjustableVar

— presetYok retentivity

Time range

— lower limit10 ms

— upper limit9.990 s

IEC timer

MevcutVar

TypeSFB

NumberUnlimited (limited only by RAM capacity)

Veri alanları ve kalıcılığı

Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.256 kB

Merker (bayrak)

Boyut, maks.4.096 bayt

Retentivity availableVar; From MB 0 to MB 4.095

Retentivity presetMB 0 to MB 15

Number of clock memories8; 1 memory bayt

Data blocks

Retentivity adjustableVar; via non-retain property on DB

Retentivity presetVar

Yerel veri

Öncelik sınıfı başına, maks.32.768 bayt; Maks. 2048 bytes per block

I/O address area

Inputs8.192 bayt

Outputs8.192 bayt

of which distributed

— Inputs8.192 bayt

— Outputs8.192 bayt

Proses görüntüsü

Inputs8.192 bayt

Outputs8.192 bayt

Girişler, ayarlanabilir8.192 bayt

Çıkışlar, ayarlanabilir8.192 bayt

Inputs, default256 bayt

Outputs, default256 bayt

Subprocess images

Number of subprocess images, max.1; With PROFINET IO, the length of the user data is limited to 1600 bytes

Digital channels

Inputs65.536

— of which central1.024

Outputs65.536

— of which central1.024

Analog channels

Inputs4.096

— of which central256

Outputs4.096

— of which central256

Donanım yapılandırması

Number of expansion units, max.3

Number of DP masters

Dahili1

via CP4

Number of operable FMs and CPs (recommended)

FM8

CP, PtP8

CP, LAN10

Rack

Racks, max.4

Modules per rack, max.8

Saat

Donanım saati (gerçek zamanlı)Var

retentive and synchronizableVar

Yedekleme süresi6 wk; At 40 °C ambient temperature

Günlük sapma, maks.10 s; Typ.: 2 s

Behavior of the clock following POWER-ONClock continues running after POWER OFF

Behavior of the clock following expiry of backup periodthe clock continues the time of day it had when power was switched off

Operating hours counter

Number4

Number/Number range0 to 3

Range of values0 to 2^31 hours (when using SFC 101)

Granularity1 h

retentiveVar; Must be restarted her biri restart

Clock synchronization

DestekleniyorVar

to MPI, masterVar

on MPI, deviceVar

to DP, masterVar; With DP slave only slave clock

on DP, deviceVar

in AS, masterVar

in AS, deviceVar

on Ethernet via NTPVar; As client

Dijital girişler

Dijital giriş sayısı0

Dijital çıkışlar

Dijital çıkış sayısı0

Analog girişler

Analog giriş sayısı0

Arayüzler

PROFINET arayüz sayısı1

Number of RS 485 interfaces1

Number of RS 422 interfaces0

1. Arayüz

Arayüz tipidahili RS 485 interface

İzoleliVar

Arayüz tipleri

RS 485Var

Output current of the interface, max.200 mA

Protokoller

MPIVar

PROFIBUS DP masterVar

PROFIBUS DP deviceVar

Point-to-point connectionYok

MPI

İletim hızı, maks.12 Mbit/s

Servisler

— PG/OP haberleşmesiVar

— RoutingVar

— Global data communicationVar

— S7 basic communicationVar

— S7 communicationVar

— S7 communication, as clientYok; but via CP ve loadable FB

— S7 communication, as serverVar

PROFIBUS DP master

İletim hızı, maks.12 Mbit/s

max. number of DP devices124

Servisler

— PG/OP haberleşmesiVar

— RoutingVar

— Global data communicationYok

— S7 basic communicationVar; I blocks only

— S7 communicationVar

— S7 communication, as clientYok

— S7 communication, as serverVar

— EquidistanceVar

— Eşzamanlı (isochronous) modVar; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP veya PROFINET IO

— SYNC/FREEZEVar

— activation/deactivation of DP devicesVar

— max. number of DP devices that can be activated/deactivated at the same time8

— Direct data exchange (slave-to-slave communication)Var; as subscriber

— DPV1Var

Address area

— Inputs, max.8 kB

— Outputs, max.8 kB

User data per DP device

— Inputs, max.244 bayt

— Outputs, max.244 bayt

PROFIBUS DP device

İletim hızı, maks.12 Mbit/s

automatic baud rate searchVar; yalnızca şununla: passive interface

Address area, max.32

User data per address area, max.32 bayt

Servisler

— PG/OP haberleşmesiVar

— RoutingVar; Only with active interface

— Global data communicationYok

— S7 basic communicationYok

— S7 communicationVar

— S7 communication, as clientYok

— S7 communication, as serverVar; Connection configured on one side only

— Direct data exchange (slave-to-slave communication)Var

— DPV1Yok

Transfer memory

— Inputs244 bayt

— Outputs244 bayt

2. Interface

Arayüz tipiPROFINET

İzoleliVar

İletim hızının otomatik algılanmasıVar; 10/100 Mbit/s

Otomatik anlaşma (autonegotiation)Var

Otomatik çaprazlama (autocrossing)Var

Change of IP address at runtime, supportedVar

Arayüz tipleri

RJ 45 (Ethernet)Var

Port sayısı2

Dahili switchVar

Protokoller

MPIYok

PROFINET IO kontrolcüsüVar; Also simultaneously with IO-Device functionality

PROFINET IO DeviceVar; Also simultaneously with IO Controller functionality

PROFINET CBAVar

PROFIBUS DP masterYok

PROFIBUS DP deviceYok

Açık IE haberleşmesiVar; Via TCP/IP, ISO on TCP, ve UDP

Web sunucusuVar

Ortam yedekliliğiVar

PROFINET IO kontrolcüsü

İletim hızı, maks.100 Mbit/s

Servisler

— PG/OP haberleşmesiVar

— RoutingVar

— S7 communicationVar; with loadable FBs, maks. configurable connections: 16, maks. number of instances: 32

— Eşzamanlı (isochronous) modVar; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP veya PROFINET IO

— IRTVar

— Paylaşımlı cihazVar

— Önceliklendirilmiş başlatmaVar

— Önceliklendirilmiş başlatmalı IO cihazı sayısı, maks.32

— Bağlanabilir IO cihazı sayısı, maks.128

— Of which IO devices with IRT, max.64

— Bunlardan hat üzerinde, maks.64

— Number of IO Devices with IRT and the option "high flexibility"128

— Bunlardan hat üzerinde, maks.61

— RT için bağlanabilir IO cihazı sayısı, maks.128

— Bunlardan hat üzerinde, maks.128

— Activation/deactivation of IO DevicesVar

— Eşzamanlı etkinleştirilebilen/devre dışı bırakılabilen IO cihazı sayısı, maks.8

— IO Devices changing during operation (partner ports), supportedVar

— Number of IO Devices per tool, max.8

— Device replacement without swap mediumVar

— Send cycles250 μs, 500 μs,1 ms; 2 ms, 4 ms (not in the case of IRT with "high flexibility" option)

— Güncelleme süresi250 µs to 512 ms (depending on the operating mode, see Manual "S7-300 CPU 31xC ve CPU 31x, technical Data" for more details)

Address area

— Inputs, max.8 kB

— Outputs, max.8 kB

— User data consistency, max.1.024 bayt

Servisler

— PG/OP haberleşmesiVar

— RoutingVar

— S7 communicationVar; with loadable FBs, maks. configurable connections: 16, maks. number of instances: 32

— Eşzamanlı (isochronous) modYok

— IRTVar

— PROFIenergyVar; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device

— Paylaşımlı cihazVar

— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2

Transfer memory

— Inputs, max.1.440 bayt; Per IO Controller with shared device

— Outputs, max.1.440 bayt; Per IO Controller with shared device

Submodules

— Number, max.64

— User data per submodule, max.1.024 bayt

PROFINET CBA

acyclic transmissionVar

cyclic transmissionVar

Açık IE haberleşmesi

Number of connections, max.16

Local port numbers used at the system end0, 20, 21, 25, 80, 102, 135, 161, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535

Keep-alive function, supportedVar

Protokoller

PROFIsafeVar

Ortam yedekliliği

— Switchover time on line break, typ.200 ms; PROFINET MRP

— Number of stations in the ring, max.50

Açık IE haberleşmesi

TCP/IPVar; via dahili PROFINET interface ve loadable FBs

— Number of connections, max.16

— Data length for connection type 01H, max.1.460 bayt

— Data length for connection type 11H, max.32.768 bayt

— several passive connections per port, supportedVar

ISO-on-TCP (RFC1006)Var; via dahili PROFINET interface ve loadable FBs

— Number of connections, max.16

— Veri uzunluğu, maks.32.768 bayt

UDPVar; via dahili PROFINET interface ve loadable FBs

— Number of connections, max.16

— Veri uzunluğu, maks.1.472 bayt

Web sunucusu

DestekleniyorVar

Kullanıcı tanımlı web sayfalarıVar

Number of HTTP clients5

Communication functions

PG/OP communicationVar

Data record routingVar

Global data communication

DestekleniyorVar

Number of GD loops, max.8

Number of GD packets, max.8

Number of GD packets, transmitter, max.8

Number of GD packets, receiver, max.8

Size of GD packets, max.22 bayt

Size of GD packet (of which consistent), max.22 bayt

S7 basic communication

DestekleniyorVar

İş başına kullanıcı verisi, maks.76 bayt

User data per job (of which consistent), max.76 bayt; 76 bytes (with X_SEND veya X_RCV); 64 bytes (with X_PUT veya X_GET as server)

S7 haberleşmesi

DestekleniyorVar

Sunucu olarakVar

İstemci olarakVar; via dahili PROFINET interface ve loadable FB veya via CP ve loadable FB

İş başına kullanıcı verisi, maks.See online help of STEP 7 (shared parameters of the SFBs/FBs ve of the SFCs/FCs of S7 Communication)

S5 compatible communication

DestekleniyorVar; via CP ve loadable FC

PROFINET CBA (at set setpoint communication load)

Setpoint for the CPU communication load50 %

Number of remote interconnection partners32

number of master/device functions30

total of all master/device connections1.000

data length of all incoming master/device connections, max.4.000 bayt

data length of all outgoing master/device connections, max.4.000 bayt

Number of device-internal and PROFIBUS interconnections500

Data length of device-internal und PROFIBUS interconnections, max.4.000 bayt

Data length per connection, max.1.400 bayt

Remote interconnections with cyclic transmission

— Transmission frequency: Transmission interval, min.10 ms

— Number of incoming interconnections200

— Number of outgoing interconnections200

— Data length of all incoming interconnections, max.2.000 bayt

— Data length of all outgoing interconnections, max.2.000 bayt

— Data length per connection, max.450 bayt

HMI variables via PROFINET (acyclic)

— Number of stations that can log on for HMI variables (PN OPC/iMap)3; 2x PN OPC/1x iMap

— HMI variable updating500 ms

— Number of HMI variables200

— Data length of all HMI variables, max.2.000 bayt

PROFIBUS proxy functionality

— supportedVar

— Number of linked PROFIBUS devices16

— Data length per connection, max.240 bayt; Slave-dependent

Bağlantı sayısı

Toplam32

usable for PG communication31

— reserved for PG communication1

— adjustable for PG communication, min.1

— adjustable for PG communication, max.31

usable for OP communication31

— reserved for OP communication1

— adjustable for OP communication, min.1

— adjustable for OP communication, max.31

usable for S7 basic communication30

— reserved for S7 basic communication0

— adjustable for S7 basic communication, min.0

— adjustable for S7 basic communication, max.30

usable for S7 communication16

— reserved for S7 communication0

— adjustable for S7 communication, min.0

— adjustable for S7 communication, max.16

total number of instances, max.32

usable for routingX1 as MPI: maks. 10; X1 as DP master: maks. 24; X1 as DP slave (active): maks. 14; X2 as PROFINET: 24 maks.

S7 message functions

Number of login stations for message functions, max.32; Depending on the configured connections for PG/OP ve S7 basic communication

Process diagnostic messagesVar

simultaneously active Alarm_S blocks, max.300

Test commissioning functions

Status blockVar; Up to 2 simultaneously

Single stepVar

Number of breakpoints4

Durum/kontrol

Durum/kontrol değişkeniVar

DeğişkenlerInputs, outputs, memory bits, DB, times, counters

Number of variables, max.30

— of which status variables, max.30

— of which control variables, max.14

Zorlama (force)

Zorlama (force)Var

Forcing, variablesInputs, outputs

Number of variables, max.10

Tanılama arabelleği

MevcutVar

Number of entries, max.500

— can be setYok

— of which powerfail-proof100; Only the last 100 entries are retained

Number of entries readable in RUN, max.499

— can be setVar; From 10 to 499

— preset10

Service data

Can be read outVar

Standartlar, onaylar, sertifikalar

CE işaretiVar

UL onayıVar; File E239877

RCM (eski adıyla C-TICK)Var

KC onayıVar

EAC (formerly Gost-R)Var

Use in hazardous areas

ATEX markingVar

Railway application

EN 50155Yok

Çalışma ortam sıcaklığı

min.-25 °C; = Tmin

maks.60 °C; = Tmax

Depolama/taşıma ortam sıcaklığı

min.-40 °C

maks.70 °C

Deniz seviyesine göre çalışma yüksekliği

Installation altitude above sea level, max.2.000 m

Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)

Bağıl nem

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine

— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine

— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Configuration software

STEP 7Var; V5.5 veya üstü

Programming

Command setsee instruction list

Nesting levels8

System functions (SFC)see instruction list

System function blocks (SFB)see instruction list

Programlama dili

— LADVar

— FBDVar

— STLVar

— SCLVar

— CFCVar

— GRAPHVar

— HiGraph®Var

Know-how koruması

Kullanıcı programı/şifre korumasıVar

Block encryptionVar; With S7 block Privacy

Ölçüler

Genişlik40 mm

Yükseklik125 mm

Derinlik130 mm

Ağırlık

Ağırlık, yaklaşık340 g

İlgili Ürünler

MFR #MTS32-150M

SKU #YLSSJCSBTRLX2P7

İlgili Aramalar

Siemens 6AG1317-2FK14-2AB0 fiyatSiemens 6AG1317-2FK14-2AB0 teklif alSiemens 6AG1317-2FK14-2AB0 satın al6AG1317-2FK14-2AB0 fiyat6AG1317-2FK14-2AB0 stok durumuSiemens yedek parçaSiemens 6AG1317-2FK14-2AB0 muadilSiemens 6AG1317-2FK14-2AB0 teknik özellikler

Çerez Kullanımı

Siemens 6AG1317-2FK14-2AB0

Ürün Hakkında

Siemens 6AG1317-2FK14-2AB0

Teknik Özellikler

İlgili Ürünler

1FY2901-0EB00

1FN3050-8SA00-0AA0

1FN3100-8SA00-0AA0

1FN3150-8SA00-0AA0

1FN3300-8SA00-0AA0

1FN3450-8SA00-0AA0

1FN3600-8SA00-0AA0

1FN3900-8SA00-0AA0

1FY2105-0AA00

1FY2105-4AA00

Öne Çıkan Ürünler

MGPL25TN-200BZ-XC9

VQ1200-51-Q

VFSWDM3546T-5E

CDJ2L16-125Z-B

MGPM25-100Z-XC4

AR30-N02E-1Z-B

AC20A-01G-V-1-B FR/L COMBO MODULAR

AC40B-N04G-RZ-B F/R COMBO MODULAR

NCDGFN25-0100

MTS32-150M

İlgili Aramalar
