Siemens
1FY2901-0EB00
MFR #1FY2901-0EB00
SKU #YLSJVRF7YVE9X
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

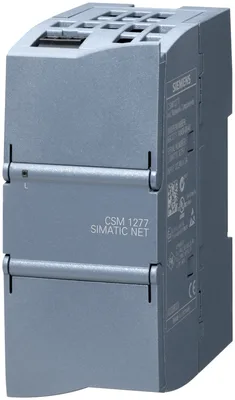

Siemens 6AG1277-1AA10-2AA0
SIPLUS NET CSM 1277 -40...+70 °C ile conformal coating based on 6GK7277-1AA10-0AA0 Compact anahtar modül CSM 1277 bağlantı SIMATIC S7-1200 ve en çok 3 further nodes to Industrial Ethernet ile 10/100 Mbit/s
product brand nameSIPLUS
product type designationCSM 1277
transfer rate10, 100 Mbit/s
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust; *
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
protection class IPIP20
Ürün Hakkında
SIPLUS NET CSM 1277 -40...+70 °C ile conformal coating based on 6GK7277-1AA10-0AA0 Compact anahtar modül CSM 1277 bağlantı SIMATIC S7-1200 ve en çok 3 further nodes to Industrial Ethernet ile 10/100 Mbit/s
Siemens 6AG1277-1AA10-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSIPLUS
product type designationCSM 1277
transfer rate
transfer rate10, 100 Mbit/s
ambient conditions
ambient temperature / in horizontal mounting position / during operation-40... +70 °C; > 60 °C ambient temperature on both sides 25 mm clearance on the left ve right of the module to adjacent devices
installation altitude / at height above sea level / maximum5000 m
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna); class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (Severity degree 3); *
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust; *
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place on the unused interfaces during operation!
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; conformal coating, class A
protection class IPIP20
design, dimensions and weights
width75 mm
height100 mm
depth45 mm
net weight0,2 kg
product functions / management, configuration, engineering
switch-managedYok
standards, specifications, approvals
CE markingVar
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
product functions / general
MTBF273 a
