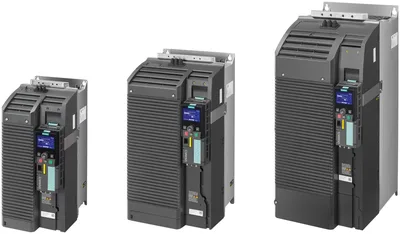

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.
Siemens 6AG1244-0BB12-2BA1
SIPLUS G120 CU240E-2 USS based on 6SL3244-0BB12-1BA1 ile conformal coating, -20…+55 °C, kontrol ünitesi CU240E-2 USS E-type ile Safety dahili STO RS-485 arayüz, USS protocol 6 DI, 3 DQ, 2 AI, 2 AQ, max. 1F-DI PTC/KTY arayüz USB ve SD/MMC arayüz koruma sınıfı IP20 olmadan güç modül
Ürün tipi tanımıCU240E-2 USS
based on6SL3244-0BB12-1BA1
V/f control with ECO mode linear/squareVar
V/f control with flux current controlVar
Vector control with encoderYok
Vector control without encoderVar
Ürün Hakkında
SIPLUS G120 CU240E-2 USS based on 6SL3244-0BB12-1BA1 ile conformal coating, -20…+55 °C, kontrol ünitesi CU240E-2 USS E-type ile Safety dahili STO RS-485 arayüz, USS protocol 6 DI, 3 DQ, 2 AI, 2 AQ, max. 1F-DI PTC/KTY arayüz USB ve SD/MMC arayüz koruma sınıfı IP20 olmadan güç modül
Siemens 6AG1244-0BB12-2BA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCU240E-2 USS
based on6SL3244-0BB12-1BA1
Product function
V/f control with linear/square parameterization capabilityVar
V/f control with ECO mode linear/squareVar
V/f control with flux current controlVar
Vector control with encoderYok
Vector control without encoderVar
Besleme gerilimi
Operating voltage from Power Module24 V
Operating voltage from external power supply, min.20,4 V
Operating voltage from external power supply, max.28,8 V
Giriş akımı
Akım tüketimi, maks.0,5 A
Güç kaybı
Power loss, max.5,5 W
Dijital girişler
Dijital giriş sayısı6; Optically isolated, free reference potential (own potential group), NPN/PNP-logic selectable via wiring
With fail-safe1; Use of 2x DI Standard
Dijital çıkışlar
As transistor1
As relay change-over contact2
Analog girişler
Analog giriş sayısı2; the differential analog inputs can be configured as supplementary digital inputs
Type of analog inputDifferential input
RemarkSwitchable between voltage (-10... +10 V) ve current (0/4... 20 mA) using a DIP switch
Input voltage with signal "0" to "1"4 V
Input voltage with signal "1" to "0"1,6 V
Analog çıkışlar
Analog çıkış sayısı2
Analog value generation for the inputs
A/D resolution10 bit
Arayüzler
PROFINET arayüz sayısı0
Number of RS 485 interfaces1
Protokoller
PROFIBUSYok
Isolation
Type of protective insulationPELV according to EN 50178, safe disconnection from the mains by double/reinforced isolation
Koruma derecesi ve sınıfı
IP koruma sınıfıIP20
Standartlar, onaylar, sertifikalar
Certificate of suitabilityCE / TÜV
Çalışma ortam sıcaklığı
min.-20 °C; = Tmin
maks.55 °C; = Tmax
min. [°F]-4 °F
max. [°F]131 °F
RemarkA derating of 3 K/1.000 m has to be applied to the Control Units from an installation altitude of 1.000 m above sea level
Depolama/taşıma ortam sıcaklığı
Storage, min.-40 °C
Storage, max.70 °C
Storage, min. [°F]-40 °F
Storage, max. [°F]158 °F
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Yok
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Connection method
Connectable conductor cross-section for signal line, min.0,05 mm²
Connectable conductor cross-section for signal line, max.1,5 mm²
Connectable conductor cross-section for AWG cables, min.30
Connectable conductor cross-section for AWG cables, max.16
Ölçüler
Genişlik73 mm
Yükseklik199 mm
Derinlik46 mm
Ağırlık
Weight (without packaging)0,49 kg
