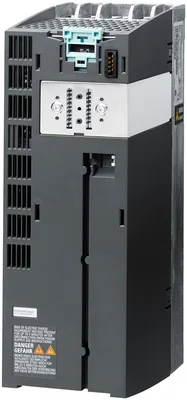

Siemens 6AG1210-1PE21-2UL0
yedek only, no repair. IP20-FSA-U-400V 7,5 kW based on 6SL3210-1PE21-8UL0 ile conformal coating, -20…+50 °C, unfiltered ile dahili braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz güç high aşırı yük: 5,5 kW at 200% 3 s,150% 57 s,100% 240 s güç rating low aşırı yük: 7,5 kW at 150% 3 s,110% 57 s,100% 240 s 291x 100x 165 (HxWxD), tasarım FSB, koruma sınıfı IP20 olmadan CU ve çalışma ünite released as of CU FW sürüm V4.7 HF8
Ürün tipi tanımıPM240-2
Product versionFSB 7,5 kW
Design of the converterFSB
based on6SL3210-1PE21-8UL0
Undervoltage protectionVar
Overvoltage protectionVar
Ürün Hakkında
yedek only, no repair. IP20-FSA-U-400V 7,5 kW based on 6SL3210-1PE21-8UL0 ile conformal coating, -20…+50 °C, unfiltered ile dahili braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz güç high aşırı yük: 5,5 kW at 200% 3 s,150% 57 s,100% 240 s güç rating low aşırı yük: 7,5 kW at 150% 3 s,110% 57 s,100% 240 s 291x 100x 165 (HxWxD), tasarım FSB, koruma sınıfı IP20 olmadan CU ve çalışma ünite released as of CU FW sürüm V4.7 HF8
Siemens 6AG1210-1PE21-2UL0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıPM240-2
Product versionFSB 7,5 kW
Design of the converterFSB
based on6SL3210-1PE21-8UL0
Protection function
Undervoltage protectionVar
Overvoltage protectionVar
Overload protectionVar
Ground-fault protectionVar
short-circuit protectionVar
Stall protectionVar
With blocked rotorVar
Temperature monitor for motorVar
Temperature monitor for converterVar
Parameter lockingVar
Giriş gerilimi
Type of input voltageAC
Mains filter
MevcutYok
Giriş akımı
Input current with low overload22,2 A
Input current with high overload19,8 A
Çıkış gerilimi
Output voltage in relation to input voltage, min.0 %
Output voltage in relation to input voltage, max.95 %
Pulse frequency4 kHz
Çıkış akımı
Output current, max.27 A
Output current without overload18 A
Output current with low overload18 A
Output current with high overload13,2 A
Güç kaybı
Power loss, max.0,2 kW
Power electronics
emitted active power with low overload7,5 kW
emitted active power with high overload5,5 kW
Efficiency0,97
Type of duty cycle duration with low overload1.1x rated output current (i.e. 110 % overload) for 57 s with a cycle time of 300 s; 1.5x rated output current (i.e. 150 % overload) for 3 s with a cycle time of 300 s
Type of duty cycle duration with high overload1.5x output current rating (i.e. 150 % overload) for 57 s with a cycle time of 300 s; 2x output current rating (i.e. 200 % overload) for 3 s with a cycle time of 300 s
Cooling methodInternal air cooling
Cooling air flow0,0092 m³/s
Short-time withstand current (SCCR) of the entire control cabinet in accordance with UL 508A65 kA
Isolation
Degree of pollution2 according to EN 61800-5-1
Koruma derecesi ve sınıfı
IP koruma sınıfıIP20
Equipment protection class according to EN 61800-5-1Class I (with protective bonding circuit) ve Class III (PELV)
Touch protection according to EN 61800-5-1Assuming use as prescribed
Standartlar, onaylar, sertifikalar
Certificate of suitabilityCE / TÜV
Standard for EMC according to EN 61800-3the EMC product standard EN 61800-3 does not apply directly to a frequency inverter but to a PDS (Power Drive System), which comprises the complete circuitry, motor ve cables in addition to the inverter
Çalışma ortam sıcaklığı
min.-20 °C; = Tmin
maks.55 °C; = Tmax
Depolama/taşıma ortam sıcaklığı
Storage, min.-25 °C
Storage, max.55 °C
Storage, min. [°F]-13 °F
Storage, max. [°F]131 °F; Class 1K3 acc. to EN 60721-3-1
Transportation, min.-40 °C
Transportation, max.70 °C
Transport, min. [°F]-40 °F
Transport, max. [°F]158 °F; Class 2K3 according to EN 60721-3-2
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level without derating, max.1.000 m
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
Titreşim
Vibration frequency with constant acceleration during operation according to EN 60068-2-6, min.58 Hz
Vibration frequency with constant acceleration during operation according to EN 60068-2-6, max.200 Hz; Constant acceleration = 9,81 m/s² (1 g)
Vibration frequency with constant deflection during operation according to EN 60068-2-6, min.10 Hz
Vibration frequency with constant deflection during operation according to EN 60068-2-6, max.58 Hz; Constant deflection 0,075 mm
Oscillation frequency during transport in accordance with EN 60721-3-2Class 2M3
Şok testi
Shock load during operation(15x g)/11 ms
Shock acceleration during operation according to EN 60068-2-27147 m/s²
Shock acceleration during transport according to EN 60721-3-2Class 2M3
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Yok
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Cables
Cable length for motor, shielded, max.50 m
Connection method
Design of electrical connection of motorPlug-in screw terminals
connectable cable cross-section for motor supply line, min.1,5 mm²
connectable cable cross-section for motor supply line, max.6 mm²
Type of electrical connection for mains supply linePlug-in screw terminals
connectable cable cross-section for mains supply line, min.1,5 mm²
connectable cable cross-section for mains supply line, max.6 mm²
Design of electrical connection for the PE conductorPlug-in screw terminals
Ölçüler
Genişlik100 mm
Yükseklik292 mm
Derinlik165 mm
Ağırlık
Weight (without packaging)3 kg
Other
Sound pressure level (1 m), max.62 dB
Brake designDC braking, compound braking, resistance braking with dahili brake chopper (for size FSGX optional)
