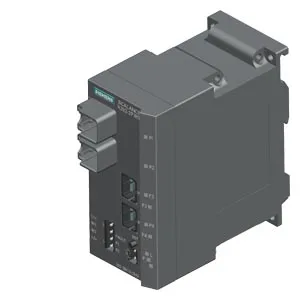

Siemens 6AG1202-2BH10-2BA3
SIPLUS NET SCALANCE X202-2P IRT based on 6GK5202-2BH10-2BA3 ile conformal coating, -40…+60 °C, managed IE IRT anahtar, 2x 10/100 Mbps RJ45 ports, 2x 100 Mbps POF SC RJ ports, error sinyalizasyon kontak ile set pushbutton, yedekli besleme besleme, PROFINET IO cihaz, network management, redundancy yönetici dahili, dahil elektronik manuel on CD C-PLUG optional
product brand nameSIPLUS
product type designationX202-2P IRT
transfer rate10, 100 Mbit/s
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
Ürün Hakkında
SIPLUS NET SCALANCE X202-2P IRT based on 6GK5202-2BH10-2BA3 ile conformal coating, -40…+60 °C, managed IE IRT anahtar, 2x 10/100 Mbps RJ45 ports, 2x 100 Mbps POF SC RJ ports, error sinyalizasyon kontak ile set pushbutton, yedekli besleme besleme, PROFINET IO cihaz, network management, redundancy yönetici dahili, dahil elektronik manuel on CD C-PLUG optional
Siemens 6AG1202-2BH10-2BA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSIPLUS
product type designationX202-2P IRT
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment2
number of 100 Mbit/s SC-RJ-ports / for POF FOC / with push-pull connection system2
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4,8 W
supply voltage / 1 / voltage range18... 32
consumed current / 1 / maximum0,2 A
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage2,5 A (cannot be replaced by user)
ambient conditions
ambient temperature / in horizontal mounting position / during operation-40... +60 °C
installation altitude / at height above sea level / maximum5000 m
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna); class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (Severity degree 3); *
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust; *
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place on the unused interfaces during operation!
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; conformal coating, class A
protection class IPIP30
design, dimensions and weights
designcompact
width60 mm
height125 mm
depth124 mm
net weight0,78 kg
35 mm top hat DIN rail mountingVar
wall mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingYok
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
port mirroringYok
multiport mirroringYok
with IRT / PROFINET IO switchVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classC
network load class / according to PROFINETII
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
BOOTPYok
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
product functions / DHCP
DHCP clientVar
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol for Planned Duplication (MRPD)Var
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
product functions / security
SSHVar
product functions / time
SICLOCK supportVar
NTPYok
SNTPVar
standards, specifications, approvals
CE markingVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4:2001 (Class A)
for immunity to EMCEN 61000-6-4:2001
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50155Yok
railway application in accordance with EN 50124-1Yok
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total179,66 kg
during manufacturing29,12 kg
during operation150,31 kg
after end of life0,23 kg
product functions / general
MTBF83,72 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing29,12 kg
global warming potential [CO2 eq] / during operation150,31 kg
global warming potential [CO2 eq] / after end of life0,23 kg
global warming potential [CO2 eq] / total179,66 kg
