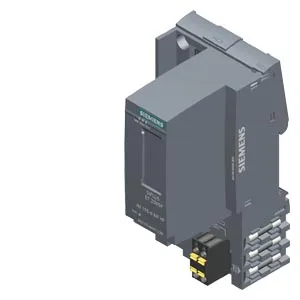

Siemens 6AG1155-6MU01-2CN0
SIPLUS ET 200SP IM155-6 MF HF based on 6ES7155-6MU01-0CN0 ile conformal coating -40...+60 °C multi-fieldbus arayüz modülü PN IO, Modbus TCP, max. 64 I/O modülleri ve 16 ET 200AL modülleri, S2 redundancy, multi hot swap, 0,25 ms, isochronous mode, optional PN kablo grip PN security sınıf 1 incl. server modül (6AG1193-6PA00-7AA0)
Ürün tipi tanımıIM 155-6 MF HF
Firmware sürümüV6.4.1
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0313H
based on6ES7155-6MU01-0CN0
Ürün Hakkında
SIPLUS ET 200SP IM155-6 MF HF based on 6ES7155-6MU01-0CN0 ile conformal coating -40...+60 °C multi-fieldbus arayüz modülü PN IO, Modbus TCP, max. 64 I/O modülleri ve 16 ET 200AL modülleri, S2 redundancy, multi hot swap, 0,25 ms, isochronous mode, optional PN kablo grip PN security sınıf 1 incl. server modül (6AG1193-6PA00-7AA0)
Siemens 6AG1155-6MU01-2CN0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIM 155-6 MF HF
Firmware sürümüV6.4.1
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0313H
Manufacturer ID according to ODVA (VendorID)0x04E3
Device ID according to ODVA (Product code)0FA2H
based on6ES7155-6MU01-0CN0
Product function
I&M dataVar; I&M0 to I&M4
Module swapping during operation (hot swapping)Var; Multi-hot swapping
Isochronous modeVar
IRTVar
Tool changerVar; Docking station ve docking unit
Local coupling, IO dataVar
— Number of coupling modules6; 1x output + maks. 5x input
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
PROFINET from GSD version/GSD revisionGSDML V2.45
Configuration control
via datasetVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Short-circuit protectionVar
Mains buffering
Mains/voltage failure stored energy time10 ms
Giriş akımı
Akım tüketimi (nominal değer)550 mA
Akım tüketimi, maks.650 mA
Ani çekiş akımı, maks.1 A
I²t0,05 A²·s
Güç kaybı
Güç kaybı, tipik2 W
Address space per module
Address space per module, max.288 bayt; For input ve output data respectively
Address space per station
Address space per station, max.1.440 bayt
Rack
Quantity of operable ET 200SP modules, max.64
Submodules
Number of submodules per station, max.256
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1; 2 ports (switch)
Arayüz tipleri
RJ 45 (Ethernet)Var; with BusAdapter
Port sayısı2; with BusAdapter
Dahili switchVar
BusAdapter (PROFINET)Var
Protokoller
PROFINET IO DeviceVar
Açık IE haberleşmesiVar
Ortam yedekliliğiVar; PROFINET MRP client
Servisler
— IRTVar; 250 µs to 4 ms in 125 µs frame
— Dinamik çerçeve paketleme (DFP)Var
— PROFIenergyVar
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.14; 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master
RJ 45 (Ethernet)
Transmission procedurePROFINET with 100 Mbit/s full duplex (100BASE-TX)
100 MbpsVar
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeVar
PROFIBUSYok
EtherNet/IPVar
Modbus TCPVar
Bağlantı sayısı
Number of MtM communication relationships/connections, max.16
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var; NAP S2
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDVar
Servisler
— CIP Implicit MessagingVar
— CIP Explicit MessagingVar
— CIP SafetyYok
— Configuration control via Explicit MessagingYok
— Paylaşımlı cihazVar; 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Address area
— Address space per module, max.288 bayt; (246 bayt outputs / 288 bayt inputs)
— ForwardOpen (Class1 & 32 bit Header)500 bayt; (246 bayt outputs / 500 bayt inputs)
— LargeForwardOpen (Class3)4.002 bayt
Connections
— Number of rack connections2
Servisler
— read coils (code=1)Var
— read discrete inputs (code=2)Var
— Read Holding Registers (Code=3)Var
— write single coil (code=5)Var
— write multiple coils (code=15)Var
— Write Multiple Registers (Code=16)Var
— Parameter change by masterVar
— Modbus TCP Security ProtocolYok
Address space per station
— Address space per station, max.500 bayt; (246 bayt outputs / 500 bayt inputs)
— Access-consistent address space250 bayt; (246 bayt outputs / 250 bayt inputs)
Updating time
— I/O request interval2 ms
Connections
— number of connections per device9; (1x inputs / 2x outputs / 4x volatile registers / 2x Device Info)
Açık IE haberleşmesi
TCP/IPVar
UDPVar
SNMPVar
LLDPVar
ARPVar
IGMPVar
MulticastVar
BroadcastVar
IPv4Var
IPv6Yok
Isochronous mode
EquidistanceVar
shortest clock pulse250 µs
max. cycle4 ms
Bus cycle time (TDP), min.250 µs
Jitter, max.1 µs
Interrupts/diagnostics/status information
Status indicatorVar
AlarmsVar
Diagnostics functionVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
NS LEDVar; green/red LED
MS LEDVar; green/red LED
IO LEDVar; red-green-yellow LED
Connection display LINK TX/RXVar; 2x green link LEDs on BusAdapter
Potential separation
between backplane bus and electronicsYok
between PROFINET and all other circuitsVar; 1500 V AC (type test)
between supply and all other circuitsYok
Permissible potential difference
between different circuitsSafety extra low voltage SELV
Isolation
Isolation tested with707 V DC (type test)
Standartlar, onaylar, sertifikalar
Network loading class3
Security
PROFINET Security Class1
signed firmware updateVar
Secure BootYok
securely removing dataVar
data integrityVar
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m; restrictions for installation altitudes > 2.000 m, see ET 200SP system manual
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-6Var; class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
ET-Connection
via BU/BA SendVar; + 16 ET 200AL modules
Mechanics/material
Strain reliefVar; Optional
Ölçüler
Genişlik50 mm
Yükseklik117 mm
Derinlik74 mm
Ağırlık
Ağırlık, yaklaşık120 g; without BusAdapter
Aksesuarlar 13
Siemens 6AG1155-6MU01-2CN0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6AA00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6AG1193-6AB00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6AG1193-6PA00-7AA0 | Yedek parça · spare part | |
| 6ES7193-6MR00-0AA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0BA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0CA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0DA0 | Zorunlu ek ürün · Mounting rail | |
| 6AG1193-6AG20-2AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG1193-6AM00-7AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG1193-6AP00-2AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG1193-6AG00-2AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG1193-6AR00-7AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG1193-6AF00-7AA0 | Zorunlu ek ürün · BusAdapter |
