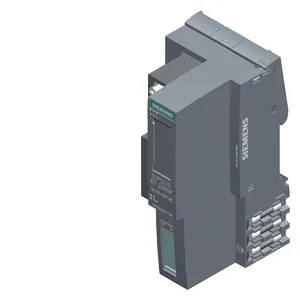

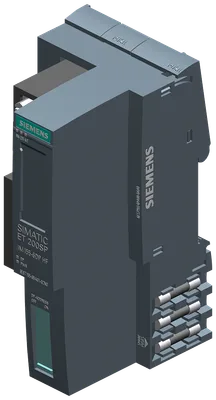

Siemens 6AG1155-6BA01-7CN0
SIPLUS ET 200SP IM155-6DP HF based on 6ES7155-6BA01-0CN0 ile conformal coating, -40…+70 °C, bundle PROFIBUS IM, max. 32 I/O modülleri ve 16 ET 200AL modülleri, multi hot swap, bundle consists of: arayüz modülü (6AG1155-6BU01-7CN0), server modül (6AG1193-6PA00-7AA0), PROFIBUS plug
Ürün tipi tanımıIM 155-6 DP HF
FW update possibleVar
based on6ES7155-6BA01-0CN0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
via datasetVar
Ürün Hakkında
SIPLUS ET 200SP IM155-6DP HF based on 6ES7155-6BA01-0CN0 ile conformal coating, -40…+70 °C, bundle PROFIBUS IM, max. 32 I/O modülleri ve 16 ET 200AL modülleri, multi hot swap, bundle consists of: arayüz modülü (6AG1155-6BU01-7CN0), server modül (6AG1193-6PA00-7AA0), PROFIBUS plug
Siemens 6AG1155-6BA01-7CN0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIM 155-6 DP HF
FW update possibleVar
based on6ES7155-6BA01-0CN0
Product function
I&M dataVar; I&M0 to I&M3
Module swapping during operation (hot swapping)Var; Multi-hot swapping
Isochronous modeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Configuration control
via datasetVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Mains buffering
Mains/voltage failure stored energy time10 ms
Giriş akımı
Akım tüketimi, maks.335 mA
Ani çekiş akımı, maks.1,6 A
I²t0,038 A²·s
Güç kaybı
Güç kaybı, tipik1,5 W
Address space per module
Address space per module, max.32 bayt; per input / output
Address space per station
Address space per station, max.244 bayt; per input / output
Rack
Quantity of operable ET 200SP modules, max.32
Quantity of operable ET 200AL modules, max.16
Arayüzler
Number of PROFIBUS interfaces1
Arayüz tipleri
RS 485Var; 1 dahili RS 485 socket
Output current of the interface, max.90 mA
Protokoller
PROFIBUS DP deviceVar
RS 485
İletim hızı, maks.12 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerYok
PROFIsafeVar
PROFIBUSVar
EtherNet/IPYok
Modbus TCPYok
Açık IE haberleşmesi
TCP/IPYok
Servisler
— SYNC capabilityVar
— FREEZE capabilityVar
— DPV0Var
— DPV1Var
Interrupts/diagnostics/status information
Status indicatorVar
AlarmsVar
Diagnostics functionVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Connection display DPVar; green DP LED
Potential separation
between backplane bus and electronicsYok
between PROFIBUS DP and all other circuit componentsVar
between supply and all other circuitsYok
Permissible potential difference
between different circuitsSafety extra low voltage SELV
Isolation
Isolation tested with707 V DC (type test)
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-6Var; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
ET-Connection
via BU/BA SendVar; + 16 ET 200AL modules
Ölçüler
Genişlik50 mm
Yükseklik117 mm
Derinlik74 mm
Ağırlık
Ağırlık, yaklaşık150 g
Aksesuarlar 10
Siemens 6AG1155-6BA01-7CN0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6AA00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6AG1193-6AB00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6AG1193-6PA00-7AA0 | Yedek parça · spare part | |
| 6ES7193-6MR00-0AA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0BA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0CA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0DA0 | Zorunlu ek ürün · Mounting rail | |
| 6AG1193-6AM00-7AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG1193-6AR00-7AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG1193-6AF00-7AA0 | Zorunlu ek ürün · BusAdapter |
