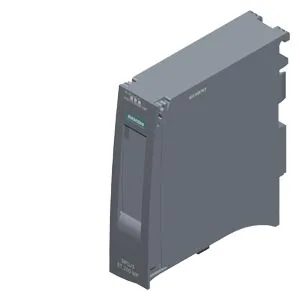

Siemens 6AG1155-5MU00-7CN0
SIPLUS ET 200MP IM155-5 MF HF based on 6ES7155-5MU00-0CN0 ile conformal coating -40...+70 °C flexible ports via plug-in SIPLUS BusAdapter (sold separately), max. 30 I/O modülleri, multi-hot- swap ile active backplane (sold separately), IRT ile 250 µs, shared cihaz ile 4 controllers (1440 bytes each), 256 bytes per I/O modül, MRP, MRPD, S2 redundancy, PN security sınıf 1, optional kablo grip (sold separately)
Ürün tipi tanımıIM 155-5 MF HF
Firmware sürümüV5.3.1
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0312H
based on6ES7155-5MU00-0CN0
Ürün Hakkında
SIPLUS ET 200MP IM155-5 MF HF based on 6ES7155-5MU00-0CN0 ile conformal coating -40...+70 °C flexible ports via plug-in SIPLUS BusAdapter (sold separately), max. 30 I/O modülleri, multi-hot- swap ile active backplane (sold separately), IRT ile 250 µs, shared cihaz ile 4 controllers (1440 bytes each), 256 bytes per I/O modül, MRP, MRPD, S2 redundancy, PN security sınıf 1, optional kablo grip (sold separately)
Siemens 6AG1155-5MU00-7CN0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIM 155-5 MF HF
Firmware sürümüV5.3.1
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0312H
Manufacturer ID according to ODVA (VendorID)0x04E3
Device ID according to ODVA (Product code)0x0FA3
based on6ES7155-5MU00-0CN0
Product function
I&M dataVar; I&M0 to I&M4
Module swapping during operation (hot swapping)Var; In combination with active backplane bus
Isochronous modeVar
IRTVar
Tool changerVar; Docking station
Local coupling, IO dataVar
— Number of coupling modules6; 1x output + maks. 5x input
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
PROFINET from GSD version/GSD revisionGSDML V2.45
Configuration control
via datasetVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Short-circuit protectionVar
Mains buffering
Mains/voltage failure stored energy time10 ms
Giriş akımı
Akım tüketimi (nominal değer)0,16 A; 24 V DC ve without load
Akım tüketimi, maks.1,2 A
Ani çekiş akımı, maks.13 A
I²t0,1 A²·s
Power
Infeed power to the backplane bus16 W
Power consumption from the backplane bus3,4 W; in case of operation with separate system power supply to the left of IM
Güç kaybı
Güç kaybı, tipik4,3 W
Address space per module
Address space per module, max.256 bayt; For input ve output data respectively
Address space per station
Address space per station, max.1.440 bayt; For input ve output data respectively
Donanım yapılandırması
Integrated power supplyVar; 16 W
System power supply can be plugged in to left of IMVar; yalnızca şununla: design with U-connectors
Number of permissible power segments3; incl. interface module
Rack
Modules per rack, max.30; I/O modules
Submodules
Number of submodules per station, max.256; 9 per I/O module
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1; 2 ports (switch)
Arayüz tipleri
RJ 45 (Ethernet)Var; with BusAdapter
Port sayısı2; with BusAdapter
Dahili switchVar
BusAdapter (PROFINET)Var; BA 2x RJ45, BA 2x FC, BA 2x M12
Protokoller
PROFINET IO DeviceVar
Açık IE haberleşmesiVar
Ortam yedekliliğiVar; PROFINET MRP client / HRP client
Servisler
— IRTVar; 250 µs to 4 ms in 125 µs frame
— Dinamik çerçeve paketleme (DFP)Yok
— PROFIenergyYok
— Önceliklendirilmiş başlatmaYok
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.4; for multi-fieldbus mixed operation: 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master
RJ 45 (Ethernet)
Transmission procedurePROFINET with 100 Mbit/s full duplex (100BASE-TX)
100 MbpsVar
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeVar
PROFIBUSYok
EtherNet/IPVar
Modbus TCPVar
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var; NAP S2
— on S7-1500R/HVar
— on S7-400HVar; use GSD file
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDVar
Servisler
— CIP Implicit MessagingVar
— CIP Explicit MessagingVar
— CIP SafetyYok
— Configuration control via Explicit MessagingYok
— Paylaşımlı cihazVar; for multi-fieldbus mixed operation: 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Address area
— Address space per module, max.256 bayt; 246 bayt outputs / 256 bayt inputs
— ForwardOpen (Class1 & 32 bit Header)500 bayt; (246 bayt outputs / 500 bayt inputs)
— LargeForwardOpen (Class3)4.002 bayt
Connections
— Number of rack connections2
Servisler
— read coils (code=1)Var
— read discrete inputs (code=2)Var
— Read Holding Registers (Code=3)Var
— write single coil (code=5)Var
— write multiple coils (code=15)Var
— Write Multiple Registers (Code=16)Var
— Parameter change by masterVar
— Modbus TCP Security ProtocolYok
Address space per station
— Address space per station, max.500 bayt; (246 bayt outputs / 500 bayt inputs)
— Access-consistent address space250 bayt; (246 bayt outputs / 250 bayt inputs)
Updating time
— I/O request interval2 ms
Connections
— number of connections per device9; (1x inputs / 2x outputs / 4x volatile registers / 2x Device Info)
Açık IE haberleşmesi
TCP/IPVar
UDPVar
SNMPVar
LLDPVar
ARPVar
IGMPVar
MulticastVar
BroadcastVar
IPv4Var
IPv6Yok
Isochronous mode
EquidistanceVar
shortest clock pulse250 µs
max. cycle4 ms
Bus cycle time (TDP), min.250 µs
Jitter, max.1 µs
Interrupts/diagnostics/status information
Status indicatorVar
AlarmsVar
Diagnostics functionVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
NS LEDVar; green/red LED
MS LEDVar; green/red LED
IO LEDVar; red-green-yellow LED
Connection display LINK TX/RXVar; 2x green LEDs on BusAdapter
Potential separation
between backplane bus and electronicsYok
between PROFINET and all other circuitsVar; 1500 V AC (type test)
between supply and all other circuitsYok
Permissible potential difference
between different circuitsSafety extra low voltage SELV
Isolation
Isolation tested with707 V DC (type test)
Standartlar, onaylar, sertifikalar
Network loading class3
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]64,1 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]11,1 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]53,6 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.669 kg
Security
PROFINET Security Class1
signed firmware updateVar
Secure BootVar
securely removing dataVar
data integrityVar
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.40 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m; Restrictions for installation altitudes > 2.000 m, see manual
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
ET-Connection
via BU/BA SendYok
Mechanics/material
Strain reliefVar; Optional
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik129 mm
Ağırlık
Ağırlık, yaklaşık260 g; without BusAdapter
