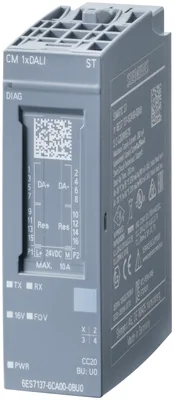

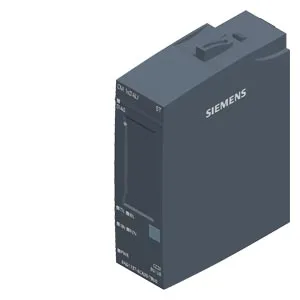

Siemens 6AG1137-6CA00-7BU0
SIPLUS ET 200SP CM DALI based on 6ES7137-6CA00-0BU0 ile conformal coating -40…+60 °C, DALI master modül, dahili DALI bus güç kaynağı 160 mA en çok 64 çalışma devices 63 controlgear units renk code CC20, suitable için BU tip U0
Ürün tipi tanımıCM 1xDALI
FW update possibleVar
based on6ES7137-6CA00-0BU0
usable BaseUnitsBU type U0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIPLUS ET 200SP CM DALI based on 6ES7137-6CA00-0BU0 ile conformal coating -40…+60 °C, DALI master modül, dahili DALI bus güç kaynağı 160 mA en çok 64 çalışma devices 63 controlgear units renk code CC20, suitable için BU tip U0
Siemens 6AG1137-6CA00-7BU0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCM 1xDALI
FW update possibleVar
based on6ES7137-6CA00-0BU0
usable BaseUnitsBU type U0
Color code for module-specific color-coded labelCC20
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi (nominal değer)163 mA
Current consumption, typ.92 mA
Akım tüketimi, maks.250 mA
Güç kaybı
Güç kaybı, tipik1,7 W
Address space per module
Inputs16 bayt
Outputs16 bayt
DALI
Integrated power supplyVar
— Supply current, min.160 mA
— Supply current, max.250 mA
— Can be switched offVar
Cable length, max.300 m
Standard according to DALIDALI V2 Multi-Master
Supported operating devices
— Fluorescent lamps (device type 0)Var
— Emergency lighting with single battery (device type 1)Var
— Discharge lamps (device type 2)Var
— Low-voltage halogen lamps (device type 3)Var
— Incandescent lamps (device type 4)Var
— Direct voltage (device type 5)Var
— LED modules (device type 6)Var
— Switching function (device type 7)Var
— Color control (device type 8)Var
— Further operating devicesVar; general device type
Supported input devices
— PushbuttonsVar
— Absolute input devicesVar
— Presence detectorVar
— Light sensorVar
— Further input devicesVar; general device type
Alarms
Diagnostic alarmVar
Diagnoses
short-circuitVar; On DALI bus
Tanılama gösterge LED’i
ERROR LED’iVar
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Receive RxDVar; green LED
Transmit TxDVar; green LED
Potential separation
between backplane bus and interfaceVar
Isolation
Isolation tested with3.000 V AC (type test)
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) veya configured slots to the left ve right of the module
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.3.000 m; Restrictions for installation altitudes > 2.000 m, see manual
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity degree 3)
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity degree 3).
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust
— Against mechanical environmental conditions acc. to EN 60721-3-6Var; class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Decentralized operation
to SIMATIC S7-1200Var; FW V4.0 veya üstü
to SIMATIC S7-1500Var
Ölçüler
Genişlik20 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık50 g
Aksesuarlar 2
Siemens 6AG1137-6CA00-7BU0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6BP00-7BU0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP00-7DU0 | Zorunlu ek ürün · BaseUnit |
