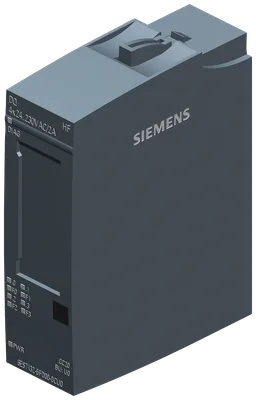

Siemens 6AG1132-6FD00-7CU0
SIPLUS ET 200SP DQ 4x24..230VAC/2A HF based on 6ES7132-6FD00-0CU0 ile conformal coating, -40…+70 °C, dijital çıkış modülü, suitable için BU tip U0, renk code CC20, channel diagnostics two alternative çalışma modes: DQ ve güç kontrol,
Ürün tipi tanımıDQ 4x24... 230 V AC/2 A HF
FW update possibleVar
based on6ES7132-6FD00-0CU0
usable BaseUnitsBU type U0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIPLUS ET 200SP DQ 4x24..230VAC/2A HF based on 6ES7132-6FD00-0CU0 ile conformal coating, -40…+70 °C, dijital çıkış modülü, suitable için BU tip U0, renk code CC20, channel diagnostics two alternative çalışma modes: DQ ve güç kontrol,
Siemens 6AG1132-6FD00-7CU0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıDQ 4x24... 230 V AC/2 A HF
FW update possibleVar
based on6ES7132-6FD00-0CU0
usable BaseUnitsBU type U0
Color code for module-specific color-coded labelCC20
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DQVar
DQ with energy-saving functionVar
PWMYok
OversamplingYok
MSOYok
Phase controlVar; Control area: 8,5... 100% of the phase angle
Trailing-edge phaseYok
Half-waveVar
Full-waveVar
Besleme gerilimi
Rated value (AC)230 V; 47... 63 Hz, maks. rate of change of frequency 1 mHz/s
permissible range, lower limit (AC)20,4 V
permissible range, upper limit (AC)264 V
Giriş akımı
Akım tüketimi (nominal değer)8 mA; without load
Çıkış gerilimi
Rated value (AC)230 V; 24V AC to 230V AC
Güç kaybı
Güç kaybı, tipik9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz
Address space per module
Inputs+ 1 bayt for QI information
Outputs8 bayt
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementtype C
Selection of BaseUnit for connection variants
1-wire connectionBU type U0
2-wire connectionBU type U0
3-wire connectionBU type U0 + Potential distributor module
Dijital çıkışlar
Type of digital outputTriac
Dijital çıkış sayısı4
Current-sinkingYok
Current-sourcingVar
Digital outputs, parameterizableVar
Short-circuit protectionYok; external fusing necessary
Open-circuit detectionVar; channel by channel
Response threshold, typ.1 mA; 40 V AC veya more
Overload protectionYok; A miniature fuse with 10 tripping current ve tripping characteristic "quick response" must be provided in the module supply
Controlling a digital inputVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.2 A; Maks. 4 A, see additional description in manual
with inductive load, max.2 A
Lamba yükünde, maks.100 W; Tungsten rating in accordance with UL; for thermistors with higher power ratings, see the notes in the manual
Çıkış gerilimi
“1” sinyali için, min.20,4 V
Çıkış akımı
“1” sinyali için nominal değer2 A
for signal "1" permissible range, min.10 mA
for signal "1" permissible range, max.4 A; note derating data in the manual
“0” sinyali için artık akım, maks.3 mA
Omik yükte çıkış gecikmesi
“0”dan “1”e, maks.40 ms; 2 AC cycles
“1”den “0”a, maks.20 ms; 1 AC cycle
Parallel switching of two outputs
for logic linksYok
for upratingYok
for redundant control of a loadVar
Anahtarlama frekansı
Omik yükte, maks.10 Hz; Applies to DQ mode; limited by line frequency in PC mode
with inductive load (acc. to IEC 60947-5-1, AC15), max.10 Hz; Applies to DQ mode; limited by line frequency in PC mode
Lamba yükünde, maks.1 Hz; Applies to DQ mode; limited by line frequency in PC mode
Total current of the outputs
Current per channel, max.2 A; Maks. 4 A, see additional description in manual
Current per module, max.8 A
horizontal installation
— 40 °C’ye kadar, maks.8 A; Applicable for current channels up to 2 A. For current channels between 2 A ve 4 A, note derating data in the manual
— up to 50 °C, max.6 A; Applicable for current channels up to 2 A. For current channels between 2 A ve 4 A, note derating data in the manual
— up to 60 °C, max.4 A; Applicable for current channels up to 2 A. For current channels between 2 A ve 4 A, note derating data in the manual
— up to 70 °C, max.2 A; Applicable for current channels up to 2 A
vertical installation
— up to 30 °C, max.8 A
— 40 °C’ye kadar, maks.6 A
— up to 50 °C, max.4 A
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Interrupts/diagnostics/status information
Diagnostics functionVar
Substitute values connectableVar
Alarms
Diagnostic alarmVar
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
Wire breakVar; channel by channel
short-circuitYok
Group errorVar
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsVar; red Fn LED
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
between the channels and the power supply of the electronicsYok
Isolation
Isolation tested with2.545 V DC/2 s (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-6Var; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik20 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık50 g
Aksesuarlar 2
Siemens 6AG1132-6FD00-7CU0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6BP00-7BU0 | Zorunlu ek ürün · BaseUnit | |
