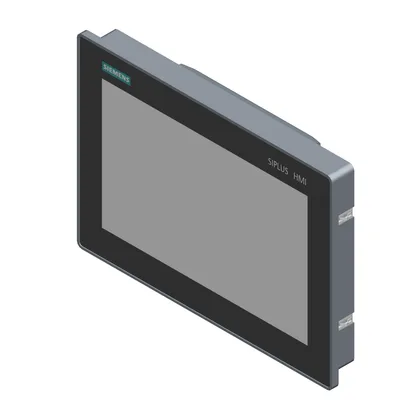

Siemens 6AG1123-3MB32-2AW0
SIPLUS HMI MTP1200, Unified temel panel, based on 6AV2123-3MB32-0AW0 ile conformal coating -20...+50 °C touch çalışma 12" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, configurable as of WinCC Unified temel V18 Update 3, contains open-source yazılım, which is provided free of charge see enclosed Blu-ray
Ürün tipi tanımıMTP1200 Unified Basic
based on6AV2123-3MB32-0AW0
Design of displayTFT
Screen diagonal12,1 in
Display width261,1 mm
Display height163,2 mm
Ürün Hakkında
SIPLUS HMI MTP1200, Unified temel panel, based on 6AV2123-3MB32-0AW0 ile conformal coating -20...+50 °C touch çalışma 12" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, configurable as of WinCC Unified temel V18 Update 3, contains open-source yazılım, which is provided free of charge see enclosed Blu-ray
Siemens 6AG1123-3MB32-2AW0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıMTP1200 Unified Basic
based on6AV2123-3MB32-0AW0
Display
Design of displayTFT
Screen diagonal12,1 in
Display width261,1 mm
Display height163,2 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution1.280 pixel
Vertical image resolution800 pixel
Backlighting
MTBF backlighting (at 25 °C)20.000 h; At 25°C
Backlight dimmableVar; 10... 100%
Keyboard
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar
Design as multi-touch screenVar
Monitor keyboardVar
Installation type/mounting
Mounting positiondikey
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,29 A
current consumption (for rated value of supply voltage), min.0,24 A
current consumption (for rated value of supply voltage), max.0,67 A
Akım tüketimi, maks.0,92 A; 19,2 V
Starting current inrush I²t0,36 A²·s
Power
Active power input, typ.11,1 W
Processor
Processor typeARM
Storage
FlashVar
RAMVar
Type of output
BuzzerYok
SpeakerYok
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces1; Gigabit Ethernet (IE/PN), RJ45
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of USB interfaces2; USB 2,0
Number of SD card slots0
Industrial Ethernet
Industrial Ethernet status LED2
Number of ports of the integrated switch1
Protokoller
PROFINETVar
PROFINET IOYok
MPIYok
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
Ortam yedekliliği
— MRPYok
Diğer protokoller
CANYok
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
NEMA (front)NEMA 4, NEMA 4x (when installed)
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Enclosure Type 12 at the frontYok
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]234 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]49 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]190 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-5.2 kg
Çalışma ortam sıcaklığı
At cold restart, min.0 °C
Operation (vertical installation)
— For vertical installation, min.-20 °C; = Tmin; Startup @ 0 °C
— For vertical installation, max.50 °C; = Tmax
Operation (max. tilt angle)
— At maximum tilt angle, min.-20 °C; = Tmin; Startup @ 0 °C
— At maximum tilt angle, max.40 °C; = Tmax
Operation (vertical installation, portrait format)
— For vertical installation, min.-20 °C; = Tmin; Startup @ 0 °C
— For vertical installation, max.40 °C; = Tmax
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.-20 °C; = Tmin; Startup @ 0 °C
— At maximum tilt angle, max.35 °C; = Tmax
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Operating systems
proprietaryVar
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Recipe managementVar
Configuration software
WinCC Advanced (TIA Portal)Var
WinCC Professional (TIA Portal)Var
WinCC Unified Basic Engineering (TIA Portal)Var
WinCC Unified Comfort Engineering (TIA Portal)Var
WinCC Unified PC Engineering (TIA Portal)Var
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC Unified
LibrariesVar
Applications/optionsYok
Number of Visual Basic ScriptsYok
JavaScriptVar
time-controlledVar
task-controlledVar
Number of characters per info text70
Number of message texts per message10
Message system
Number of alarm classes32
— Number of bit messages2.000
— Number of analog messages100
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message512
Number of process values per message10
Acknowledgment groupsVar
Message indicatorYok
Message bufferVar; Configured as alarm archive
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Parameter set management (recipes)
Number of parameter set types250
Parameter sets per parameter set type250
Entries per parameter set250
Size of internal parameter set memory5 MB
Parameter set memory expandableVar
Variables
Number of variables per device1.000
Number of variables per screen300
Limit valuesVar
StructuresVar
ArraysVar
Images
Number of configurable images300
FaceplateVar
Image objects
Number of objects per image600
Picture windowVar
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Scalable Vector Graphics (SVG)Var
Date/time fieldsVar
CheckboxVar
Option buttonVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Custom web displayYok
Geometric objectsVar
Complex image objects
Number of complex objects per screen5
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Parameter set displayVar
HTML browserVar
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project300
Number of entries per text list250
Number of graphics lists per project100
Number of entries per graphics list250
Archiving
Number of archives per device10
Number of entries per archive50.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardYok
— USB memoryVar
— EthernetYok
Security
Rol sayısı50
Number of function rights20; V18
Kullanıcı sayısı200
Password export/importVar
Central user administrationVar
Transfer (upload/download)
USBVar
EthernetVar
using external storage mediumVar
Process coupling
S7-1200Var
S7-1500Var
S7-200Yok
S7-300/400Var
Number of S7 connections8
LOGO!Var; as of WinCC Unified V20
SIMOTIONYok
OPC UA ClientVar
OPC UA sunucusuYok
Software Controller/Open ControllerYok
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyYok
SimulationVar
Device switchoverVar
Peripherals/Options
PeripheralsBarcode reader
PrinterYok
SIMATIC HMI MM memory card: Multi Media CardYok
SIMATIC HMI SD memory card: Secure Digital memory cardYok
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var
SIMATIC HMI USB stickVar
Network cameraYok
Mechanics/material
PlasticVar
Ölçüler
Width of the housing front326 mm
Height of housing front237 mm
Mounting cutout, width310 mm
Mounting cutout, height221 mm
mounting depth55 mm
Ağırlık
Weight (without packaging)2,08 kg
Weight (with packaging)2,77 kg
