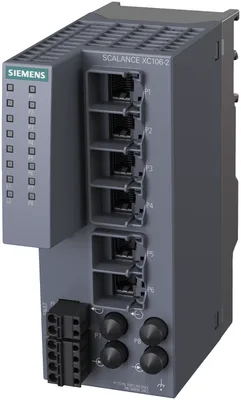

Siemens 6AG1106-2BB00-7AC2
SIPLUS NET SCALANCE XC106-2 based on 6GK5106-2BB00-2AC2 with conformal coating, -40…+70 °C, SCALANCE XC106-2, unmanaged IE switch, 6x 10/100 Mbps RJ45 ports, 2x 100 Mbps multimode BFOC, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply manual available as a download
product brand nameSIPLUS
product type designationXC106-2
transfer rate10, 100 Mbit/s
for multimode2
for signaling contact1
for power supply1
Ürün Hakkında
SIPLUS NET SCALANCE XC106-2 based on 6GK5106-2BB00-2AC2 with conformal coating, -40…+70 °C, SCALANCE XC106-2, unmanaged IE switch, 6x 10/100 Mbps RJ45 ports, 2x 100 Mbps multimode BFOC, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply manual available as a download
Siemens 6AG1106-2BB00-7AC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSIPLUS
product type designationXC106-2
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment6; RJ45
for multimode2
transmission method / of the optical interface100BaseFX
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4,8 W
consumed current / 1 / at rated supply voltage / maximum0,4 A
supply voltage / 1 / voltage range9,6... 31,2
consumed current / 1 / maximum0,4 A
ambient conditions
ambient temperature / in horizontal mounting position / during operation-40... +70 °C
installation altitude / at height above sea level / maximum5000 m
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna); class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (Severity degree 3); *
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust; *
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place on the unused interfaces during operation!
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; conformal coating, class A
protection class IPIP20
design, dimensions and weights
designcompact
width60 mm
height147 mm
depth125 mm
net weight0,85 kg
material / of the enclosurePolycarbonate (PC-GF10)
35 mm top hat DIN rail mountingVar
wall mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
product features, product functions, product components / general
number of automatically learnable MAC addresses2048
product functions / management, configuration, engineering
multiport mirroringYok
CoSVar
switch-managedYok
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
standards, specifications, approvals
CE markingVar
EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1Var
KC onayıVar
for EMC interference emissionEN 61000-6-4 (Class A)
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / other
E1 approvalYok
product functions / general
laser protection classLED Class 1
