Detayları Gör
Siemens
1FY2901-0EB00
MFR #1FY2901-0EB00
SKU #YLSJVRF7YVE9X
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

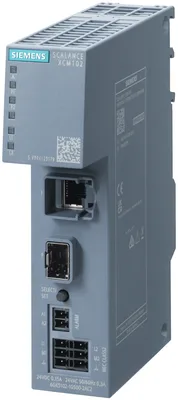

Siemens 6AG1102-1GS00-7AC2
SIPLUS NET SCALANCE XCM102 based on 6GK5102-1GS00-2AC2 ile conformal coating, -40…+70 °C, IE media konvertör unmanaged 1x 100/1000 Mbps RJ45 port, LED diagnostics, error sinyalizasyon kontak ile set pushbutton yedekli besleme besleme, securing collar, manuel as download mevcut.
transfer rate100 Mbit/s, 1000
for signaling contact1
for power supply1
for redundant voltage supply1
for signaling contact2-pole terminal block
for power supply2 x 3-pole terminal block
Ürün Hakkında
SIPLUS NET SCALANCE XCM102 based on 6GK5102-1GS00-2AC2 ile conformal coating, -40…+70 °C, IE media konvertör unmanaged 1x 100/1000 Mbps RJ45 port, LED diagnostics, error sinyalizasyon kontak ile set pushbutton yedekli besleme besleme, securing collar, manuel as download mevcut.
Siemens 6AG1102-1GS00-7AC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
transfer rate
transfer rate100 Mbit/s, 1000
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum2
for network components or terminal equipment1
for SFP / plug-in1; 100 Mbps ve 1000 Mbps SFP plug-in transceiver usable
for signaling contact1
for power supply1
for redundant voltage supply1
for network components or terminal equipmentRJ45 port
for signaling contact2-pole terminal block
for power supply2 x 3-pole terminal block
signal inputs/outputs
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
consumed current / 1 / at rated supply voltage / maximum0,15 A
power loss [W] / 1 / rated value2,5 W
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageAC
consumed current / 2 / at rated supply voltage / maximum0,3 A
power loss [W] / 2 / rated value5 W
product component / fusing at power supply inputVar
maximumdependent on the use of SFP plug-in transceiver
maximumdependent on the use of SFP plug-in transceiver
ambient conditions
notemaks. operating temperature dependent on the use of SFP plug-in transceiver
in horizontal mounting position / during operation / maximum70 °C
in horizontal mounting position / during operation / minimum-40 °C
during storage and transport85... -40 °C
installation altitude / at height above sea level / maximum5000 m
relative humidity / with condensation / according to IEC 60068-2-38 / maximum100 %
chemical resistance / to commercially available cooling lubricantsVar
conformity according to EN 60721-3-3Var
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var
conformity according to EN 60721-3-6Var
coating / for equipped printed circuit board / according to EN 61086Var
type of coating / protection against pollution according to EN 60664-3Var
type of test / of the coating / according to MIL-I-46058CVar
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar
protection class IPIP20
design, dimensions and weights
designcompact
width35 mm
height147 mm
depth123 mm
net weight0,22 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
standards, specifications, approvals
MTBF152 a
