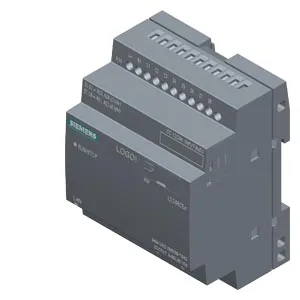

Siemens 6AG1052-2MD08-7BA2
SIPLUS LOGO! 12/24RCEO based on 6ED1052-2MD08-0BA2 with conformal coating -40...+70 °C startup -25 °C . logic module power supply / I/O: 12/24 V DC/relay, 8 DI (4 AI)/4 DO, without display memory 400 blocks, modularly expandable, Ethernet integrated web server, data log user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic units
based on6ED1052-2MD08-0BA2
with displayYok
Mountingon 35 mm DIN rail, 4 spacing units wide
12 V DCVar
24 V DCVar
İzin verilen aralık, alt sınır (DC)10,8 V
Ürün Hakkında
SIPLUS LOGO! 12/24RCEO based on 6ED1052-2MD08-0BA2 with conformal coating -40...+70 °C startup -25 °C . logic module power supply / I/O: 12/24 V DC/relay, 8 DI (4 AI)/4 DO, without display memory 400 blocks, modularly expandable, Ethernet integrated web server, data log user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic units
Siemens 6AG1052-2MD08-7BA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
based on6ED1052-2MD08-0BA2
Display
with displayYok
Installation type/mounting
Mountingon 35 mm DIN rail, 4 spacing units wide
Besleme gerilimi
12 V DCVar
24 V DCVar
İzin verilen aralık, alt sınır (DC)10,8 V
İzin verilen aralık, üst sınır (DC)28,8 V
Time switching clocks
Number400; Maks. 400, function-specific
Power reserve480 h
Dijital girişler
Dijital giriş sayısı8; Of which 4 can be used in analog mode (0 to 10 V)
Dijital çıkışlar
Dijital çıkış sayısı4; Relays
Short-circuit protectionYok; external fusing necessary
Çıkış akımı
for signal "1" permissible range for 0 to 55 °C, max.10 A
Switching capacity of contacts
— with inductive load, max.3 A
— with resistive load, max.10 A
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı B, yerleşim alanlarında kullanım içinVar; Radio interference suppression according to EN55011, Limit Value Class B
Çalışma ortam sıcaklığı
min.-40 °C; = Tmin; Startup @ -25 °C
maks.70 °C; Tmax; Tmax > +55 °C maks. load 1 A per relay veya maks. load 3 A per relay ve half the number of DIs (komşu nokta olmadan)
At cold restart, min.-25 °C; incl. condensation / frost permitted (no commissioning under condensation conditions)
Depolama/taşıma ortam sıcaklığı
min.-40 °C
maks.70 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik71,5 mm
Yükseklik90 mm
Derinlik58 mm
