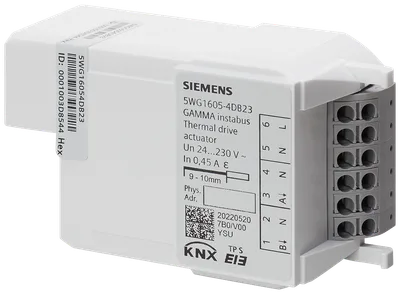

Siemens 5WG1605-4DB23

Ürün Hakkında

RL 605D23 - KNX Thermal drive actuator, 2 x AC 24...230 V, with 2 integrated room temperature controllers. For control of electrothermal valve drives for AC 24...230 V in heating/cooling systems via 2 noiseless semiconductor outputs With electronic protection of the outputs against short circuit and overload Rated current: 0.45 A per channel Max. inrush current (2 sec.): 2.75 A per channel Max. inrush current (2 min.): 0.75 A per channel Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm² 2 terminals per channel for connecting the electrothermal valve drives 2 terminals on the unit for supply of the valve voltage AC 24...230 V Bus-powered electronics Housing: plastic Built-in device for mounting in a separately to be ordered Control Module Box AP 118 or Room Control Box AP 641 Type of protection: IP 20

Siemens 5WG1605-4DB23

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
