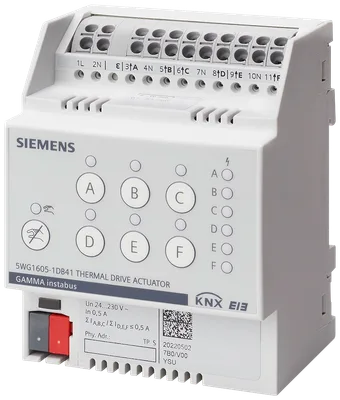

Siemens 5WG1605-1DB41

Ürün Hakkında

N 605D41 - KNX Thermal drive actuator, 6 x AC 24...230 V, with 6 integrated room temperature controllers. For control of electrothermal valve drives for AC 24...230 V in heating/cooling systems via 6 noiseless semiconductor outputs Electronic protection of the outputs against short circuit and overload Rated current: 0.5 A per channel and group of 3 outputs Max. inrush current (2 sec.): 3.5 A per channel and group of 3 outputs Max. inrush current (2 min.): 0.9 A per channel and group of 3 outputs Direct operation per channel for opening and closing the valve and activating direct operation Red LED per channel to indicate valve open or closed and status of the control value Red error LED per channel to indicate overload/short circuit and pover voltage failure Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm² 2 terminals per channel for connecting the electrothermal valve drives 2 terminals on the unit for supply of the valve voltage AC 24...230 V Bus-powered electronics Housing: plastic, color RAL 7035, N-system DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715 Type of protection: IP 20

Siemens 5WG1605-1DB41

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
