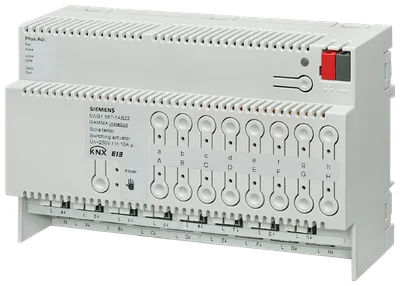

Siemens 5WG1567-1AB22

Ürün Hakkında

N 567/22 - KNX Switch actuator, 16 x AC 230 V, 10 A. One potential-free relay contact per output channel Electronics powered via an integrated power supply unit for AC 230 V Pushbutton for switching between bus operation and local operation A yellow LED indicating local operation 1 red LED per output channel to indicate switch status One pushbutton per output channel to activate the output through a UM-function in local operating mode Operational with an AC 230 V supply, (even with no bus voltage and faulty or not activated bus communication) Choice between identical or individually parameterized outputs Operating mode selectable for each channel (normal operation, time switch operation) Adjustable switching on/off delay Selectable logic link (AND/OR) between two communication objects and presettable logic operator for bus voltage return Possibility to add an additional night operation object per output channel for time limited activation of output (lighting) at night Selectable warning signal prior to imminent switching off in form of three times short off/on switching (flashing) Possibility to add one additional status indicator object per output channel, sending of status objects on request and/or automatically after change Possibility to add additional object to drive the integrated 8-bit scene controller, integrated 8 bit scene control and linking each output channel to up to 8 scenes Unchanged switch state for all output channels in case of power failure Selectable switch state after return of power for each output channel Integrated bus coupling units, bus connection via bus terminal or contact system to data rail, only 50% of standard busload Modular installation devices for mounting on TH35 EN 60715 mounting rail 16 Floating relay contacts Rated contact current 10 A

Siemens 5WG1567-1AB22

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
