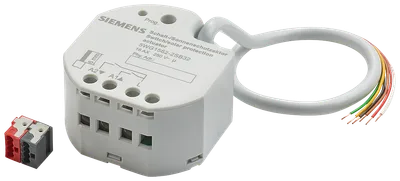

Siemens 5WG1562-2SB32

Ürün Hakkında

UP 562S32 - KNX Switch/solar protection actuator 2 x AC 230 V, ∑ 16 A. One relay contact per output Rated contact operating voltage: AC 230 V Rated contact frequency: 50/60 Hz Rated contact current: ∑ 16 A Screw terminals for connection of untreated single-core conductors, stranded without conductor sleeve 0.5 to 4 mm², stranded with conductor sleeve 0.5 to 2.5 mm² 3 binary inputs for potential-free contacts, determination of switching status via voltage generated in the device Poll voltage of the inputs: approx. 5 V Max. 10 m length of connecting cables, preferably J-Y(St)Y, pre-assembled YY6x0.6 Bus-powered electronics Integrated bus coupling unit Mounting in appliance boxes according to DIN 49073 or in mounting case M 592/01 (accessories)

Siemens 5WG1562-2SB32

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
