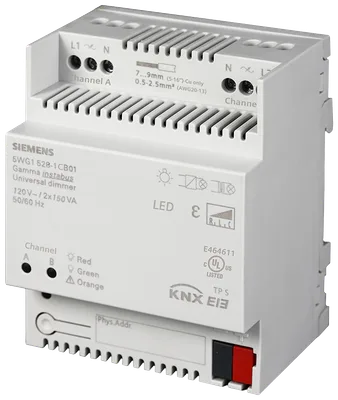

Siemens 5WG1528-1CB01

Ürün Hakkında

N 528C01 - KNX Universal dimmer 2 x 150 VA, AC 120 V. Two outputs for switching and dimming resistive, inductive or capacitive loads Automatic adjustment to leading edge or trailing edge control, depending on the type of load Rated operational voltage AC 120 V Rated frequency 50 / 60 Hz Rated power at +35°C ambient temperature: 150 VA per output or 250 VA for single output usage, without any minimal load per output Electronic protection of each output against overload, short circuit and temperature rise Screw terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm², AWG 20-13 Bicolor LED for indicating the switch status (red = on, green = off) or an error (orange, blinking) per output Bus-powered electronics Integrated bus coupling unit Bus connection via bus terminal block As a device for DIN-rail mounting on a TH35 mounting rail according to DIN EN 60715

Siemens 5WG1528-1CB01

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
