Siemens 5WG1527-4CB23

Ürün Hakkında

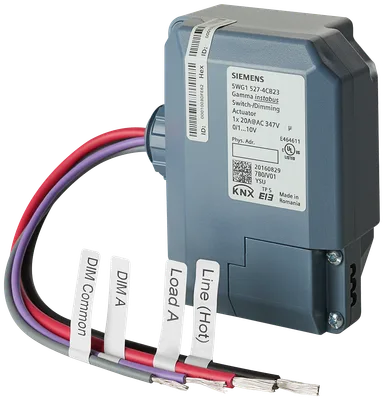

JB 527C23 - KNX Switch/dim actuator, 1 x AC 277 V, 20 A, 1...10 V. Protruding wires stranded AWG 12 A phase connection for an output that is equipped with a relay contact per output as a switching element Contact rated operational voltage AC120 V, AC 230 V, AC 277 V, AC 347 V Contact rated operational voltage AC / DC 24 V Contact rated current according to DIN EN 60669-1: 16 A / 20 A (resistive load) Fluorescent lamp load according to DIN EN 60669-1: 16 AX / 20 AX (200 µF) at AC 230 V Bus-powered electronics Integrated bus coupling unit Bus connection via bus terminal Red LED for display of the activation of the addressing mode as well as the operational readiness Housing: plastics For installation in 4" x 4" Junction box (UL/NEMA) Degree of protection IP 20

Siemens 5WG1527-4CB23
