Siemens 5WG1526-4CB23

Ürün Hakkında

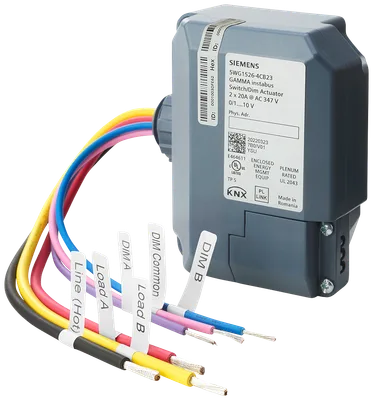

JB 526C23 - KNX Switch/dim actuator, 2 x AC 277 V, 20 A, 1...10 V. Protruding wires stranded AWG 12 A phase connection for an output that is equipped with a relay contact per output as a switching element Contact rated operational voltage AC 120 V, AC 230 V, AC 277 V, AC 347 V Contact rated operational voltage AC/DC 24 V Contact rated current according to DIN EN 60669-1: 16 A / 20 A (resistive load) Fluorescent lamp load according to DIN EN 60669-1: 16 AX / 20 AX (200 µF) at AC 230 V Bus-powered electronics Integrated bus coupling unit Bus connection via bus terminal Red LED for display of the activation of the addressing mode as well as the operational readiness Housing: plastics For installation in 4" x 4" Junction box (UL/NEMA) Degree of protection IP 20

Siemens 5WG1526-4CB23

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
