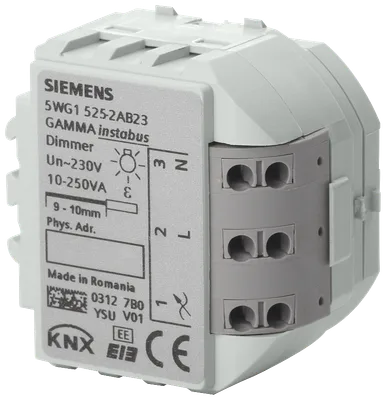

Siemens 5WG1525-2AB23

Ürün Hakkında

RS 525/23 - KNX Universal dimmer 1 x AC 230 V, 10...250 VA, (R,L,C load). Output for switching and dimming resistive, inductive or capacitive loads Automatic adjustment to leading edge or trailing edge control, depending on the type of load Rated frequency 50...60 Hz Electronic protection of the output against overload, short circuit and temperature rise Bus-powered electronics Integrated bus coupling unit, Bus connection via bus terminal block Type of protection: IP 20 Rated operational voltage AC 230 V Rated power at +35°C ambient temperature: 10...250 VA Screw-less terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm2 With bus connection module Modular installation device for mounting in AP 118 automation module box or AP 641 room control box

Siemens 5WG1525-2AB23

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
