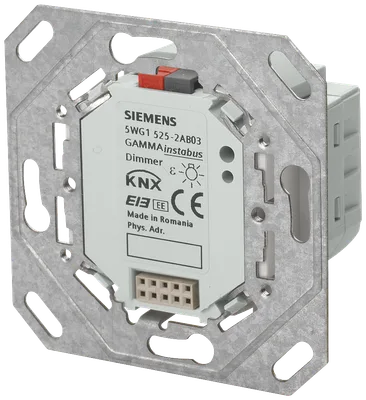

Siemens 5WG1525-2AB03

Ürün Hakkında

UP 525/03 - KNX Universal dimmer 1 x AC 230 V, 10 ... 250 VA, with mounting frame and BTI interface. One output for switching and dimming resistive, inductive or capacitive loads Automatic adjustment to leading edge or trailing edge control, depending on the type of load Rated operational voltage AC 230 V Rated frequency 50...60 Hz Rated power at +35°C ambient temperature: 10...250 VA Electronic protection of the output against overload, short circuit and temperature rise Screwless terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5...2.5 mm² Bus-powered electronics Integrated bus coupling units, bus connection via bus terminal For insertion in flush-mounting switch and socket boxes 60 mm in diameter and 60 mm deep

Siemens 5WG1525-2AB03

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
