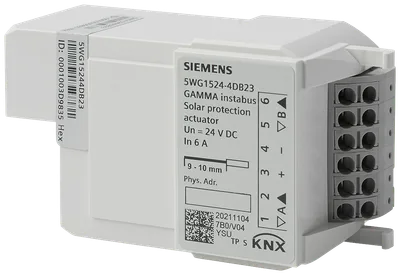

Siemens 5WG1524-4DB23

Ürün Hakkında

RL 524D23 - KNX Solar protection actuator 2 x DC 24 V, 6 A. For control of drives with a DC motor for DC 24 V Two relays per output for polarity switching of the output voltage Rated contact operating voltage DC 24 V Rated contact current: 6 A Electronics for detection of the actuation of an electromechanical and electronic limit switches Automatic travel time determination via current detection Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm² Two terminals per actuator channel for motor connection (up, down) Two terminals on the device to connect the DC 24 V (+/-) to supply the load circuits Bus-powered electronics Housing: plastic As built-in device for mounting in a separately to be ordered Control Module Box AP 118 Type of protection: IP 20
