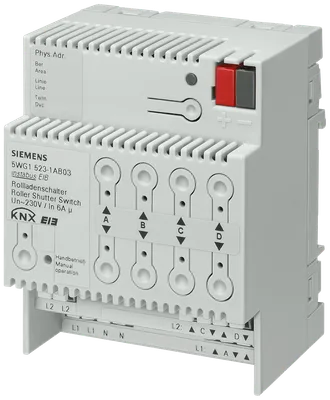

Siemens 5WG1523-1AB03

Ürün Hakkında

N 523/03 - KNX Roller shutter actuator, 4 x AC 230 V, 6 A. Rated contact current 6 A LED for status indication per output Direct operation (local operation) Electrically interlocked relays (for reversing direction of rotation) Transmitting status per channel Status Position Sonnenschutz 8 Bit Travel lock (e. g. for cleaning the outer shutter/blinds) Alarm:Move to safety position, locking in this position for as long as alarm is active Individual or shared configuration of actuator channels Adaptation of objects and functions to drive type Sun protection control (up/down): travel to end position, stopping, stepwise adjustment Integrated bus coupling units Bus connection via bus terminal or contact system to data rail Modular installation devices for mounting on TH35 EN 60715 mounting rail 4 channels (one up and one down each) Rated contact voltage AC 230 V, 50 Hz Integrated 1-bit scene control, 2 Scenes to be integrated per channel Integrated power supply unit for the electronics, connected to AC 230 V Separate raising/lowering protection

Siemens 5WG1523-1AB03

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
