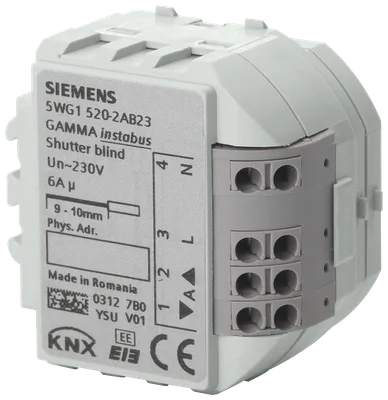

Siemens 5WG1520-2AB23

Ürün Hakkında

RS 520/23 - KNX Shutter Blind Actuator RS, 1 x AC 230 V, 6 A. 1 channel Electrically interlocked relays to reverse the direction of rotation Integrated electronics for detection of the actuation of an electromechanical limit switch and with auto-calibration of the travel time from one limit switch to the other Bus-powered electronics Integrated bus coupling unit, Bus connection via bus terminal block Type of protection: IP 20 For the separate control per actuator channel of a sun protection‚ damper‚ door or window drive with a motor for AC 230 V and electromechanical limit switches Screw-less terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm 2 With bus connection module Modular installation device for mounting in AP 118 automation module box or AP 641 room control box

Siemens 5WG1520-2AB23

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
