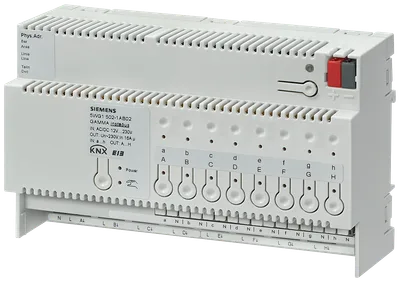

Siemens 5WG1502-1AB02

Ürün Hakkında

N 502/02 - KNX Combi switching actuator 8 x AC 230 V, 16 A, 8 x binary inputs. 8 inputs AC/DC 12...230 V 8 relay contact outputs Rated contact voltage AC 230 V Rated contact operating current 16 A, p.f. = 1 Electronics power supply via an integrated power supply unit for AC 230 V Device functional even without bus connection or if bus voltage absent or bus communication interrupted or not yet activated Push button to switch between bus and direct mode Push button for each output to switch the output in direct mode via a toggling function by a short actuation and for changing the output mode between remote control relay and time switch relay by holding down the push button for some seconds Device preset at the factory for direct switching of an output through a toggling function via the input of the same name Selectable function for each input when using the Engineering Tool Software (ETS): Switching status / binary value transmission Switching, short / long operation Single button dimming, single button sun protection control, 1-button group control (sequence control) 1-bit scene control 8-bit scene control, 8-bit value, edge-triggered, 8-bit value, short / long operation 16-bit floating point value, edge-triggered, 16-bit value, short / long operation, 16-bit value, edge-triggered, 16-bit floating point value, short / long operation Selectable function for each pair of inputs: 2-button dimming with stop telegram or with cyclical sending 2-pushbutton shutter/blind control Selectable blocking / releasing of each input via a corresponding blocking object Sending of the input objects after a change of status Selectable logic operation (AND/OR) for one input with a further communication object and with variable start value of the logic operation at bus voltage recovery Setting by means of the ETS, whether all outputs are to be configured identically or individually Selectable mode for each output (normal mode, time switch mode) Optional addition of a night mode object for each output for time-limited switching On of the output (and hence the illumination) at night Variable On and Off delay times for each output Variable On period in night mode or in time switch mode Selectable warning signal prior to imminent switching-off by means of three-times short off and on switching (flashing) in night mode or in time switch mode Optional status object per output for status reporting Sending of status objects on request and/or automatically after a change Integrated 8-bit scene control and linking of each output with up to 8 scenes Selectable switching state for each output at mains or bus power failure as well as after bus or mains voltage recovery Integrated bus coupling unit with only half a standard bus load Bus connection via bus terminal or contact system to data rail Modular installation devices for mounting on TH35 EN 60715 mounting rail

Siemens 5WG1502-1AB02

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
