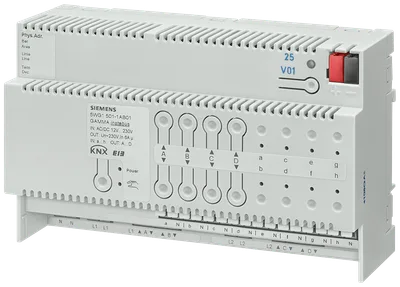

Siemens 5WG1501-1AB01

Ürün Hakkında

N 501/01 - KNX Combination blind actuator, 4 x AC 230 V, 6 A, 8 x binary inputs. 8 inputs for DC or AC in the range from 12 to 230 V 8 relay contact outputs locked in pairs against each other for controlling 4 × AC 230 V sunblind drives Contact rated voltage AC 230 V Contact rated current 6 A, p.f. = 1 Electronics powered by a AC 230 V integrated power supply Device functional even without bus connection or if the bus communication fails Preset on delivery for direct output control for each blind button function via momentary contact switches connected to the inputs Key for switching between bus and direct mode Button for each relay contact output, for switching the output in direct mode Selectable function for each input when using the ETS: Switching status, send binary value Switching on leading edge, switching Short/Long 1-pushbutton dimming, sunblind control, group control 1-bit/8-bit scene control 8-bit/16-bit value leading edge, Short/Long 16-bit floating point value leading edge, Short/Long Or for each pair of inputs: Acting directly on the corresponding outputs as blind button 2-button dimming with stop telegram or with cyclical sending 2-pushbutton sunblind control Selectable blocking of each input via a corresponding blocking object Sending of input objects after change Selectable cyclical input object sending Individual or shared configuration of actuator channels Communication objects for each blind channel for driving the sun protection into the end positions or for stopping the procedure and adjusting the blind slats in steps Communication objects for setting position of slats and blinds in percentage information Automatic opening of the blind slats to a preconfigured nominal setting after uninterrupted driving down of the blind from the top to the bottom end position, with integrated 1-bit scene control for storing and calling up (reproduction) of 2 interim blind and slat settings Integrated 1-bit/8-bit scene control, 8 scenes can be integrated per channel Optional "Sun" object for integration in a sunlight tracking control system Differentiation between automatic and manual mode and with automatic switchover from automatic to manual mode for the channel in question by pressing a bus button for manual control of the corresponding sun protection Manual mode taking precedence over automatic position commands Optional central command for each device or each channel for switching the relevant channels to automatic mode and driving the sun protection into the up or down end position Alarm: move to safety position, Locking in this position for as long as alarm is active Travel lock (e. g. for cleaning the outer shutter/blinds) Status objects for each channel for querying or for automatic sending of sun protection and slat settings as a percentage value Optional status objects for reporting that the up or down position has been reached Integrated bus coupling unit, Bus connection via bus terminal or contact system to data rail Modular installation devices for mounting on TH35 EN 60715 mounting rail

Siemens 5WG1501-1AB01

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
