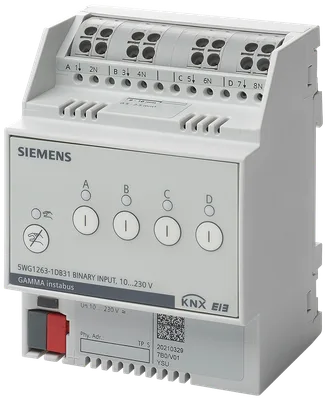

Siemens 5WG1263-1DB31

Ürün Hakkında

N 263D31 - KNX Binary input, 4 x AC/DC 10...230 V. Per input one AC or DC contact in the range of 10...230 V Per input direct operation function on the device for simulation of input status and indication oft the input status via LED Button on the device front for deactivation of the direct mode operation and LED to indicate activation direct mode operation Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm² Max. 100 m length of the connection lines with twisted pair cables Bus-powered electronics Housing: plastic, color RAL 7035 (light grey), N-system DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715 Type of protection: IP 20 Max. width 4 MW (1 MW = 18 mm)

Siemens 5WG1263-1DB31

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
