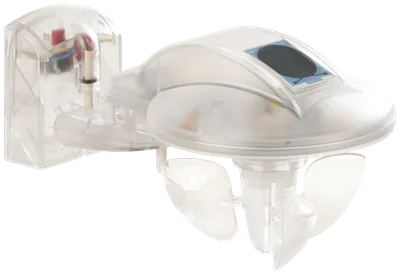

Siemens 5WG1257-3AB61

Ürün Hakkında

AP 257/61 - KNX Weather station. Sensor for measuring wind speed, measuring range 2-30 m/s Three independent brightness sensors, measuring range 1-100000 Lux Consideration of up to two external brightness sensors Outdoor temperature sensor, measuring range -30 ... +60°C Heated precipitation sensor Transmission of date and time via the bus Transmission of GPS position via the bus Transmission of all measurement readings via the bus Monitoring of all measurement readings Input of the geographical location of the installation site via the entry of longitude and latitude or automatic detection via GPS Calculation and transmission of the angle data (azimuth and elevation) for current position of the sun Consideration of the alignment of up to 8 facades and automatic activation / deactivation of the solar protection of a facade during the time in which the sun shines on the respective facade Sun tracking control of the slats position for solar protection, so that no direct sunshine, but as much diffuse daylight as possible reaches the room Safety alarm for deactivating the solar protection, initiated by an external safety object or by logical AND/ OR operations of the measured weather data 4 threshold switches, independant of the weather data, each with 2 output objects 6 logical AND, OR or XOR operations,independant of the weather data, of respectively up to 4 input objects and each with 2 output objects External power supply of the heating for the precipitation sensor via 24 V DC, 210 mA Feed of the additional auxiliary power supply via the white / yellow twisted pair of the bus cable Integrated bus coupling unit, bus connection via a bus terminal block Compact unit for mast or wall mounting, including mast fixture for diameter 48-60 mm

Siemens 5WG1257-3AB61

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
