Siemens 5WG1152-1AB01

Ürün Hakkında

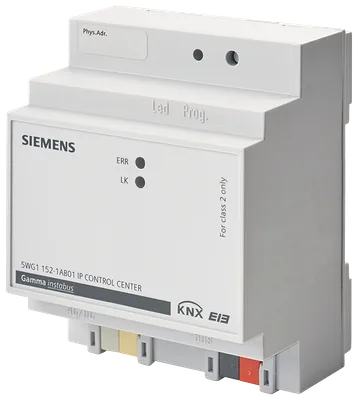

N 152/01 - KNX IP Control Center. Visualisation controller for full-graphic visualizations on web-compatible end devices such as PCs, tablets and smart phones with a standard web browser. For communication between KNX devices and PCs and, in connection with a LAN-/WLAN modem or DSL router, for remote access to a KNX installation, for usage as an interface for the ETS 3/4/5 and as an interface for a visualization, with usage of the KNXnet/IP protocol, with the following simultaneously usable functions: Web server for operating and monitoring up to 1250 statuses and values transmitted by the KNX network, which can be displayed using a standard browser on PCs, tablets, or smartphones connected to the IP network Special web-configuration page for a firmware update, to set the IP configuration, SMTP server, security settings, password protection, certificates, Sonos module, API connection and restart Graphical web editor for a creation of fully graphical visualization with control and display elements, configurable in various styles Smart editor for the creation of a visualisation, tuned for mobile browsers, smartphones, tablets with control and display elements, configurable in various styles and layouts Annual timer, with astronomical calendar, for 300 time switch schedules with up to 30 time switch commands per time switch schedule Scene module with up to 5000 scenes or events Chart module for recording and reporting of up to 10 data points Monitoring module for monitoring and storage of up to 1000 events into a ring buffer IP interface for control of up to 20 IP-devices via up to 20 TCP/UDP commands per IP-device Fully graphical logic module with up to 1000 logic functions Alarm function for up to 250 different alarms E-mail function, with up to 20 contacts, for transmission of chart data from chart module, logged data from monitoring module or alarm data Data point management for viewing, managing, editing and categorizing all available data points Module for controlling SONOS loudspeakers Module for controlling the Philips HUE LED lighting system Ethernet interface 10/100 Mbits/s with RJ45 socket for connection to the IP network using the Internet Protocol 2 LED displays for IP connection/communication and for error messages Integrated bus connector and bus terminal for connection to a KNX network Power supply of the electronics by an external voltage source for AC/DC 24 V, 50 mA Series installation device for mounting on support rails TH35 DIN EN 60715

Siemens 5WG1152-1AB01

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
